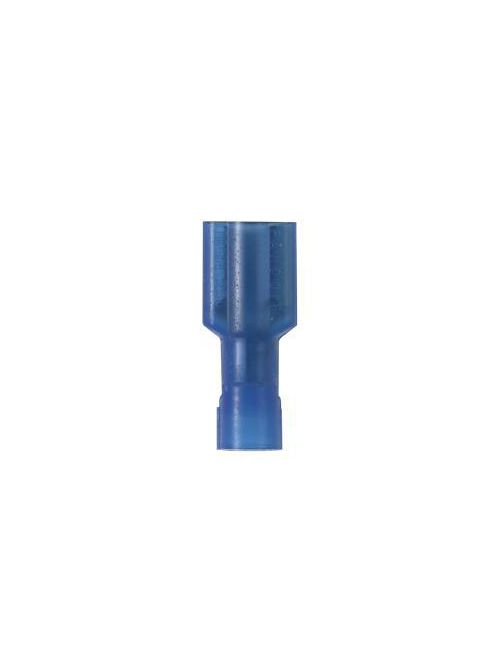

PAN EDNF14-250FIB-Q StrongHoldFemDI
Product image thumbnail 0
Product image thumbnail 1
$34.77/c (100 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Order in multiples of 25 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # EDNF14-250FIB-Q
North Coast Part # 1679050

Specifications

  • Product Segment: IEI
  • UNSPSC: 39121409
  • Disconnect Type: Female Disconnect
  • Insulation Type: Nylon - Fully Insulated
  • Insulation Material: Nylon-Fully Insulated
  • Minimum Wire Size (AWG): #16
  • Maximum Wire Size (AWG): #14
  • Maximum Copper Conductor Size (AWG): #14
  • Minimum Copper Conductor Size (AWG): #16
  • Wire Strip Length (mm): 7.1
  • Wire Strip Length (In.): 0.28
  • Tab Size (mm): 6.3
  • Tab Size (In.): 0.25
  • Standards Met: UL, CSA
  • Maximum Voltage (V): 600
  • Finish/Coating: Tin-Plated
  • Base Material: Brass
  • Color Code: Blue
  • Flammability Rating: NA
  • Maximum Operating Temperature (°C): 125
  • Maximum Operating Temperature (°F): 257
  • Sub Brand: StrongHold™
  • Maximum Metric Conductor Size (mm²): 2.5
  • Minimum Metric Conductor Size (mm²): 1.5
  • Maximum Wire Insulation Diameter (mm): 4.1
  • Maximum Wire Insulation Diameter (In.): 0.16
  • Overall Height (In.): 0.22
  • Overall Height (mm): 5.6
  • Overall Length (In.): 0.84
  • Overall Length (mm): 21.3
  • Overall Width (mm): 8.9
  • Overall Width (In.): 0.35
  • Seam Type: Butted
  • Packaging Type: NA
  • Product Type: Loose Piece Disconnect
  • For Use With: CT-100A, CT-160, CT-260, CT-600A (CT-520CH), CT-1525, CT-2500 (CT-2520CH)
  • Maximum Voltage (kV): 0.6

Packaging Details

  • UPC: 61305636624
  • GTIN Package: 00613056366244
  • Standard Package Volume Ft3: 0.0103
  • Standard Package Weight Pounds: 0.0500
  • Std Package Height In: .65
  • Std Package Height MM: 16.51
  • Std Package Length In: 4.55
  • Std Package Length MM: 115.57
  • Std Package Width In: 3.2
  • Std Package Width MM: 81.28
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 25
  • GTIN Carton: 50613056366249
  • Standard Carton Volume Ft3: 0.0103
  • Standard Carton Weight Pounds: 0.5000
  • Std Carton Height In: 4.4
  • Std Carton Height MM: 111.76
  • Std Carton Length In: 9.15
  • Std Carton Length MM: 115.57
  • Std Carton Width In: 4.35
  • Std Carton Width MM: 110.49
  • Std Ctn Qty: 250
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: MX
  • RoHS Compliant: Compliant
  • EAN: 00613056366244
  • REACH Status: False
  • Mercury Content Indicator: No
  • Hazardous Material Flag: N
  • Min Order Qty: 25

Overview

UPC 61305636624
GTiN 00613056366244
Finish Tin-Plated
Width 0.35 in
Color Blue
Barrel Type Butted Seam
Height 0.22 in
Country of Origin MX
Pkg Qty 25
Family Brand Name Panduit
Carton Qty 250
Max Operating Temperature 257 degrees F
Overall Length 0.84 in
Color Coding Blue
Sub Brand StrongHold
Type Loose Piece Disconnect
Material Brass
Wire Size 14
TC Connection Funnel Entry
UNSPSC 39121409
