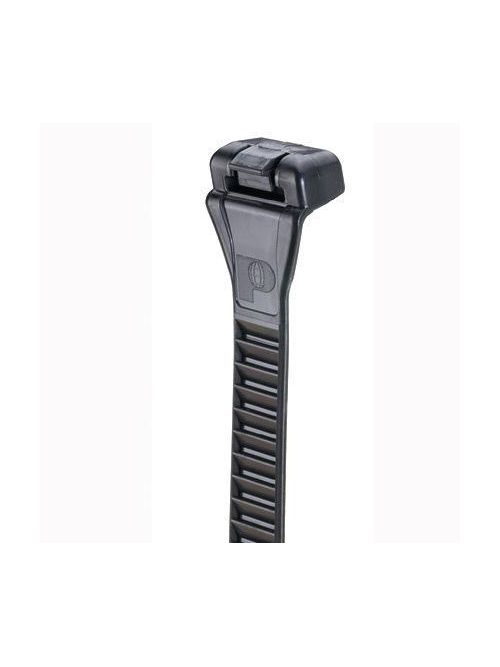

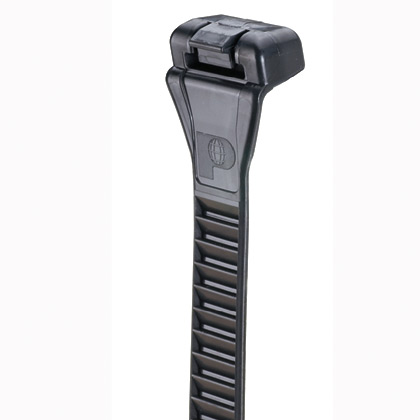

PAN ERT2M-C20 ElastoCableTie,TPU,Mi
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$139.39/c (100 ea)
Usually ships within 6 to 10 Days
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # ERT2M-C20
North Coast Part # 486026

Specifications

  • Product Segment: DEFAULT
  • UNSPSC: 39121703
  • Product Type: Cable Tie
  • Color: Black
  • Sub Brand: NA
  • Environment: Indoor/Outdoor
  • For Use With: GTS-E, GS2B-E, PTS
  • Material: Thermoplastic Poly-Urethane (TPU)
  • Resistance Properties: Heat Resistant
  • Maximum Bundle Diameter (In.): 2.35
  • Maximum Bundle Diameter (mm): 59.7
  • Maximum Installation Temperature (°F): 220
  • Maximum Installation Temperature (°C): 104
  • Maximum Operating Temperature (°F): 219
  • Maximum Operating Temperature (°C): 104
  • Minimum Bundle Diameter (mm): 9.6
  • Minimum Bundle Diameter (In.): 0.38
  • Minimum Installation Temperature (°C): -20
  • Minimum Installation Temperature (°F): -4
  • Minimum Loop Tensile Strength (N): 80.06
  • Minimum Loop Tensile Strength (lb): 18
  • Minimum Operating Temperature (°F): -71
  • Minimum Operating Temperature (°C): -57
  • Overall Length (mm): 215.9
  • Overall Length (In.): 8.5
  • Body Width (In.): 0.84
  • Body Width (mm): 21.4
  • Body Thickness (mm): 2.3
  • Body Thickness (In.): 0.09
  • Standards Met: NEBS GR-63-CORE, RoHS Complaint

Packaging Details

  • UPC: 07498308075
  • GTIN Package: 00074983080755
  • Standard Package Volume Ft3: 0.1030
  • Standard Package Weight Pounds: 1.5300
  • Std Package Height In: 2.65
  • Std Package Height MM: 67.31
  • Std Package Length In: 11.9
  • Std Package Length MM: 302.26
  • Std Package Width In: 7.9
  • Std Package Width MM: 200.66
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 100
  • GTIN Carton: 50074983080750
  • Standard Carton Volume Ft3: 0.1030
  • Standard Carton Weight Pounds: 15.3000
  • Std Carton Height In: 7.05
  • Std Carton Height MM: 179.07
  • Std Carton Length In: 22.9
  • Std Carton Length MM: 302.26
  • Std Carton Width In: 10.5
  • Std Carton Width MM: 266.7
  • Std Ctn Qty: 1000
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: CR
  • RoHS Compliant: Compliant
  • EAN: 00074983080755
  • REACH Status: False
  • California Pro65 Cancer: No
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Lead Content Indicator: N
  • Restricted Use of Hazardous Substances: N
  • Hazardous Material Flag: N
  • Min Order Qty: 100

Overview

UPC 07498308075
Item Long Description Panduit Elastomeric Cable Ties are built with a locking head design to increase productivity. Thermoplastic polyurethane bundles and protects network data without over-tensioning. They are not only flexible and elastic, but fully releasable to accommodate frequent moves, adds and changes. And, with weather- and UV-resistance, as well as a 94V-0 flammability rating, you can trust them to reliably last in both indoor and outdoor environments. Miniature cross section, 8.5L (216mm), Tensile Strength: 80, Bundles up to 2.4 (60mm), Black, 100pc.
GTiN 00074983080755
Width 0.5 in
Color Black
Type Cable Tie
Thickness 2.3 mm
Material Thermoplastic Poly-Urethane (TPU)
Applications Bundle high performance communication cabling
Country of Origin Costa Rica
Pkg Qty 100
Family Brand Name Panduit
Max Operating Temperature 219 degrees F
Overall Length 8.5 in
Min Operating Temperature -71 degrees F
Tensile Strength 80.06 lb
Bundle Diameter 59.7 mm
Sub Brand Elastomeric
CA Prop65 Warning No
UNSPSC 39121703
