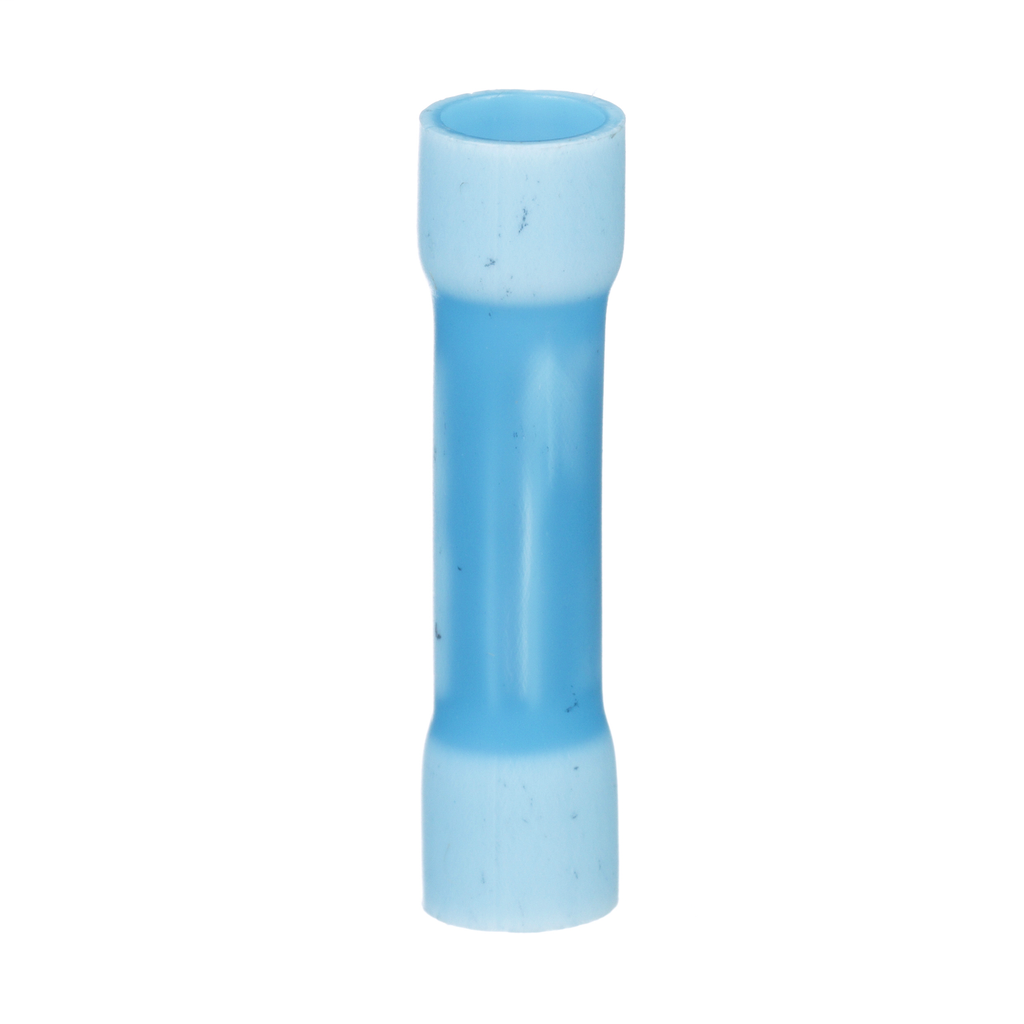

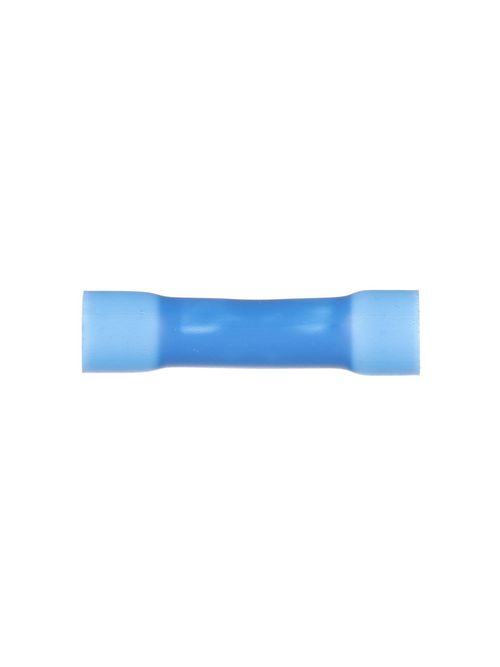

PAN ESV14BX-Q StrongHoldButtSpl,Vyl
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$22.29/c (100 ea)
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # ESV14BX-Q
North Coast Part # 1685115

Specifications

  • Product Segment: IEI
  • Product Type: Butt Splice
  • Maximum Copper Conductor Size (AWG STR): #14
  • Maximum Copper Conductor Size (AWG): #14
  • Maximum Copper Conductor Size (AWG SOL): #14
  • Minimum Copper Conductor Size (AWG): #16
  • Minimum Copper Conductor Size (AWG SOL): #16
  • Minimum Copper Conductor Size (AWG STR): #16
  • Minimum Aluminum Conductor Size (AWG): NA
  • Maximum Aluminum Conductor Size (AWG): NA
  • Minimum Metric Conductor Size (mm²): 1.5
  • Maximum Metric Conductor Size (mm²): 2.5
  • Copper Conductor Size (AWG): #16 - #14
  • Class G Copper Flex Conductor Size (AWG): NA
  • Class M Copper Flex Conductor Size (AWG): NA
  • Class I Copper Flex Conductor Size (AWG): NA
  • Class K Copper Flex Conductor Size (AWG): NA
  • Class H Copper Flex Conductor Size (AWG): NA
  • Aluminum Conductor Size (AWG): NA
  • Barrel Type: Funnel Entry
  • Maximum Voltage (V): 600
  • Maximum Voltage (kV): 0.6
  • CSA Temperature Rating (°C): 105
  • Base Material: Copper
  • Insulation Material: Vinyl
  • Standards Met: UL Listed, CSA Certified
  • Barrel Length (mm): 26.4
  • Barrel Length (In.): 1.04
  • Finish/Coating: Tin-Plated
  • Color Code: Blue
  • Overall Length (In.): 1.04
  • Overall Length (mm): 26.4
  • Wire Strip Length (In.): 0.31
  • Wire Strip Length (mm): 7.9
  • Sub Brand: StrongHold

Packaging Details

  • UPC: 61305636616
  • GTIN Package: 00613056366169
  • Standard Package Volume Ft3: 0.0103
  • Standard Package Weight Pounds: 0.0500
  • Std Package Height In: .75
  • Std Package Height MM: 19.05
  • Std Package Length In: 4.55
  • Std Package Length MM: 115.57
  • Std Package Width In: 3
  • Std Package Width MM: 76.2
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 25
  • GTIN Carton: 50613056366164
  • Standard Carton Volume Ft3: 0.0103
  • Standard Carton Weight Pounds: 0.5000
  • Std Carton Height In: 4.35
  • Std Carton Height MM: 110.49
  • Std Carton Length In: 9.1
  • Std Carton Length MM: 115.57
  • Std Carton Width In: 4.35
  • Std Carton Width MM: 110.49
  • Std Ctn Qty: 250
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: MX
  • RoHS Compliant: Compliant
  • EAN: 00613056366169
  • USA HS Code: 8536904000000000000000
  • USA HS Code 10digit: 8536904000
  • REACH Status: False
  • Mercury Content Indicator: No
  • Hazardous Material Flag: N
  • Min Order Qty: 25

Overview

UPC 61305636616
GTiN 00613056366169
Finish Tin-Plated
Color Blue
Barrel Type Funnel Entry
Material Copper
Country of Origin MX
Pkg Qty 25
Family Brand Name Panduit
Carton Qty 250
Overall Length 1.04 in
Barrel Length 1.04 in
Color Coding Blue
Sub Brand StrongHold
Type Butt Splice
Wire Size 16-14 AWG
TC Connection Expanded
