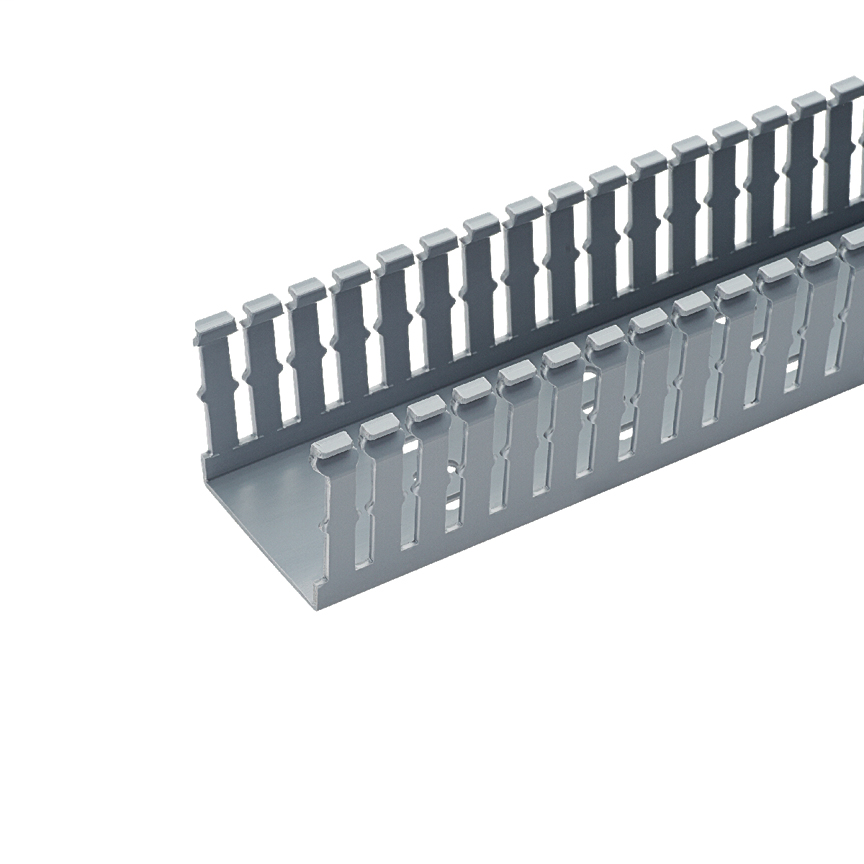

Panduit F1X1.5LG6 1 x 1.5 Inch x 6 Foot Light Gray PVC Slotted Duct

$6.56/ea

In Stock | 12 available at 1 location

Adding...

Already a Customer? Log in to view your pricing

Specifications

Product Segment: IEI
Product Type: Base Wiring Duct
Application: Narrow slot/finger design provides more slots to fit the spacing of high-density terminal block applications
Color: Light Gray
Cover Part Number: C1LG6
Flammability Rating: UL94V-0
Includes: Base Only
Standards Met: RoHS Compliant, UL Recognized, CE Compliant; CSA Approved
Material: PVC
Mount Method: Mounting Holes
Measurement System: Imperial
Wiring Duct Style: Narrow Slot Wiring Duct
Wiring Duct Type: F
Overall Height (mm): 41.1
Overall Height (In.): 1.62
Overall Length (m): 1.8
Overall Length (ft.): 6
Overall Width (In.): 1.25
Overall Width (mm): 32
Sub Brand: Panduct®
Slot Width (mm): 5
Slot Width (In.): 0.2

UPC	07498337507
Item Long Description	The F1X1.5LG6 Panduct Lead-Free PVC Narrow Slot Wiring Duct features a narrow slot/finger design that closely matches the spacing of high-density components. Upper and lower scorelines allow for easy finger/sidewall section removal. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122F (50C). Mounting holes provided. Lead-free PVC. 1.62" x 1.25" (41.1 mm x 31.8 mm) and 6' (1.83 m) long. Cover sold separately. Color Light Gray. 6 per package.
GTiN	00074983375073
Length	6 ft
Width	1 in
Size	32.0 x 41.1 mm
Color	Light Gray
Type	Type F
Thickness	0.07 IN
Material	Lead-Free PVC
Applications	For Indoor use
Mounting Type	Standard Mounting Hole
Depth	1-1/2 in
Height	1.62 in
Country of Origin	US
Pkg Qty	6
Family Brand Name	Panduit
TC Connection	Standard Mounting Holes
Overall Length	6 ft
Slot Size	5 mm
Sub Brand	Panduct
