Manufacturer Panduit
Mfg Catalog # F1X1LG6-A
North Coast Part # 545096


  • UNSPSC: 39131712
  • Product Segment: IEI
  • Application: (1) Type C Wiring Duct Cover with Protective Film Reduces Scrap and Labor Costs by Protecting the Surface during Storage, Handling, and Installation
  • Product Type: Base Wiring Duct
  • Note: Adhesive tape is not meant for permanent mounting of wiring duct. One mounting hole on each end will be exposed for permanent mounting with fasteners. For best results, wiring duct should be applied to clean, dry, grease-free surfaces. We recommend the surface be cleaned prior to wiring duct installation
  • Color: Light Gray
  • Cover Part Number: C1LG6
  • Flammability Rating: UL94 V-0
  • Standards Met: RoHS Compliant, UL Recognized, CE Compliant
  • Material: Lead-Free PVC
  • Mount Method: Mounting Holes with Adhesive
  • Measurement System: Metric
  • Wiring Duct Style: Narrow Slot Wiring Duct
  • Wiring Duct Type: F
  • Overall Height (In.): 1.13
  • Overall Height (mm): 28.7
  • Overall Length (ft.): 6
  • Overall Length (m): 1.8
  • Overall Width (In.): 1.25
  • Overall Width (mm): 31.8
  • Slot Width (mm): 5.1
  • Slot Width (In.): 0.2
  • Sub Brand: Panduct®

Packaging Details

  • UPC: 07498333763
  • GTIN Package: 00074983337637
  • Standard Package Volume Ft3: 0.0478
  • Standard Package Weight Pounds: 0.6324
  • Std Package Height In: 1
  • Std Package Height MM: 25.4
  • Std Package Length In: 72
  • Std Package Length MM: 1828.8
  • Std Package Width In: 1
  • Std Package Width MM: 25.4
  • Std. Pkg. UOM: Foot
  • Std. Pkg. Qty.: 6
  • GTIN Carton: 50074983337632
  • Standard Carton Volume Ft3: 0.0478
  • Standard Carton Weight Pounds: 12.6480
  • Std Carton Height In: 2.8
  • Std Carton Height MM: 71.12
  • Std Carton Length In: 72.9
  • Std Carton Length MM: 1828.8
  • Std Carton Width In: 7.8
  • Std Carton Width MM: 198.12
  • Std Ctn Qty: 120
  • Min. Order UOM: Foot
  • Country of Origin 2Digit: US
  • RoHS Compliant: Compliant
  • EAN: 00074983337637
  • REACH Status: False
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Hazardous Material Flag: N
  • Min Order Qty: 6


UPC 07498333763

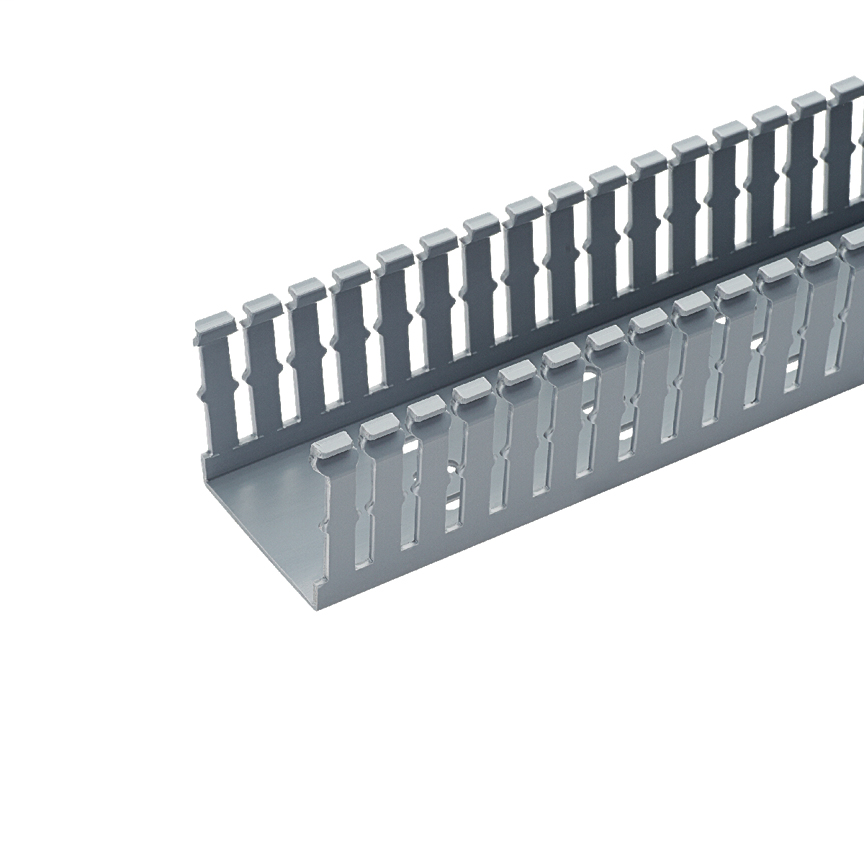

Item Long Description Panduct type F narrow slot wiring duct, 1 W x 1 H, 6' length, PVC, adhesive, light gray.
GTiN 00074983337637
Length 6 ft
Width 1.25 in
Size 32.0 x 28.7 mm
Color Light Gray
Type Base Wiring Duct
Thickness 0.06 IN
Material Lead-Free PVC
Applications Indoor
Height 1.13 in
Country of Origin US
Pkg Qty 6
Family Brand Name Panduit
TC Connection Standard Mounting Holes with Adhesive
Overall Length 6 ft
Sub Brand Wiring Duct
UNSPSC 39131712
Mounting Type Mounting Holes With Adhesive
