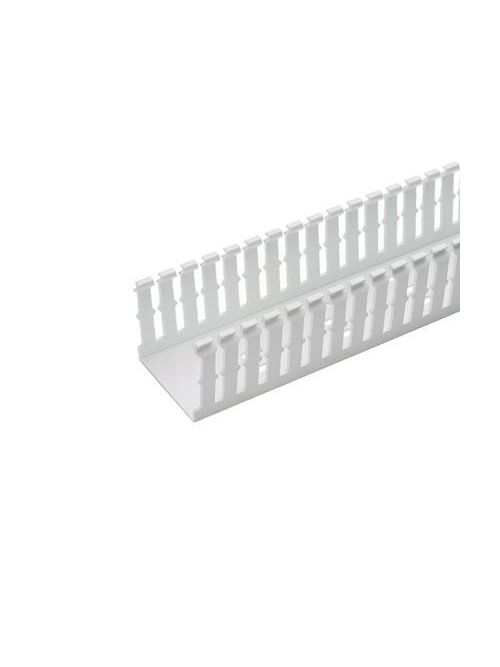

Panduit F1X1WH6 1 x 1 Inch x 6 Foot White PVC Slotted Duct

Specifications

• Product Segment: IEI
• Application: Narrow slot/finger design provides more slots to fit the spacing of high-density terminal block applications
• Product Type: Base Wiring Duct
• Color: White
• Cover Part Number: C1WH6
• Flammability Rating: UL94V-0
• Standards Met: RoHS Compliant, UL Recognized, CE Compliant; CSA Approved
• Includes: Base Only
• Material: PVC
• Mount Method: Mounting Holes
• Measurement System: Metric
• Wiring Duct Style: Narrow Slot Wiring Duct
• Wiring Duct Type: F
• Overall Height (In.): 1.13
• Overall Height (mm): 28.7
• Overall Length (ft.): 6
• Overall Length (m): 1.8
• Overall Width (mm): 32
• Overall Width (In.): 1.25
• Slot Width (mm): 5
• Sub Brand: Panduct®
• Slot Width (In.): 0.2

Packaging Details

• UPC: 07498337502
• GTIN Package: 00074983375028
• Standard Package Volume Ft3: 0.0449
• Standard Package Weight Pounds: 0.6420
• Std Package Height In: 1
• Std Package Height MM: 25.4
• Std Package Length In: 72
• Std Package Length MM: 1828.8
• Std Package Width In: 1
• Std Package Width MM: 25.4
• Std. Pkg. UOM: Foot
• UOM EA PK: PK
• Std. Pkg. Qty.: 6
• GTIN Carton: 50074983375023
• Standard Carton Volume Ft3: 0.0449
• Standard Carton Weight Pounds: 12.8400
• Std Carton Height In: 2.8
• Std Carton Height MM: 71.12
• Std Carton Length In: 72.9
• Std Carton Length MM: 1828.8
• Std Carton Width In: 7.8
• Std Carton Width MM: 198.12
• Std Ctn Qty: 120
• Min. Order UOM: Foot
• Country of Origin 2Digit: US
• RoHS Compliant: Compliant
• EAN: 00074983375028
• REACH Status: False
• Buy American Compliant: Y
• ARRA Compliant: Y
• Mercury Content Indicator: No
• Hazardous Material Flag: N
• Min Order Qty: 6
