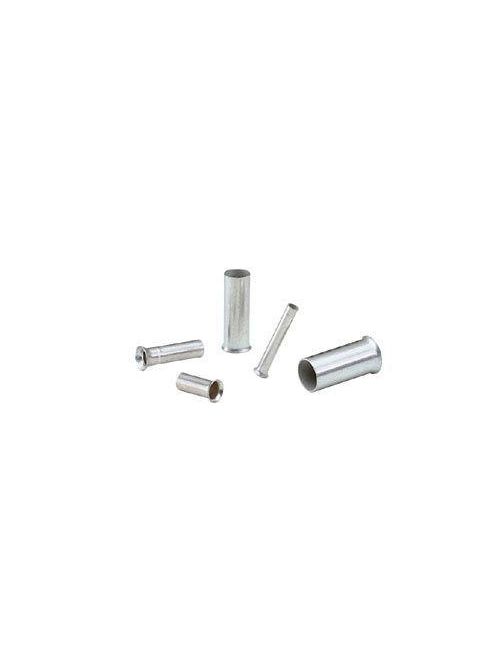

Panduit F80-15-M 14 AWG 2.5 mm Non-Insulated Ferrule
$167.25/m (1000 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Order in multiples of 1000 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # F80-15-M
North Coast Part # 828281

Specifications

  • UNSPSC: 39121409
  • Product Segment: IEI
  • Ferrule Type: NA
  • Insulation Material: Non-Insulated
  • Maximum Copper Conductor Size (AWG): NA
  • Minimum Copper Conductor Size (AWG): NA
  • Flammability Rating: NA
  • Wire Strip Length (mm): 15
  • Wire Strip Length (In.): 0.59
  • Insulation Type: NA
  • Inside Diameter (In.): 0.09
  • Inside Diameter (mm): 2.3
  • Maximum Operating Temperature (°F): 302
  • Maximum Operating Temperature (°C): 150
  • Outer Diameter (mm): 2.5
  • Outer Diameter (In.): 0.1
  • Overall Length (mm): 15
  • Overall Length (In.): 0.59
  • Product Type: Non-insulated Ferrules
  • Standards Met: DIN 46228 Part 1, CSA C22.2 No. 291-14
  • Finish/Coating: Tin-Plated
  • For Use With: NA
  • Packaging Type: Loose Piece Ferrules
  • Base Material: Copper
  • Color Code: Metallic
  • Maximum Copper Conductor Size (AWG STR): NA
  • Maximum Copper Conductor Size (AWG SOL): NA
  • Minimum Copper Conductor Size (AWG STR): NA
  • Minimum Copper Conductor Size (AWG SOL): NA
  • Sub Brand: DIN 46228 Part 1, UL 486F Listed, CSA

Packaging Details

  • UPC: 07498376339
  • GTIN Package: 00074983763399
  • Standard Package Volume Ft3: 0.0082
  • Standard Package Weight Pounds: 0.3500
  • Std Package Height In: 1.25
  • Std Package Height MM: 31.75
  • Std Package Length In: 4.8
  • Std Package Length MM: 121.92
  • Std Package Width In: 4.6
  • Std Package Width MM: 116.84
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 1000
  • Standard Carton Volume Ft3: 0.0082
  • Standard Carton Weight Pounds: 0.0000
  • Std Carton Length MM: 121.92
  • Std Ctn Qty: 0
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: DE
  • RoHS Compliant: Compliant
  • EAN: 00074983763399
  • NLD HS Code: 7326909890000000000000
  • USA HS Code: 8536904000000000000000
  • USA HS Code 10digit: 8536904000
  • ECCN Commodity Code: EAR99
  • REACH Status: False
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Hazardous Material Flag: N
  • Min Order Qty: 1,000

Overview

UPC 07498376339
GTiN 00074983763399
Finish Tin-Plated
Type Non-insulated Ferrules
Material Copper
Country of Origin DE
Wire Size 14 AWG
Temperature Rating 302 F
Pkg Qty 1000
Family Brand Name Panduit
Carton Qty 0
Max Operating Temperature 302 degrees F
Overall Length 0.59 in
Color Coding Metallic
Sub Brand DIN 46228 Part 1, UL 486F Listed, CSA
