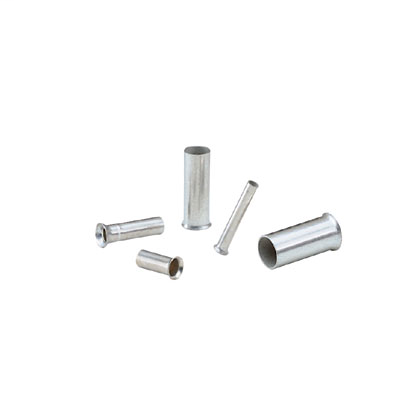

Panduit F82-15-M 10 AWG 6.0 mm Non-Insulated Ferrule

Specifications

• Product Segment: IEI
• UNSPSC: 39121409
• Ferrule Type: NA
• Insulation Material: Non-Insulated
• Maximum Copper Conductor Size (AWG): NA
• Minimum Copper Conductor Size (AWG): NA
• Flammability Rating: NA
• Wire Strip Length (In.): 0.59
• Wire Strip Length (mm): 15
• Insulation Type: NA
• Inside Diameter (mm): 3.6
• Inside Diameter (In.): 0.14
• Maximum Operating Temperature (°C): 150
• Maximum Operating Temperature (°F): 302
• Outer Diameter (In.): 0.15
• Outer Diameter (mm): 3.9
• Overall Length (mm): 15
• Overall Length (In.): 0.59
• Product Type: Non-insulated Ferrules
• Standards Met: DIN 46228 Part 1, CSA C22.2 No. 291-14
• Finish/Coating: Tin-Plated
• For Use With: NA
• Packaging Type: Loose Piece Ferrules
• Base Material: Copper
• Color Code: Metallic
• Maximum Copper Conductor Size (AWG STR): NA
• Maximum Copper Conductor Size (AWG SOL): NA
• Minimum Copper Conductor Size (AWG STR): NA
• Minimum Copper Conductor Size (AWG SOL): NA
• Sub Brand: DIN 46228 Part 1, UL 486F Listed, CSA

Packaging Details

• UPC: 07498376348
• GTIN Package: 00074983763481
• Standard Package Volume Ft3: 0.1912
• Standard Package Weight Pounds: 0.8000
• Std Package Height In: 1.9
• Std Package Height MM: 48.26
• Std Package Length In: 5.65
• Std Package Length MM: 143.51
• Std Package Width In: 4.55
• Std Package Width MM: 115.57
• Std. Pkg. UOM: Piece
• UOM EA PK: PK
• Std. Pkg. Qty.: 1000
• Standard Carton Volume Ft3: 0.1912
• Standard Carton Weight Pounds: 0.0000
• Std Carton Length MM: 143.51
• Std Ctn Qty: 0
• Min. Order UOM: Piece
• Country of Origin 2Digit: DE
• RoHS Compliant: Compliant
• EAN: 00074983763481
• NLD HS Code: 8536901000000000000000
• USA HS Code: 8536904000000000000000
• USA HS Code 10digit: 8536904000
• ECCN Commodity Code: EAR99
• REACH Status: False
• Buy American Compliant: Y
• ARRA Compliant: Y
• Mercury Content Indicator: No
• Hazardous Material Flag: N
• Min Order Qty: 1,000
