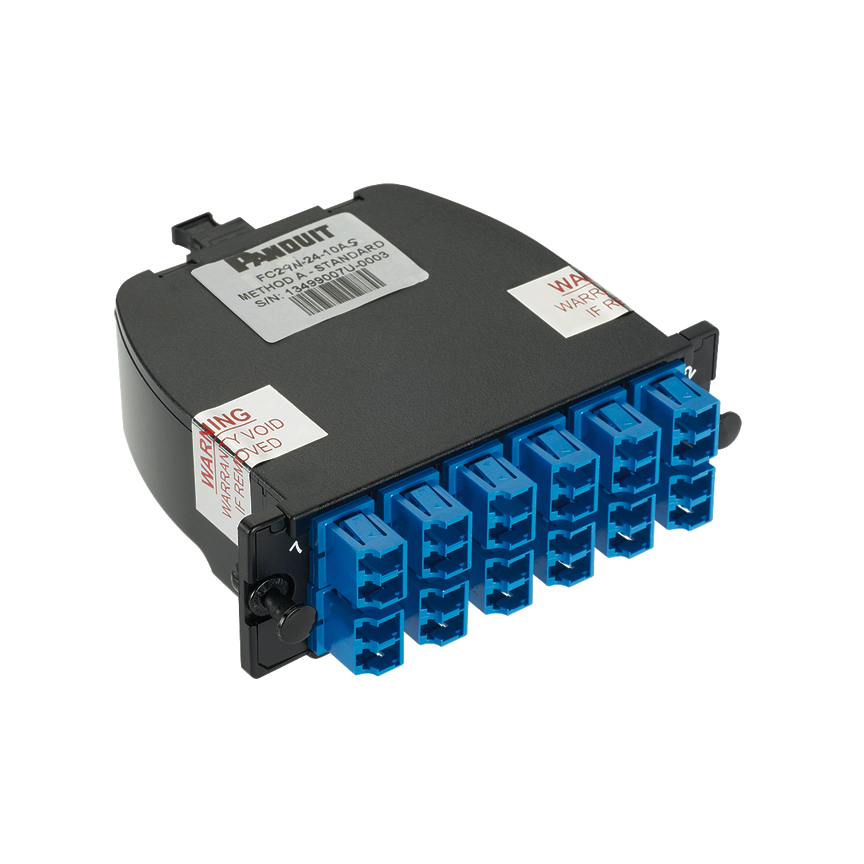

PAN FC26N-12-10AS OM1,12-Fiber,LC,D
Product image thumbnail 0
Product image thumbnail 1
$449.74/ea
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # FC26N-12-10AS
North Coast Part # 1893633

Specifications

  • Product Segment: EDI-DC
  • UNSPSC: 26121650
  • Fiber Type: OM1
  • Sub Brand: Opticom
  • Connection Type: LC
  • Number of Fibers: 12
  • Connector 1 Type: LC Duplex
  • Material: Phosphor Bronze
  • Connector 2 Type: MPO Male
  • Adapter Color: Beige
  • Maximum Connector Insertion Loss (dB): 0.75
  • Minimum Connector Return Loss (dB): 20
  • Overall Width (mm): 89
  • Overall Width (In.): 3.5
  • Overall Depth (mm): 106
  • Overall Depth (In.): 4.2
  • Overall Height (mm): 35
  • Overall Height (In.): 1.4
  • Standards Met: Meets or exceeds TIA/EIA-568-C.3 performance requirements. Supports IEEE 802.3ae and ANSI T11.2 (Fiber Channel) channel and link specifications. Compliant with ROHS 2002/95/EC.
  • Product Type: LC Cassette
  • Application: Data Center Cabling, Cable Management
  • Color: Beige
  • Fiber Diameter (┬Ám): 62.5

Packaging Details

  • UPC: 07498395147
  • GTIN Package: 00074983951475
  • Standard Package Volume Ft3: 0.0984
  • Standard Package Weight Pounds: 0.5800
  • Std Package Height In: 1.5
  • Std Package Height MM: 38.1
  • Std Package Length In: 7.8
  • Std Package Length MM: 198.12
  • Std Package Width In: 4.5
  • Std Package Width MM: 114.3
  • Std. Pkg. UOM: Piece
  • UOM EA PK: EA
  • Std. Pkg. Qty.: 1
  • GTIN Carton: 50074983951470
  • Standard Carton Volume Ft3: 0.0984
  • Standard Carton Weight Pounds: 5.8000
  • Std Carton Height In: 10.1
  • Std Carton Height MM: 256.54
  • Std Carton Length In: 12.5
  • Std Carton Length MM: 198.12
  • Std Carton Width In: 9
  • Std Carton Width MM: 228.6
  • Std Ctn Qty: 10
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: CR
  • RoHS Compliant: Compliant
  • EAN: 00074983951475
  • REACH Status: False
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Hazardous Material Flag: N
  • Min Order Qty: 1

Overview

UPC 07498395147
Item Long Description OM1 12-fiber, LC duplex adapter, standard loss, (color and split sleeve dictated by fiber type), Standard Method A
GTiN 00074983951475
Type Second Generation
Applications For Data Center Cabling Standard Cross Connects in Main, Horizontal and Equipment Distribution Areas
Country of Origin Costa Rica
Fiber Type OM1 62.5/125 m
Pkg Qty 1
Family Brand Name Panduit
Number of Fibers 12
Sub Brand Opticom, QuickNet
Material Zirconia Ceramic Sleeve
Connection Type LC Duplex, MPO Male
Temperature Rating 0 - 70 C
Blade Dimensions 4.3 in W x 1.4 in D x 4.9 in H
Width 3.5 in
Color Beige
Depth 4.2 in
Height 1.4 in
UNSPSC 26121650
