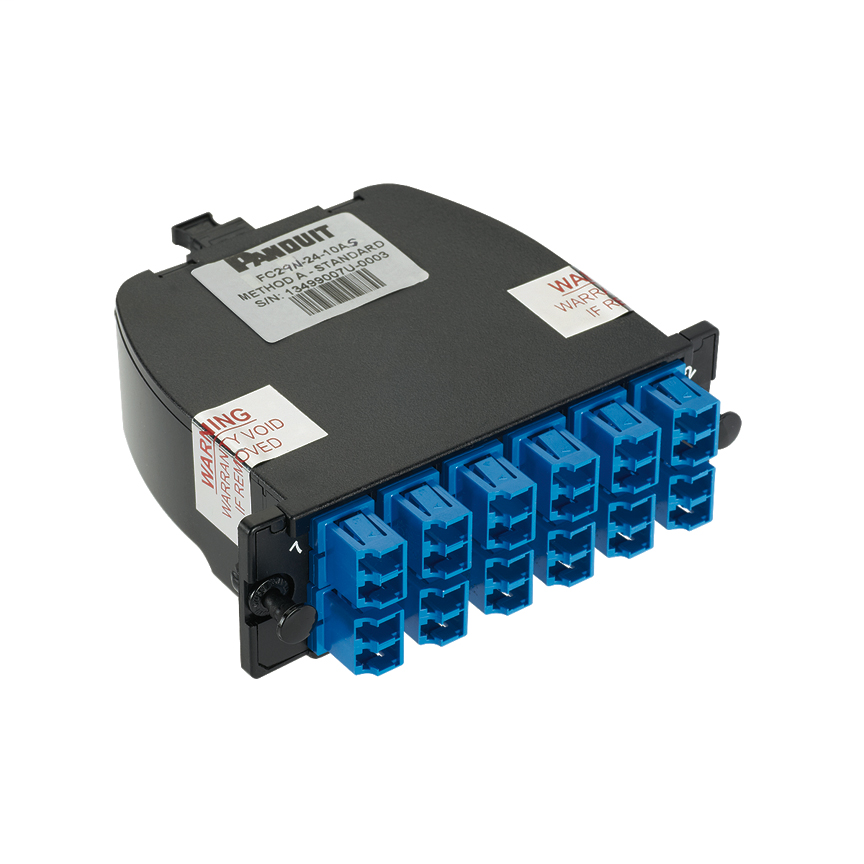

PAN FC29N-24-10AS SFQ MPO-LC Fiber

Specifications

• Product Segment: EDI-DC
• Fiber Type: OS2
• Connection Type: LC
• Sub Brand: Opticom
• Number of Fibers: 24
• Material: Zirconia Ceramic
• Connector 1 Type: LC Duplex
• Adapter Color: Blue
• Connector 2 Type: MPO Male
• Maximum Connector Insertion Loss (dB): 0.75
• Minimum Connector Return Loss (dB): 26
• Overall Width (mm): 89
• Overall Width (In.): 3.5
• Overall Depth (mm): 106
• Overall Depth (In.): 4.2
• Overall Height (In.): 1.4
• Overall Height (mm): 35
• Standards Met: Meets or exceeds TIA/EIA-568-C.3 performance requirements. Supports IEEE 802.3ae and ANSI T11.2 (Fiber Channel) channel and link specifications. Compliant with ROHS 2002/95/EC.
• Product Type: LC Cassette
• Application: Data Center Cabling, Cable Management
• Color: Blue
• Fiber Diameter (µm): 9

Packaging Details

• UPC: 07498395133
• GTIN Package: 00074983951338
• Standard Package Volume Ft3: 0.0666
• Standard Package Weight Pounds: 0.4900
• Std Package Height In: 2
• Std Package Height MM: 50.8
• Std Package Length In: 8.55
• Std Package Length MM: 217.17
• Std Package Width In: 5.15
• Std Package Width MM: 130.81
• Std. Pkg. UOM: Piece
• UOM EA PK: EA
• Std. Pkg. Qty.: 1
• GTIN Carton: 50074983951333
• Standard Carton Volume Ft3: 0.0666
• Standard Carton Weight Pounds: 4.9000
• Std Carton Height In: 10.15
• Std Carton Height MM: 257.81
• Std Carton Length In: 12.7
• Std Carton Length MM: 217.17
• Std Carton Width In: 9.3
• Std Carton Width MM: 236.22
• Std Ctn Qty: 10
• Min. Order UOM: Piece
• Country of Origin 2Digit: RO,CN,CR
• RoHS Compliant: Compliant
• EAN: 00074983951338
• REACH Status: False
• Buy American Compliant: Y
• ARRA Compliant: Y
• Mercury Content Indicator: No
• Hazardous Material Flag: N
• Min Order Qty: 1
