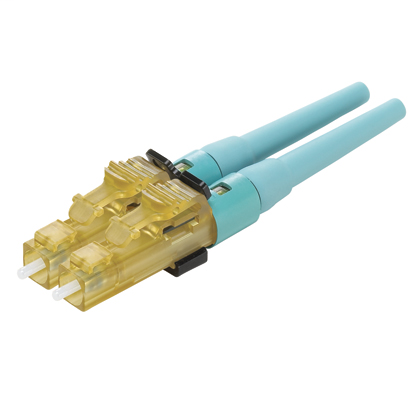

PAN FLCDMCXAQY OptiCam® LC Duplex C
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$59.80/ea
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # FLCDMCXAQY
North Coast Part # 597490

Specifications

  • Product Segment: EDI-ENT
  • Note: FLCDMCXAQY replaces FLCDMCXAQ
  • Polish Type: Pre-Polished
  • Fiber Type: OM3/OS4
  • Connection Type: LC
  • Sub Brand: OptiCam
  • Application: Maintenance or emergency restoration of fiber networks and retrofit/initial install in both behind-the-wall (BTW) and in the permanent side of panelized interconnect and cross-connect.
  • Body Style: Duplex
  • Color: Aqua
  • Boot Color: Aqua
  • Backbone Color: Aqua
  • Fiber Diameter (µm): 50
  • Outer Diameter (mm): 0.9
  • Maximum Operating Temperature (°F): 140
  • Maximum Operating Temperature (°C): 60
  • Maximum Installation Temperature (°F): 108
  • Minimum Operating Temperature (°F): 32
  • Maximum Installation Temperature (°C): 42
  • Minimum Installation Temperature (°C): 38
  • Minimum Installation Temperature (°F): 100
  • Maximum Connector Insertion Loss (dB): 0.3
  • Minimum Connector Return Loss (dB): 26
  • Standards Met: Exceeds the TIA/EIA-568-B.3 requirements
  • Product Type: Fiber Optic Connectors, Field Polish

Packaging Details

  • UPC: 07498304742
  • GTIN Package: 00074983047420
  • Standard Package Volume Ft3: 0.0032
  • Standard Package Weight Pounds: 0.0120
  • Std Package Height In: 1
  • Std Package Height MM: 25.4
  • Std Package Length In: 3.5
  • Std Package Length MM: 88.9
  • Std Package Width In: 5
  • Std Package Width MM: 127
  • Std. Pkg. UOM: Piece
  • UOM EA PK: EA
  • Std. Pkg. Qty.: 1
  • GTIN Carton: 50074983047425
  • Standard Carton Volume Ft3: 0.0032
  • Standard Carton Weight Pounds: 0.1200
  • Std Carton Height In: 2.3
  • Std Carton Height MM: 58.42
  • Std Carton Length In: 4.1
  • Std Carton Length MM: 88.9
  • Std Carton Width In: 3.2
  • Std Carton Width MM: 81.28
  • Std Ctn Qty: 10
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: CR
  • RoHS Compliant: RoHS directive is not applicable
  • EAN: 00074983047420
  • REACH Status: False
  • California Pro65 Cancer: No
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Hazardous Material Flag: N
  • Min Order Qty: 1

Categories

Overview

UPC 07498304742
GTiN 00074983047420
Finish Pre-Polished
Color Aqua
Type Duplex, Plug
Material Ceramic
Connector Type LC
Country of Origin Costa Rica
Fiber Type Multimode OM3/OM4
Pkg Qty 1
Family Brand Name Panduit
Carton Qty 10
Max Operating Temperature 140 degrees F
Min Operating Temperature 32 degrees F
Boot Color Aqua
Sub Brand OptiCam
CA Prop65 Warning No
