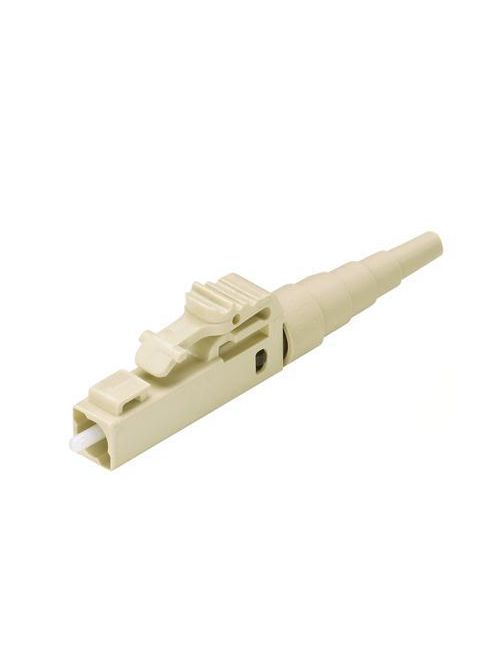

PAN FLCSMEIY LC Splx Conn, Pot & Po

Specifications

• Product Segment: EDI-ENT
• UNSPSC: 43223310
• Note: FLCSMEIY replaces FLCSMEI
• Polish Type: Field Polish
• Fiber Type: OM1
• Sub Brand: NA
• Connection Type: Keyed LC
• Application: Used for equipment cross-connects or interconnects in backbone, horizontal and work area applications for high-speed data transmissions.
• Body Style: Simplex
• Color: Electric Ivory
• Boot Color: Electric Ivory
• Backbone Color: Electric Ivory
• Fiber Diameter (µm): 62.5
• Maximum Operating Temperature (°C): 60
• Maximum Operating Temperature (°F): 140
• Maximum Installation Temperature (°F): 108
• Maximum Installation Temperature (°C): 42
• Minimum Operating Temperature (°F): 32
• Minimum Installation Temperature (°F): 100
• Minimum Installation Temperature (°C): 38
• Maximum Connector Insertion Loss (dB): 0.1
• Minimum Connector Return Loss (dB): 20
• Standards Met: TIA/EIA-604 FOCIS-10 compatible; exceeds TIA/EIA-568-B.3 requirements
• Product Type: Fiber Optic Connectors, Field Polish

Packaging Details

• UPC: 07498304749
• GTIN Package: 00074983047499
• Standard Package Volume Ft3: 0.0032
• Standard Package Weight Pounds: 0.0100
• Std Package Height In: 1
• Std Package Height MM: 25.4
• Std Package Length In: 3.5
• Std Package Length MM: 88.9
• Std Package Width In: 5
• Std Package Width MM: 127
• Std. Pkg. UOM: Piece
• UOM EA PK: EA
• Std. Pkg. Qty.: 1
• GTIN Carton: 50074983047494
• Standard Carton Volume Ft3: 0.0032
• Standard Carton Weight Pounds: 0.1000
• Std Carton Height In: 2.3
• Std Carton Height MM: 58.42
• Std Carton Length In: 4.1
• Std Carton Length MM: 88.9
• Std Carton Width In: 3.2
• Std Carton Width MM: 81.28
• Std Ctn Qty: 10
• Min. Order UOM: Piece
• Country of Origin 2Digit: CR
• RoHS Compliant: RoHS directive is not applicable
• EAN: 00074983047499
• REACH Status: False
• Buy American Compliant: Y
• ARRA Compliant: Y
• Mercury Content Indicator: No
• Hazardous Material Flag: N
• Min Order Qty: 1
