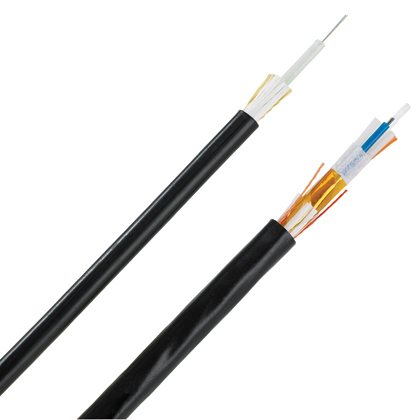

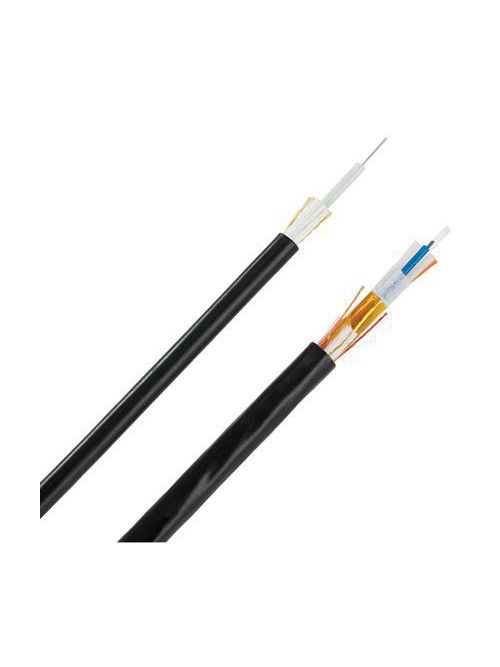

PAN FOCRZ12Y 12-Fiber,OM4,10GbE,Ris
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$4,526.67/m (1000 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # FOCRZ12Y
North Coast Part # 884807

Specifications

  • Product Segment: EDI-ENT
  • Note: Intended for use in fixed installations which are outside the scope of RoHS
  • Cable Construction: Central Loose Tube
  • Environment: Indoor/Outdoor
  • Fiber Type: OM4
  • Number of Fibers: 12
  • Fiber Diameter (µm): 50
  • Bend Radius (In.): 2.6
  • Bend Radius (mm): 66
  • Maximum Operating Temperature (°F): 167
  • Maximum Operating Temperature (°C): 75
  • Minimum Operating Temperature (°C): -40
  • Minimum Operating Temperature (°F): -40
  • Maximum Installation Temperature (°C): 60
  • Maximum Installation Temperature (°F): 140
  • Minimum Installation Temperature (°F): -4
  • Minimum Installation Temperature (°C): -20
  • Maximum Installation Tension (lb): 90
  • Maximum Installation Tension (N): 400
  • Resistance Properties: Flame-Resistant
  • Cable Color: Black
  • Flammability Rating: Riser
  • Product Type: Indoor/Outdoor Central Loose Tube
  • Connection Type: NA
  • Standards Met: TIA/EIA- 568, ANSI/ICEA S-83-596, Telcordia GR-409, CSA 22.2 No. 230, Telcordia GR-20, ANSI/ICEA S-104-696, RoHS Compliant, UL-1666, NFPA 262
  • Sub Brand: Opti-Core

Packaging Details

  • UPC: 07498320697
  • GTIN Package: 00074983206971
  • Standard Package Volume Ft3: 5.7292
  • Standard Package Weight Pounds: 0.0329
  • Std Package Height In: 12.8
  • Std Package Height MM: 325.12
  • Std Package Length In: 12.8
  • Std Package Length MM: 325.12
  • Std Package Width In: 5
  • Std Package Width MM: 127
  • Std. Pkg. UOM: Foot
  • UOM EA PK: EA
  • Std. Pkg. Qty.: 1
  • Standard Carton Volume Ft3: 5.7292
  • Standard Carton Weight Pounds: 0.0000
  • Std Carton Length MM: 325.12
  • Std Ctn Qty: 0
  • Min. Order UOM: Foot
  • Country of Origin 2Digit: US
  • RoHS Compliant: Compliant
  • EAN: 00074983206971
  • NLD HS Code: 8544700000000000000000
  • USA HS Code: 8544700000000000000000
  • USA HS Code 10digit: 8544700000
  • ECCN Commodity Code: EAR99
  • REACH Status: False
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Hazardous Material Flag: N
  • Min Order Qty: 150

Overview

UPC 07498320697
GTiN 00074983206971
Color Black
Type Indoor/Outdoor Central Loose Tube
Applications Inside/outside
Country of Origin US
Fiber Type OM4
Pkg Qty 1
Cable Color Black
Family Brand Name Panduit
Carton Qty 0
Max Operating Temperature 167 degrees F
Fiber Cable Size 50/125m
Min Operating Temperature -40 degrees F
Tensile Strength 1335 N
Bend Radius 65 mm
Number of Fibers 12
Sub Brand Opti-Core
