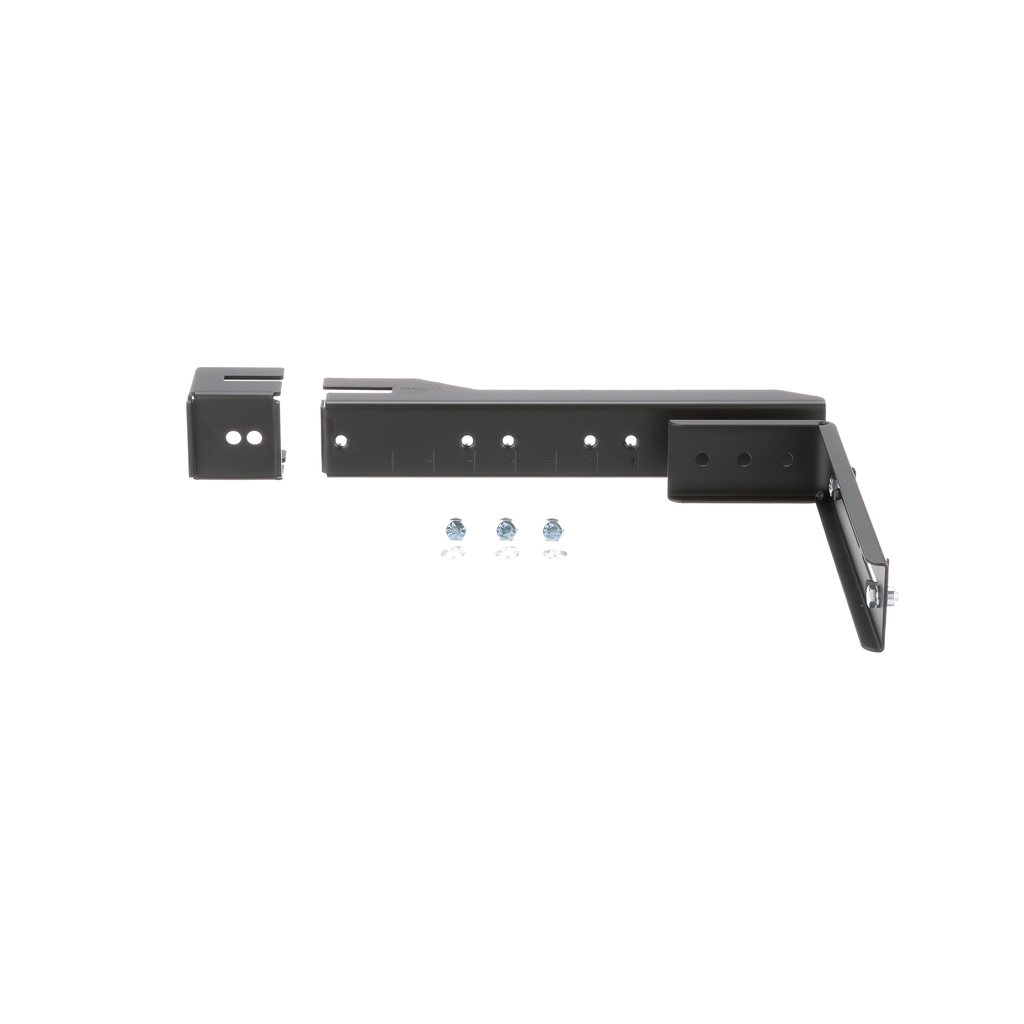

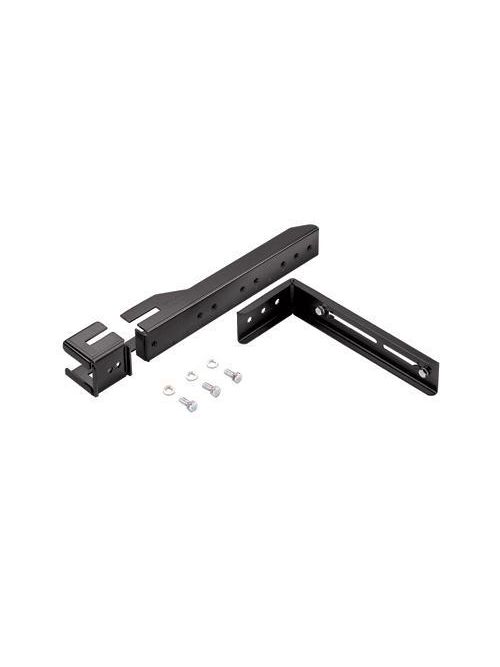

PAN FR6ALB Mounting Ladder Bracket

Specifications

• Product Segment: EDI-DC
• Product Type: Ladder Rack
• Application: (1) The Fiberrunner 6X4 Routing System is a System of Channel, Fittings and Brackets Designed to Segregate, Route, and Protect Fiber Optic and High PerformanceCopper Cabling. (2) it is Suited for Data Center Applications
• Sub Brand: FiberRunner®
• Color: Black
• Finish/Coating: Powder-Coated
• For Use With: Fast Assembly to Channel
• Includes: (1) Clasp Bracket, (2) Vertical Bracket Assembly, (2) "L" Bracket Assembly, (3) 5/16 Helical Spring Lockwashers, (3) 5/16-18x3/4 Hex Head Cap Screws
• Material: Steel
• Number of Pieces: 9
• Overall Height (mm): 328.2
• Overall Height (In.): 12.92
• Overall Length (In.): 11.76
• Overall Length (mm): 298.7
• Overall Width (mm): 57.4
• Overall Width (In.): 2.26
• Standards Met: UL Listed to 2024A Optical Fiber Cable Routing Assemblies Compliant with the Applicable Tests in Telcordia Gr-63-Core Network Equipment Building Systems Level 3, LP-CSISPEC-FR
• Series Type: 4 x 4 and 6 x 4 FiberRunner Brackets
• Surface Treatment: Other

Packaging Details

• UPC: 07498379924
• GTIN Package: 00074983799244
• Standard Package Volume Ft3: 0.1201
• Standard Package Weight Pounds: 3.3184
• Std Package Height In: 2.7
• Std Package Height MM: 68.58
• Std Package Length In: 13.65
• Std Package Length MM: 346.71
• Std Package Width In: 8.1
• Std Package Width MM: 205.74
• Std. Pkg. UOM: Piece
• UOM EA PK: EA
• Std. Pkg. Qty.: 1
• GTIN Carton: 50074983799249
• Standard Carton Volume Ft3: 0.1201
• Standard Carton Weight Pounds: 33.1840
• Std Carton Height In: 9.05
• Std Carton Height MM: 229.87
• Std Carton Length In: 17.35
• Std Carton Length MM: 346.71
• Std Carton Width In: 13.85
• Std Carton Width MM: 351.79
• Std Ctn Qty: 10
• Min. Order UOM: Piece
• Country of Origin 2Digit: US
• RoHS Compliant: Compliant
• EAN: 00074983799244
• REACH Status: False
• California Pro65 Cancer: No
• Buy American Compliant: Y
• ARRA Compliant: Y
• Mercury Content Indicator: No
• Hazardous Material Flag: N
• Min Order Qty: 1
• Pallet Quantity: 300
• Pallet Volume: 36.018144
• Pallet Weight: 995.5200
