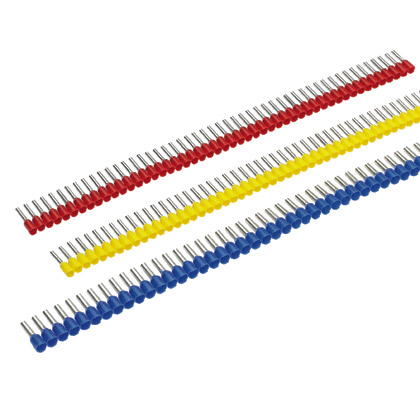

PAN FSD75-8-DSL10 Ferrule,Insul,20A
$70.69/m (1000 ea)
Usually ships within 6 to 10 Days
Adding...
Order in multiples of 500 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # FSD75-8-DSL10
North Coast Part # 675772

Specifications

  • Product Segment: IEI
  • UNSPSC: 39121409
  • Note: With 20 AWG wire only
  • Ferrule Type: NA
  • Insulation Material: Polypropylene
  • Maximum Copper Conductor Size (AWG): NA
  • Minimum Copper Conductor Size (AWG): NA
  • Flammability Rating: UL 94 HB
  • Wire Strip Length (mm): 10
  • Wire Strip Length (In.): 0.39
  • Pin Length (In.): 0.31
  • Pin Length (mm): 8
  • Insulation Type: Polypropylene
  • Insulation Diameter (In.): 0.09
  • Insulation Diameter (mm): 2.5
  • Inside Diameter (In.): 0.04
  • Inside Diameter (mm): 1.1
  • Maximum Operating Temperature (°C): 105
  • Maximum Operating Temperature (°F): 221
  • Maximum Wire Insulation Diameter (In.): 0.1
  • Maximum Wire Insulation Diameter (mm): 2.6
  • Overall Length (mm): 13.5
  • Overall Length (In.): 0.53
  • Product Type: Insulated single wire ferrules (DIN or French color code)
  • Standards Met: DIN 46228 Part 4, CSA C22.2 No. 291-14
  • Finish/Coating: Tin-Plated
  • For Use With: NA
  • Packaging Type: Loose Piece Ferrules
  • Base Material: Copper
  • Color Code: NA
  • Maximum Copper Conductor Size (AWG STR): NA
  • Maximum Copper Conductor Size (AWG SOL): NA
  • Minimum Copper Conductor Size (AWG STR): NA
  • Minimum Copper Conductor Size (AWG SOL): NA
  • Sub Brand: DIN 46228 Part 4, UL 486F with 20 AWG wire only, CSA

Packaging Details

  • UPC: 07498300986
  • GTIN Package: 00074983009862
  • Standard Package Volume Ft3: 0.0054
  • Standard Package Weight Pounds: 0.1000
  • Std Package Height In: .65
  • Std Package Height MM: 16.51
  • Std Package Length In: 7.4
  • Std Package Length MM: 187.96
  • Std Package Width In: 2.95
  • Std Package Width MM: 74.93
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 500
  • Standard Carton Volume Ft3: 0.0054
  • Standard Carton Weight Pounds: 0.0000
  • Std Carton Length MM: 187.96
  • Std Ctn Qty: 0
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: DE
  • RoHS Compliant: Compliant
  • EAN: 00074983009862
  • NLD HS Code: 8536901000000000000000
  • USA HS Code: 8536904000000000000000
  • USA HS Code 10digit: 8536904000
  • ECCN Commodity Code: EAR99
  • REACH Status: False
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Hazardous Material Flag: N
  • Min Order Qty: 500

Overview

UPC 07498300986
GTiN 00074983009862
Finish Tin-Plated
Color White
Type Insulated single wire ferrules (DIN or French color code)
Material Copper
Country of Origin DE
Wire Size 20
Temperature Rating 221 F
Pkg Qty 500
Family Brand Name Panduit
Carton Qty 0
Max Operating Temperature 221 degrees F
Overall Length 0.53 in
Sub Brand DIN 46228 Part 4, UL 486F with 20 AWG wire only, CSA
Color Coding NA
