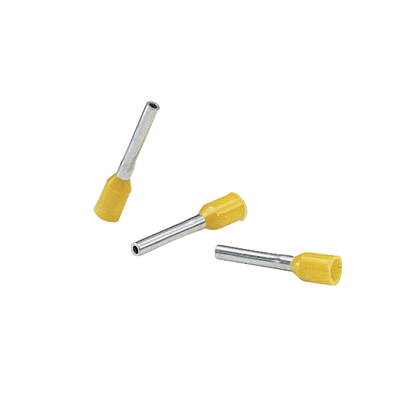

Panduit FSD84-12-C 6 AWG Single Wire Insulated Ferrule

Specifications

• Product Segment: IEI
• UNSPSC: 39121409
• Ferrule Type: NA
• Insulation Material: Polypropylene
• Maximum Copper Conductor Size (AWG): NA
• Minimum Copper Conductor Size (AWG): NA
• Flammability Rating: UL 94 HB
• Wire Strip Length (mm): 15.9
• Wire Strip Length (In.): 0.63
• Pin Length (In.): 0.47
• Pin Length (mm): 12
• Insulation Type: Polypropylene
• Insulation Diameter (mm): 8.8
• Insulation Diameter (In.): 0.35
• Inside Diameter (In.): 0.24
• Inside Diameter (mm): 6
• Maximum Operating Temperature (°F): 221
• Maximum Operating Temperature (°C): 105
• Maximum Wire Insulation Diameter (mm): 8.8
• Maximum Wire Insulation Diameter (In.): 0.35
• Overall Length (mm): 23
• Overall Length (In.): 0.91
• Product Type: Insulated single wire ferrules (DIN or French color code)
• Standards Met: DIN 46228 Part 4, CSA C22.2 No. 291-14
• Finish/Coating: Tin-Plated
• For Use With: NA
• Packaging Type: Loose Piece Ferrules
• Base Material: Copper
• Color Code: NA
• Maximum Copper Conductor Size (AWG STR): NA
• Maximum Copper Conductor Size (AWG SOL): NA
• Minimum Copper Conductor Size (AWG STR): NA
• Minimum Copper Conductor Size (AWG SOL): NA
• Sub Brand: DIN 46228 Part 4, UL 486F Listed, CSA

Packaging Details

• UPC: 07498376269
• GTIN Package: 00074983762699
• Standard Package Volume Ft3: 0.1912
• Standard Package Weight Pounds: 0.2000
• Std Package Height In: 1.6
• Std Package Height MM: 40.64
• Std Package Length In: 4.9
• Std Package Length MM: 124.46
• Std Package Width In: 3.8
• Std Package Width MM: 96.52
• Std. Pkg. UOM: Piece
• UOM EA PK: PK
• Std. Pkg. Qty.: 100
• Standard Carton Volume Ft3: 0.1912
• Standard Carton Weight Pounds: 0.0000
• Std Carton Length MM: 124.46
• Std Ctn Qty: 0
• Min. Order UOM: Piece
• Country of Origin 2Digit: DE
• RoHS Compliant: Compliant
• EAN: 00074983762699
• REACH Status: False
• California Pro65 Cancer: No
• Buy American Compliant: Y
• ARRA Compliant: Y
• Mercury Content Indicator: No
• Lead Content Indicator: N
• Restricted Use of Hazardous Substances: N
• Hazardous Material Flag: N
• Min Order Qty: 100
• Pallet Quantity: 252,000
• Pallet Volume: 0.000000
• Pallet Weight: 504.0000
