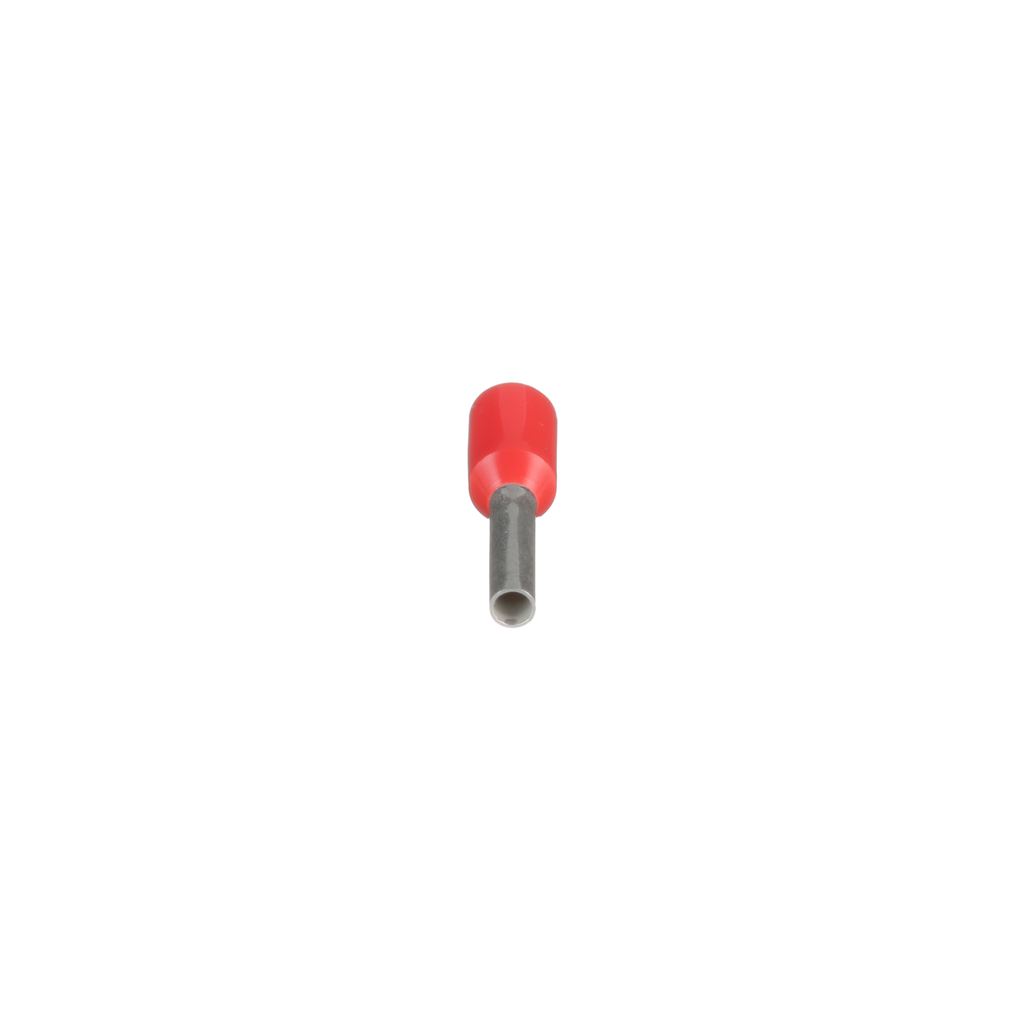

PAN FSD90-25-Q Ferrule,Insul,3/0AWG

Specifications

• UNSPSC: 39121409
• Product Segment: IEI
• Ferrule Type: NA
• Insulation Material: Polypropylene
• Maximum Copper Conductor Size (AWG): NA
• Minimum Copper Conductor Size (AWG): NA
• Flammability Rating: UL 94 HB
• Wire Strip Length (mm): 28.6
• Wire Strip Length (In.): 1.13
• Pin Length (mm): 25
• Pin Length (In.): 0.98
• Insulation Type: Polypropylene
• Insulation Diameter (mm): 18
• Insulation Diameter (In.): 0.71
• Inside Diameter (mm): 14.5
• Inside Diameter (In.): 0.57
• Maximum Operating Temperature (°F): 221
• Maximum Operating Temperature (°C): 105
• Maximum Wire Insulation Diameter (In.): 0.71
• Maximum Wire Insulation Diameter (mm): 18
• Overall Length (In.): 1.73
• Overall Length (mm): 44
• Product Type: Insulated single wire ferrules (DIN or French color code)
• Standards Met: DIN 46228 Part 4, CSA C22.2 No. 291-14
• Finish/Coating: Tin-Plated
• For use with: NA
• Packaging Type: Loose Piece Ferrules
• Base Material: Copper
• Color Code: NA
• Maximum Copper Conductor Size (AWG SOL): NA
• Maximum Copper Conductor Size (AWG STR): NA
• Minimum Copper Conductor Size (AWG STR): NA
• Minimum Copper Conductor Size (AWG SOL): NA
• Sub Brand: DIN 46228 Part 4, CSA

Packaging Details

• UPC: 07498333371
• GTIN Package: 00074983333714
• Standard Package Volume Ft3: 0.0204
• Standard Package Weight Pounds: 0.3000
• Std Package Height In: 1.2
• Std Package Height MM: 30.48
• Std Package Length In: 7
• Std Package Length MM: 177.8
• Std Package Width In: 4.2
• Std Package Width MM: 106.68
• Std. Pkg. UOM: Piece
• UOM EA PK: PK
• Std. Pkg. Qty.: 25
• Standard Carton Volume Ft3: 0.0204
• Standard Carton Weight Pounds: 0.0000
• Std Carton Length MM: 177.8
• Std Ctn Qty: 0
• Min. Order UOM: Piece
• Country of Origin 2Digit: DE
• RoHS Compliant: Compliant
• EAN: 00074983333714
• REACH Status: False
• Buy American Compliant: Y
• ARRA Compliant: Y
• Mercury Content Indicator: No
• Hazardous Material Flag: N
• Min Order Qty: 25
