PAN FSGP906Y 6-Fiber,OS2,SM,PLEM,In
$3,108.70/m (1000 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # FSGP906Y
North Coast Part # 884811

Specifications

  • Product Segment: EDI-ENT
  • UNSPSC: 26121607
  • Sub Brand: Opti-Core®
  • Cable Construction: Interlocking Armored Central
  • Environment: Indoor/Outdoor
  • Fiber Type: OS2
  • Number of Fibers: 6
  • Fiber Diameter (µm): 9
  • Outer Diameter (In.): 0.61
  • Outer Diameter (mm): 15.6
  • Bend Radius (In.): 6.6
  • Bend Radius (mm): 167
  • Maximum Operating Temperature (°C): 75
  • Maximum Operating Temperature (°F): 167
  • Minimum Operating Temperature (°C): -40
  • Minimum Operating Temperature (°F): -40
  • Maximum Installation Temperature (°C): 60
  • Maximum Installation Temperature (°F): 140
  • Minimum Installation Temperature (°C): -20
  • Minimum Installation Temperature (°F): 32
  • Maximum Installation Tension (lb): 400
  • Maximum Installation Tension (N): 1.8
  • Resistance Properties: Flame-Resistant
  • Cable Color: Black
  • Flammability Rating: Plenum

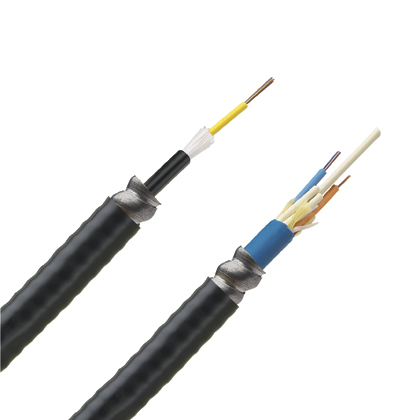

  • Product Type: Indoor/Outdoor Central Loose Tube w/Interlocking Armor
  • Application: For Use Indoors or Outdoors. Central Loose Tube Constructions. Interlocking Aluminum Armor Eliminates the Need for Inner Duct or Conduit.
  • Connection Type: NA
  • Standards Met: RoHS Compliant

Packaging Details

  • UPC: 07498300446
  • GTIN Package: 00074983004461
  • Standard Package Volume Ft3: 1.4625
  • Standard Package Weight Pounds: 0.0200
  • Std. Pkg. UOM: Foot
  • UOM EA PK: EA
  • Std. Pkg. Qty.: 1
  • Standard Carton Volume Ft3: 1.4625
  • Standard Carton Weight Pounds: 0.0000
  • Std Ctn Qty: 0
  • Min. Order UOM: Foot
  • Country of Origin 2Digit: US
  • RoHS Compliant: Compliant
  • EAN: 00074983004461
  • REACH Status: False
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Hazardous Material Flag: N
  • Min Order Qty: 1640

Categories

Overview

UPC 07498300446
GTiN 00074983004461
Color Yellow
Type Indoor/Outdoor Central Loose Tube W/Interlocking Armor
Applications Inside/outside
Country of Origin US
Fiber Type OS2
Pkg Qty 1
Cable Color Black
Family Brand Name Panduit
Carton Qty 0
Max Operating Temperature 167 degrees F
Fiber Cable Size OS2 9/125m
Min Operating Temperature -40 degrees F
Tensile Strength 1800 N
Bend Radius 333 mm
Number of Fibers 6
Sub Brand Opti-Core
UNSPSC 26121607
