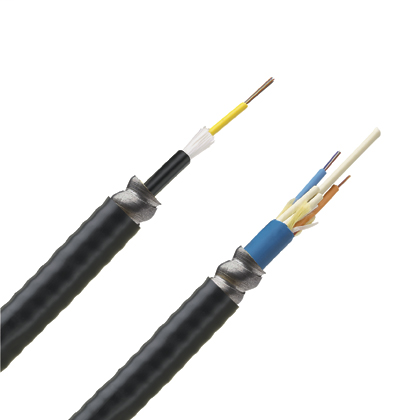

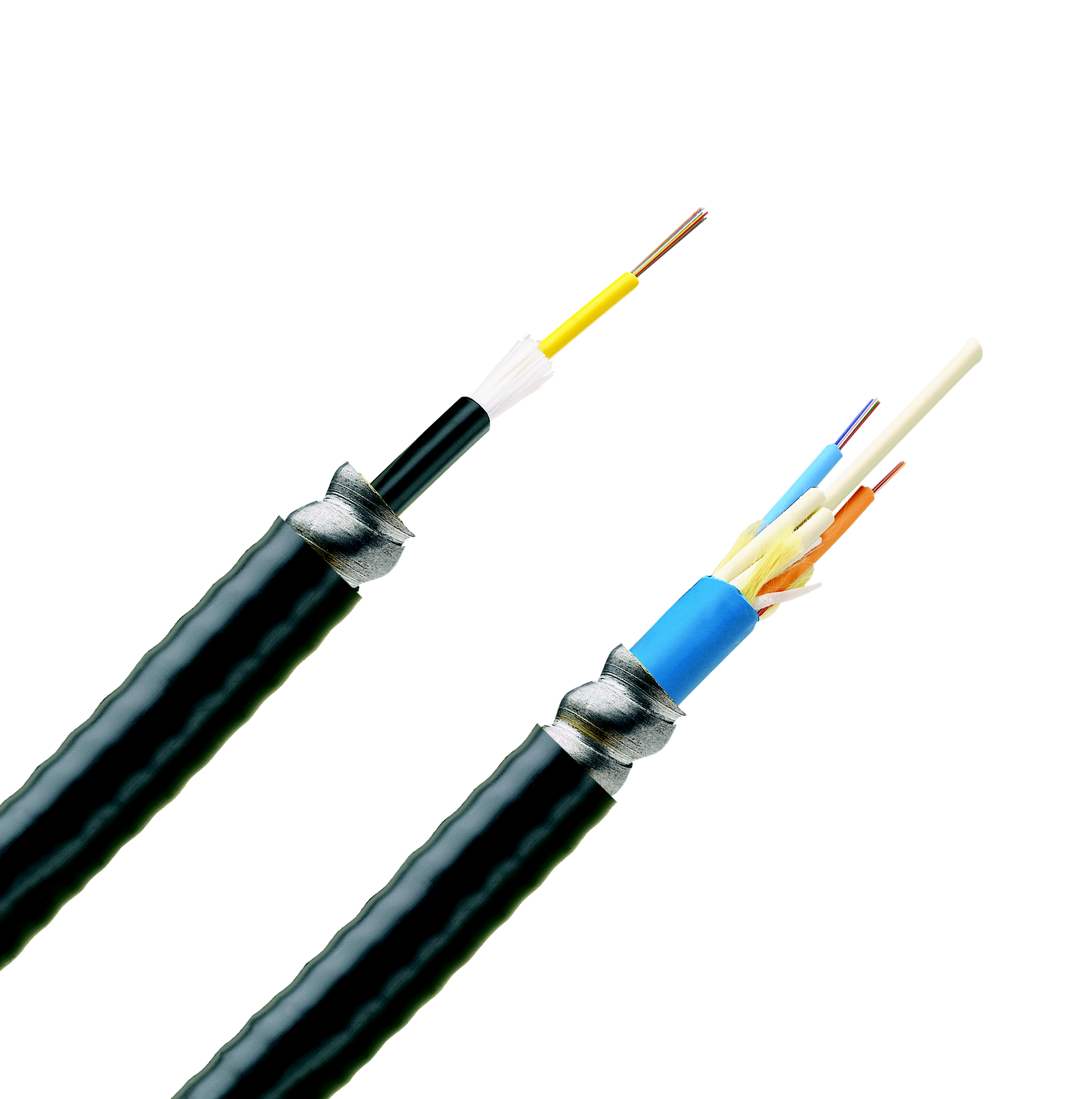

PAN FSMP696Y 96-Fiber,OM1,MM,P,I/O,
$47,240.45/m (1000 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # FSMP696Y
North Coast Part # 884817

Specifications

  • UNSPSC: 26121607
  • Cable Construction: Stranded Loose Tube with Interlocking Armored
  • Environment: Indoor/Outdoor
  • Fiber Type: OM1
  • Number of Fibers: 96
  • Fiber Diameter (µm): 62.5
  • Outer Diameter (In.): 0.85
  • Outer Diameter (mm): 21.7
  • Bend Radius (In.): 8.9
  • Bend Radius (mm): 226.1
  • Maximum Operating Temperature (°C): 75
  • Maximum Operating Temperature (°F): 167
  • Minimum Operating Temperature (°F): -40
  • Minimum Operating Temperature (°C): -40
  • Maximum Installation Temperature (°C): 60
  • Maximum Installation Temperature (°F): 140
  • Minimum Installation Temperature (°F): 32
  • Maximum Installation Tension (lb): 600
  • Maximum Installation Tension (N): 2.7
  • Resistance Properties: Flame-Resistant
  • Cable Color: Black
  • Flammability Rating: Plenum
  • Product Type: Indoor/Outdoor Stranded Loose Tube w/Interlocking Armor
  • Application: For Use Indoors or Outdoors. Central Loose Tube Constructions. Interlocking Aluminum Armor Eliminates the Need for Inner Duct or Conduit.
  • Connection Type: NA
  • Standards Met: TIA/EIA-568, RoHS Compliant, ANSI/ICEA S-83-596, ANSI/ICEA S-104-696, UL-1666, Telcordia GR-409, Telcordia GR-20, NFPA 262, CSA 22.2 No. 230
  • Sub Brand: Opti-Core

Packaging Details

  • UPC: 07498378795
  • GTIN Package: 00074983787951
  • Standard Package Volume Ft3: 13.5000
  • Standard Package Weight Pounds: 0.0783
  • Std. Pkg. UOM: Foot
  • UOM EA PK: EA
  • Std. Pkg. Qty.: 1
  • Standard Carton Volume Ft3: 13.5000
  • Standard Carton Weight Pounds: 0.0000
  • Std Ctn Qty: 0
  • Min. Order UOM: Foot
  • Country of Origin 2Digit: US
  • RoHS Compliant: Compliant
  • EAN: 00074983787951
  • NLD HS Code: 8544700000000000000000
  • USA HS Code: 8544700000000000000000
  • USA HS Code 10digit: 8544700000
  • ECCN Commodity Code: EAR99
  • REACH Status: False
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Hazardous Material Flag: N
  • Min Order Qty: 1,640

Overview

UPC 07498378795
GTiN 00074983787951
Color Orange
Type Indoor/Outdoor Stranded Loose Tube w/Interlocking Armor
Applications Inside/outside
Country of Origin US
Fiber Type OM1
Pkg Qty 1
Cable Color Black
Family Brand Name Panduit
Carton Qty 0
Max Operating Temperature 167 degrees F
Fiber Cable Size OM1 62.5/125m
Min Operating Temperature -40 degrees F
Tensile Strength 2700 N
Bend Radius 450 mm
Number of Fibers 96
Sub Brand Opti-Core
