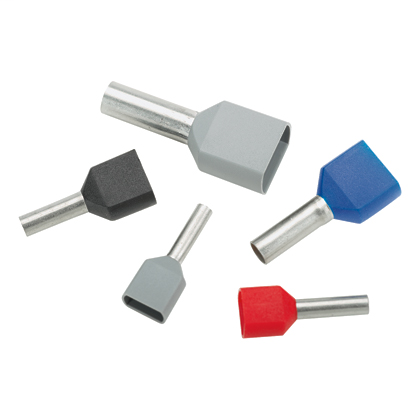

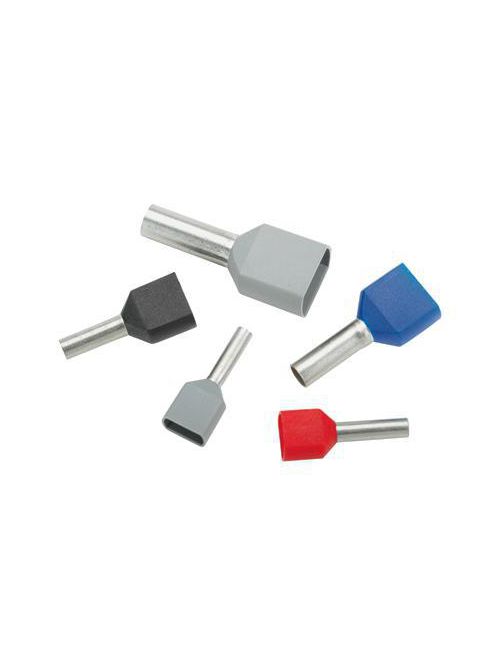

Panduit FTD76-10-D 20 AWG Twin Wire Insulated Ferrule

Specifications

• Product Segment: IEI
• UNSPSC: 39121409
• Ferrule Type: NA
• Insulation Material: Polypropylene
• Maximum Copper Conductor Size (AWG): NA
• Minimum Copper Conductor Size (AWG): NA
• Flammability Rating: UL 94 HB
• Wire Strip Length (In.): 0.55
• Wire Strip Length (mm): 14
• Pin Length (In.): 0.39
• Pin Length (mm): 10
• Insulation Type: Polypropylene
• Insulation Diameter (mm): 2.5
• Insulation Diameter (In.): 0.09
• Inside Diameter (mm): 1.8
• Inside Diameter (In.): 0.07
• Maximum Operating Temperature (°C): 105
• Maximum Operating Temperature (°F): 221
• Maximum Wire Insulation Diameter (mm): 2.4
• Maximum Wire Insulation Diameter (In.): 0.09
• Overall Length (In.): 0.67
• Overall Length (mm): 17
• Product Type: Insulated twin wire ferrules
• Standards Met: DIN 46228 color code, UL 486F Listed with 20 AWG wire only, CSA C22.2 No. 291-14
• Finish/Coating: Tinned
• For Use With: NA
• Packaging Type: Loose Piece Ferrules
• Base Material: Copper
• Color Code: NA
• Maximum Copper Conductor Size (AWG STR): NA
• Maximum Copper Conductor Size (AWG SOL): NA
• Minimum Copper Conductor Size (AWG STR): NA
• Minimum Copper Conductor Size (AWG SOL): NA
• Sub Brand: DIN 46228 color code, UL 486F Listed, CSA

Packaging Details

• UPC: 07498376307
• GTIN Package: 00074983763078
• Standard Package Volume Ft3: 0.1164
• Standard Package Weight Pounds: 0.2000
• Std Package Height In: 1.35
• Std Package Height MM: 34.29
• Std Package Length In: 4.4
• Std Package Length MM: 111.76
• Std Package Width In: 3.95
• Std Package Width MM: 100.33
• Std. Pkg. UOM: Piece
• UOM EA PK: PK
• Std. Pkg. Qty.: 500
• Standard Carton Volume Ft3: 0.1164
• Standard Carton Weight Pounds: 0.0000
• Std Carton Length MM: 111.76
• Std Ctn Qty: 0
• Min. Order UOM: Piece
• Country of Origin 2Digit: DE
• RoHS Compliant: Compliant
• EAN: 00074983763078
• NLD HS Code: 8536901000000000000000
• USA HS Code: 8536904000000000000000
• USA HS Code 10digit: 8536904000
• ECCN Commodity Code: EAR99
• REACH Status: False
• Buy American Compliant: Y
• ARRA Compliant: Y
• Mercury Content Indicator: No
• Hazardous Material Flag: N
• Min Order Qty: 500
