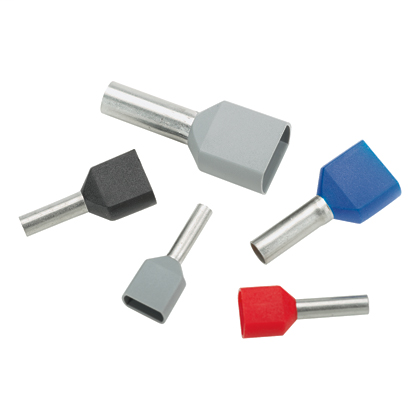

Panduit FTD77-10-D 18 AWG Twin Wire Insulated Ferrule
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$340.39/m (1000 ea)
Usually ships within 6 to 10 Days
Adding...
Order in multiples of 500 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # FTD77-10-D
North Coast Part # 601287

Specifications

  • Product Segment: IEI
  • Ferrule Type: NA
  • Insulation Material: Polypropylene
  • Maximum Copper Conductor Size (AWG): NA
  • Minimum Copper Conductor Size (AWG): NA
  • Flammability Rating: UL 94 HB
  • Wire Strip Length (In.): 0.55
  • Wire Strip Length (mm): 14
  • Pin Length (mm): 10
  • Pin Length (In.): 0.39
  • Insulation Type: Polypropylene
  • Insulation Diameter (In.): 0.11
  • Insulation Diameter (mm): 2.8
  • Inside Diameter (mm): 2.1
  • Inside Diameter (In.): 0.08
  • Maximum Operating Temperature (°F): 221
  • Maximum Operating Temperature (°C): 105
  • Maximum Wire Insulation Diameter (mm): 2.8
  • Maximum Wire Insulation Diameter (In.): 0.11
  • Overall Length (mm): 17
  • Overall Length (In.): 0.67
  • Product Type: Insulated twin wire ferrules
  • Standards Met: DIN 46228 color code, UL 486F Listed with 20 AWG wire only, CSA C22.2 No. 291-14
  • Finish/Coating: Tinned
  • For use with: NA
  • Packaging Type: Loose Piece Ferrules
  • Base Material: Copper
  • Color Code: NA
  • Maximum Copper Conductor Size (AWG SOL): NA
  • Maximum Copper Conductor Size (AWG STR): NA
  • Minimum Copper Conductor Size (AWG SOL): NA
  • Minimum Copper Conductor Size (AWG STR): NA
  • Sub Brand: DIN 46228 color code, UL 486F Listed, CSA

Packaging Details

  • UPC: 07498376309
  • GTIN Package: 00074983763092
  • Standard Package Volume Ft3: 0.1164
  • Standard Package Weight Pounds: 0.2000
  • Std Package Height In: 1.45
  • Std Package Height MM: 36.83
  • Std Package Length In: 4.55
  • Std Package Length MM: 115.57
  • Std Package Width In: 3.55
  • Std Package Width MM: 90.17
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 500
  • Standard Carton Volume Ft3: 0.1164
  • Standard Carton Weight Pounds: 0.0000
  • Std Carton Length MM: 115.57
  • Std Ctn Qty: 0
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: DE
  • RoHS Compliant: Compliant
  • EAN: 00074983763092
  • REACH Status: False
  • California Pro65 Cancer: No
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Lead Content Indicator: N
  • Restricted Use of Hazardous Substances: N
  • Hazardous Material Flag: N
  • Min Order Qty: 500

Categories

Overview

UPC 07498376309
GTiN 00074983763092
Finish Tinned
Color Red
Type Insulated Twin Wire Ferrules
Material Copper
Country of Origin DE
Wire Size 18 AWG
Temperature Rating 221 F
Pkg Qty 500
Family Brand Name Panduit
Carton Qty 0
Max Operating Temperature 221 degrees F
Overall Length 0.67 in
Sub Brand DIN 46228 color code, UL 486F Listed, CSA
CA Prop65 Warning No
Color Coding NA
