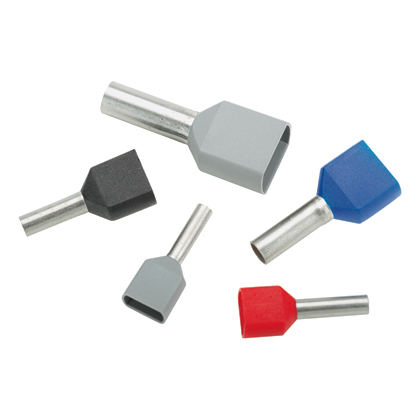

Panduit FTD80-13-TL 14 AWG Twin Wire Insulated Ferrule
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$597.70/m (1000 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # FTD80-13-TL
North Coast Part # 601289

Specifications

  • Product Segment: IEI
  • Ferrule Type: Twin Wire
  • Cover Material: Polypropylene
  • Copper Conductor Size (AWG): 14
  • Maximum Metric Conductor Size (mm²): 2.5
  • Minimum Metric Conductor Size (mm²): 2.5
  • Flammability Rating: UL94-HB
  • Wire Strip Length (In.): 23/32
  • Wire Strip Length (mm): 18.2
  • Pin Length (In.): 0.51
  • Pin Length (mm): 13
  • Inside Diameter (mm): 2.8
  • Inside Diameter (In.): 0.11
  • Maximum Operating Temperature (°F): 221
  • Maximum Operating Temperature (°C): 105
  • Minimum Operating Temperature (°F): -60
  • Minimum Operating Temperature (°C): -54
  • Maximum Wire Insulation Diameter (In.): 0.15
  • Maximum Wire Insulation Diameter (mm): 3.8
  • Overall Length (mm): 21.5
  • Overall Length (In.): 0.85
  • Product Type: Twin wire ferrule
  • Standards Met: DIN 46228, CSA C22.2 No. 291-14, UL 486F
  • Finish/Coating: Tin-Plated
  • For Use With: CT-1160, CT-1170, CT-1090, CT-1002, CT-1003, CT-1123, CT-2300/ST (CD-090), CT-2500/L (CT-2523CH)
  • Packaging Type: Loose Piece Ferrules
  • Base Material: Copper
  • Color Code: Blue
  • Sub Brand: Pan-Term®

Packaging Details

  • UPC: 07498376313
  • GTIN Package: 00074983763139
  • Standard Package Volume Ft3: 0.1912
  • Standard Package Weight Pounds: 0.2250
  • Std Package Height In: 1.3
  • Std Package Height MM: 33.02
  • Std Package Length In: 5.15
  • Std Package Length MM: 130.81
  • Std Package Width In: 3.6
  • Std Package Width MM: 91.44
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 250
  • Standard Carton Volume Ft3: 0.1912
  • Standard Carton Weight Pounds: 0.0000
  • Std Carton Length MM: 130.81
  • Std Ctn Qty: 0
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: DE
  • RoHS Compliant: Compliant
  • EAN: 00074983763139
  • REACH Status: False
  • California Pro65 Cancer: No
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Lead Content Indicator: N
  • Restricted Use of Hazardous Substances: N
  • Hazardous Material Flag: N
  • Min Order Qty: 250
  • Pallet Quantity: 630,000
  • Pallet Volume: 0.000000
  • Pallet Weight: 567.0000

Overview

UPC 07498376313
Item Long Description The FTD80-13-TL Pan-Term Ferrule is a covered, twin-wire ferrule end sleeve. Designed with a seamless barrel to contain loose wire strands for superior terminations. Plastic covering flare allows for faster and easier wire insertion to lower installed cost. Eases insertion of wire into the terminal block and is suitable for limited space panel applications.
GTiN 00074983763139
Finish Tinned
Color Blue
Type Twin Wire Ferrule
Material Copper
Country of Origin DE
Wire Size 14
Temperature Rating 221 F
Pkg Qty 250
Family Brand Name Panduit
Max Operating Temperature 221 degrees F
Overall Length 0.85 in
Sub Brand DIN 46228 color code, UL 486F Listed, CSA
CA Prop65 Warning No
Color Coding NA
