PAN FX2ERLNSNSNM001 OM32Fbr1.6mmJck
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$51.30/ea
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # FX2ERLNSNSNM001
North Coast Part # 1684655

Specifications

  • Product Segment: EDI-DC
  • UNSPSC: 43223326
  • Fiber Type: OM3
  • Number of Fibers: 2
  • Connector 1 Type: LC Duplex
  • Connector 2 Type: SC Duplex
  • Maximum Connector Insertion Loss (dB): 0.25
  • Flammability Rating: Riser
  • Minimum Connector Return Loss (dB): 26
  • Overall Length (ft.): 3.28
  • Overall Length (m): 1
  • Fiber Diameter (µm): 50
  • Outer Diameter (In.): 0.0629921
  • Outer Diameter (mm): 1.6
  • Maximum Operating Temperature (°C): 70
  • Maximum Operating Temperature (°F): 158
  • Minimum Operating Temperature (°F): -4
  • Minimum Operating Temperature (°C): -20
  • Maximum Installation Temperature (°F): 158
  • Maximum Installation Temperature (°C): 70
  • Minimum Installation Temperature (°F): -4
  • Minimum Installation Temperature (°C): -20
  • Resistance Properties: Flame-Resistant
  • Cable Color: Aqua
  • Standards Met: Meets or exceeds ISO/IEC 11801, TIA/EIA-568-C.3,TIA-604-3 (FOCIS-3), TIA-604-10 (FOCIS-10), RoHS Compliant, All patch cord componentsmeet the requirements of Directive 2002/95/EC.
  • Application: Provide interconnect and cross-connect of applications in entrance facilities, telecommunications rooms, data centers, at the desk and network applications to interconnect pre-terminated cassettes in main distribution, horizontal distribution, and equipment distribution areas.
  • Body Style: Duplex
  • Product Type: Fiber Optic Patch Cord
  • Sub Brand: Opti-Core

Packaging Details

  • UPC: 07498373051
  • GTIN Package: 00074983730513
  • Standard Package Volume Ft3: 0.0155
  • Standard Package Weight Pounds: 0.0700
  • Std Package Height In: 1.5
  • Std Package Height MM: 38.1
  • Std Package Length In: 5
  • Std Package Length MM: 127
  • Std Package Width In: 9.5
  • Std Package Width MM: 241.3
  • Std. Pkg. UOM: Piece
  • UOM EA PK: EA
  • Std. Pkg. Qty.: 1
  • GTIN Carton: 50074983730518
  • Standard Carton Volume Ft3: 0.0155
  • Standard Carton Weight Pounds: 0.7000
  • Std Carton Height In: 3.8
  • Std Carton Height MM: 96.52
  • Std Carton Length In: 9.4
  • Std Carton Length MM: 127
  • Std Carton Width In: 7.5
  • Std Carton Width MM: 190.5
  • Std Ctn Qty: 10
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: CR,RO,CN
  • RoHS Compliant: Compliant
  • EAN: 00074983730513
  • REACH Status: False
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Hazardous Material Flag: N
  • Min Order Qty: 10
  • Pallet Quantity: 3,640
  • Pallet Volume: 56.432639
  • Pallet Weight: 254.8000

Overview

UPC 07498373051

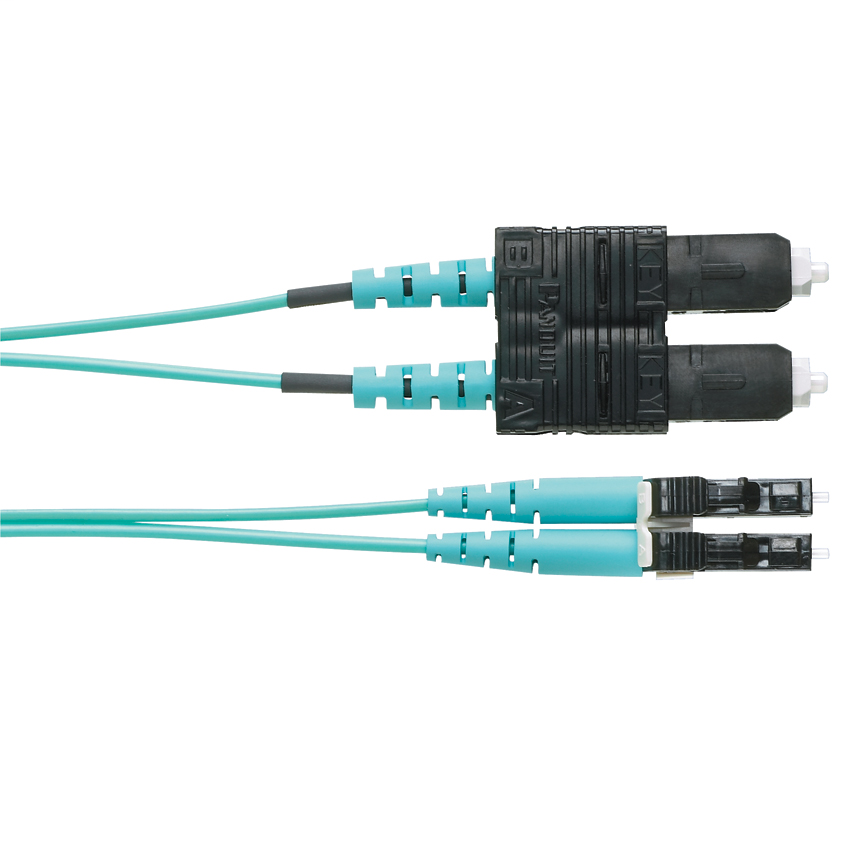

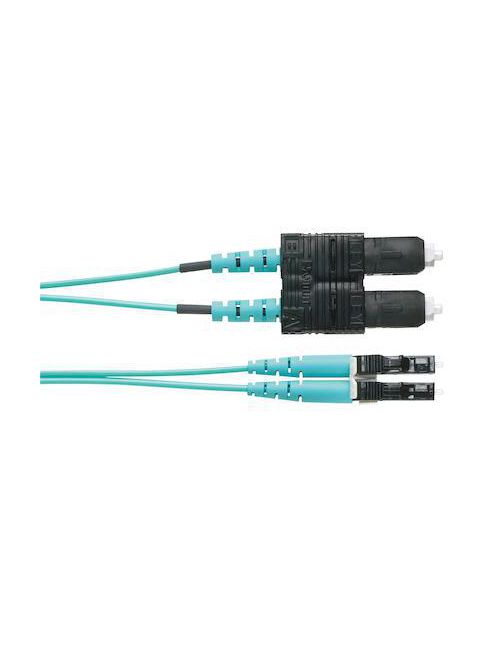

Item Long Description OM3 2 Fiber 1.6mm Jacket Patchcord Riser LC Duplex to SC Duplex Std IL - 1 Meter
GTiN 00074983730513
Country of Origin CN,CR
Fiber Type OM3
Pkg Qty 1
Family Brand Name Panduit
Overall Length 3.28 ft
Number of Fibers 2
Cable Color Aqua
Max Operating Temperature 158 degrees F
Min Operating Temperature -4 degrees F
UNSPSC 43223326
Type Fiber Optic Patch Cord
