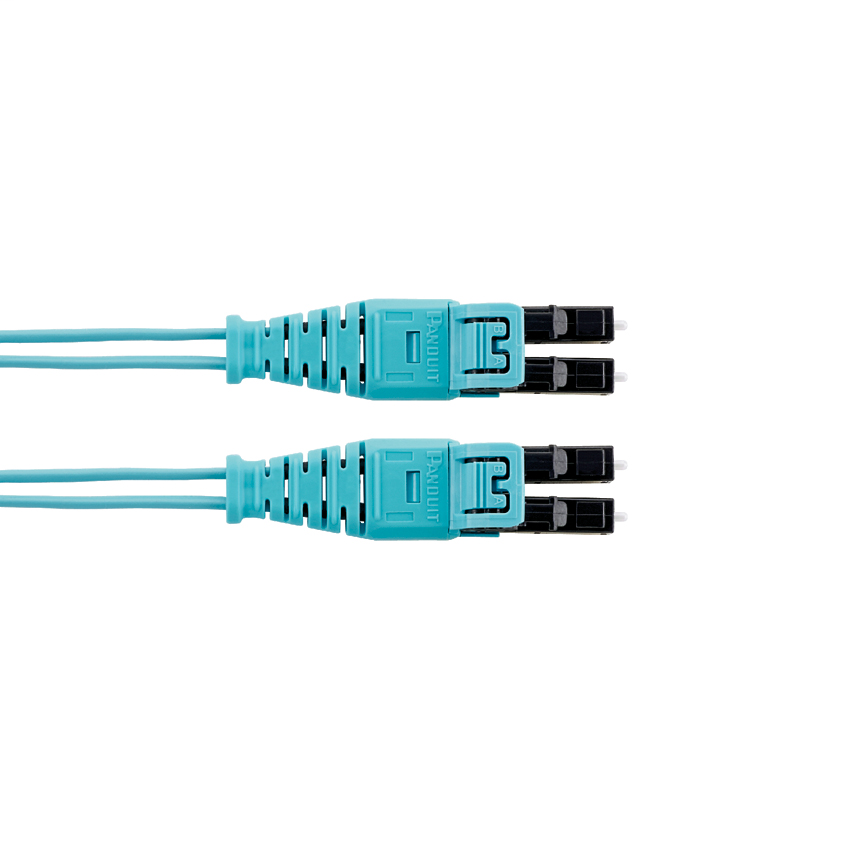

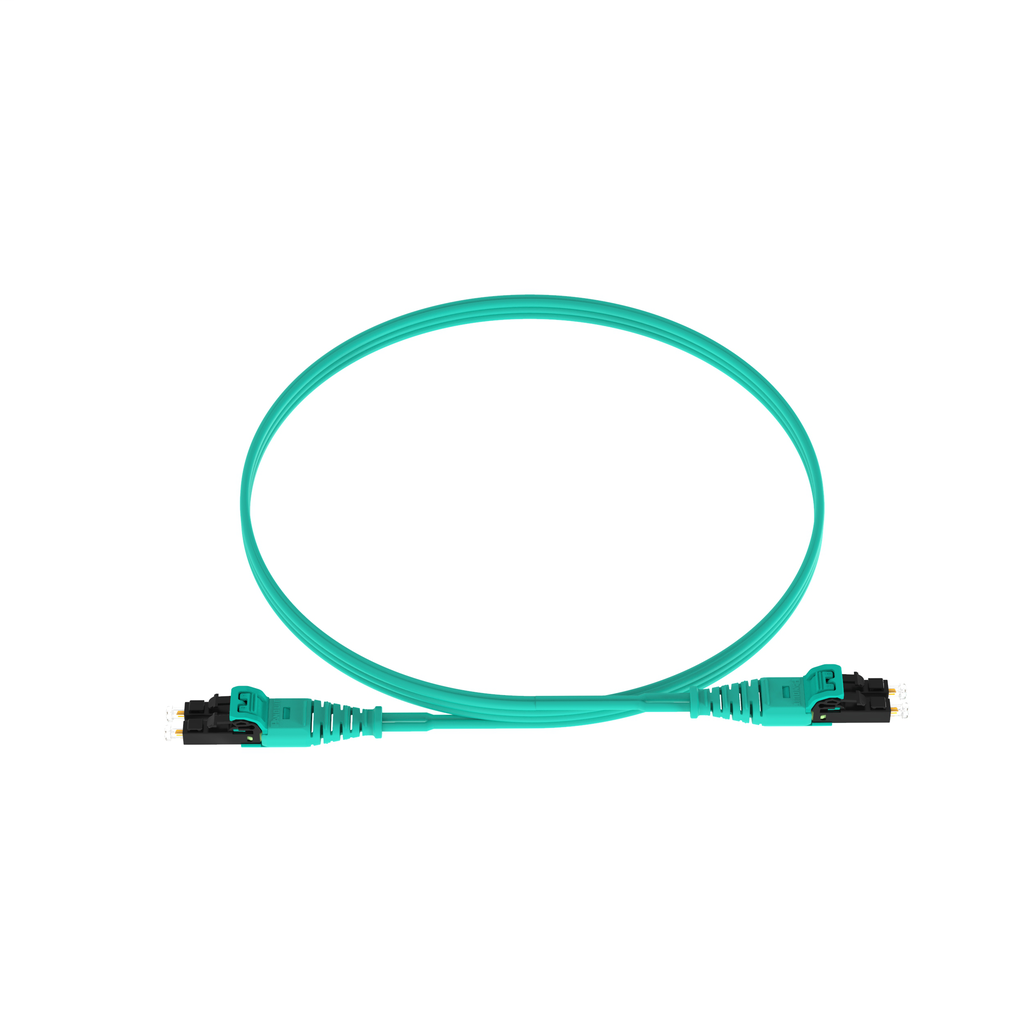

PAN FZ2ERQ1Q1SNM004 Opti-Core® 2 Fi
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$65.33/ea
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # FZ2ERQ1Q1SNM004
North Coast Part # 1165879

Specifications

  • Product Segment: EDI-DC
  • Fiber Type: OM4
  • Number of Fibers: 2
  • Connector 1 Type: LC Push-Pull
  • Connector 2 Type: LC Push-Pull
  • Flammability Rating: Riser
  • Maximum Connector Insertion Loss (dB): 0.25
  • Minimum Connector Return Loss (dB): 26
  • Overall Length (ft.): 13.12
  • Overall Length (m): 4
  • Fiber Diameter (µm): 50
  • Outer Diameter (mm): 1.6
  • Outer Diameter (In.): 0.062
  • Maximum Operating Temperature (°F): 140
  • Maximum Operating Temperature (°C): 60
  • Minimum Operating Temperature (°C): -10
  • Minimum Operating Temperature (°F): 14
  • Maximum Installation Temperature (°C): 60
  • Maximum Installation Temperature (°F): 140
  • Minimum Installation Temperature (°F): 14
  • Minimum Installation Temperature (°C): -10
  • Resistance Properties: Flame-Resistant
  • Cable Color: Aqua
  • Environment: Indoor
  • Standards Met: Meets or exceeds ISO/IEC 11801, TIA-568-C.3,TIA-604-3 (FOCIS-3), TIA-604-10 (FOCIS-10), RoHS Compliant, All patch cord componentsmeet the requirements of Directive 2002/95/EC.
  • Application: Provide interconnect and cross-connect of applications in entrance facilities, telecommunications rooms, data centers, at the desk and network applications to interconnect pre-terminated cassettes in main distribution, horizontal distribution, and equipment distribution areas.
  • Body Style: Duplex
  • Product Type: Fiber Optic Patch Cord
  • Boot Color: Aqua
  • Sub Brand: Opti-Core®

Packaging Details

  • UPC: 07498399469
  • GTIN Package: 00074983994694
  • Standard Package Volume Ft3: 0.0191
  • Standard Package Weight Pounds: 0.1200
  • Std Package Height In: 1
  • Std Package Height MM: 25.4
  • Std Package Length In: 6
  • Std Package Length MM: 152.4
  • Std Package Width In: 12
  • Std Package Width MM: 304.8
  • Std. Pkg. UOM: Piece
  • UOM EA PK: EA
  • Std. Pkg. Qty.: 1
  • GTIN Carton: 50074983994699
  • Standard Carton Volume Ft3: 0.0191
  • Standard Carton Weight Pounds: 1.2000
  • Std Carton Height In: 4.2
  • Std Carton Height MM: 106.68
  • Std Carton Length In: 9.6
  • Std Carton Length MM: 152.4
  • Std Carton Width In: 7.6
  • Std Carton Width MM: 193.04
  • Std Ctn Qty: 10
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: RO,CN,CR
  • RoHS Compliant: Compliant
  • EAN: 00074983994694
  • REACH Status: False
  • California Pro65 Cancer: No
  • Buy American Compliant: N
  • ARRA Compliant: N
  • Mercury Content Indicator: No
  • Hazardous Material Flag: N
  • Min Order Qty: 10
  • Pallet Quantity: 2,880
  • Pallet Volume: 55.025114
  • Pallet Weight: 345.6000

Overview

UPC 07498399469
Item Long Description OM4 2f 1.6mm PC OFNR PushPull LC/PushPull LC Std Polarity Std IL 4m
GTiN 00074983994694
Length 13.12 ft
Color Aqua
Type OM4 10GbE, Multimode, 2-Fiber
Country of Origin China,Costa Rica
Fiber Type OM4
Pkg Qty 1
Family Brand Name Panduit
Overall Length 13.12 ft
Number of Fibers 2
Plug Type LC Duplex Push-Pull
Sub Brand Opti-Core
CA Prop65 Warning No
Connector Type LC Push-Pull
Cable Length 4 m
Fiber Cable Size 50/125 m
Cable Color Aqua
Max Operating Temperature 140 degrees F
Min Operating Temperature 14 degrees F
