PAN GB2B0304TPI-1 Panduit GB2B0304T
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$126.07/ea
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # GB2B0304TPI-1
North Coast Part # 933431

Specifications

  • Product Segment: IEI
  • Sub Brand: StructuredGround™
  • Material: Copper
  • Overall Length (In.): 10
  • Overall Length (mm): 254
  • Overall Width (mm): 50.8
  • Overall Width (In.): 2
  • Overall Height (mm): 69.9
  • Overall Height (In.): 2.75
  • Stud Hole Size (mm): 11.17
  • Stud Hole Size (In.): 0.44
  • Overall Thickness (mm): 6.4
  • Finish/Coating: Tin-Plated
  • Overall Thickness (In.): 0.25
  • Standards Met: BICSI/TIA-607-C, cULus
  • Application: Telecom/Data Center
  • Product Type: Telecommunications Grounding Busbars
  • Keywords: Busbars

Packaging Details

  • UPC: 07498365926
  • GTIN Package: 00074983659265
  • Standard Package Volume Ft3: 0.0030
  • Standard Package Weight Pounds: 1.6880
  • Std Package Height In: 5.6
  • Std Package Height MM: 142.24
  • Std Package Length In: 13.55
  • Std Package Length MM: 344.17
  • Std Package Width In: 9.05
  • Std Package Width MM: 229.87
  • Std. Pkg. UOM: Piece
  • UOM EA PK: EA
  • Std. Pkg. Qty.: 1
  • Standard Carton Volume Ft3: 0.0030
  • Standard Carton Weight Pounds: 0.0000
  • Std Carton Length MM: 344.17
  • Std Ctn Qty: 0
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: US
  • RoHS Compliant: Compliant
  • EAN: 00074983659265
  • REACH Status: False
  • California Pro65 Cancer: No
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Lead Content Indicator: N
  • Restricted Use of Hazardous Substances: N
  • Hazardous Material Flag: N
  • Min Order Qty: 1
  • Pallet Quantity: 96
  • Pallet Volume: 0.000000
  • Pallet Weight: 162.0480

Overview

UPC 07498365926

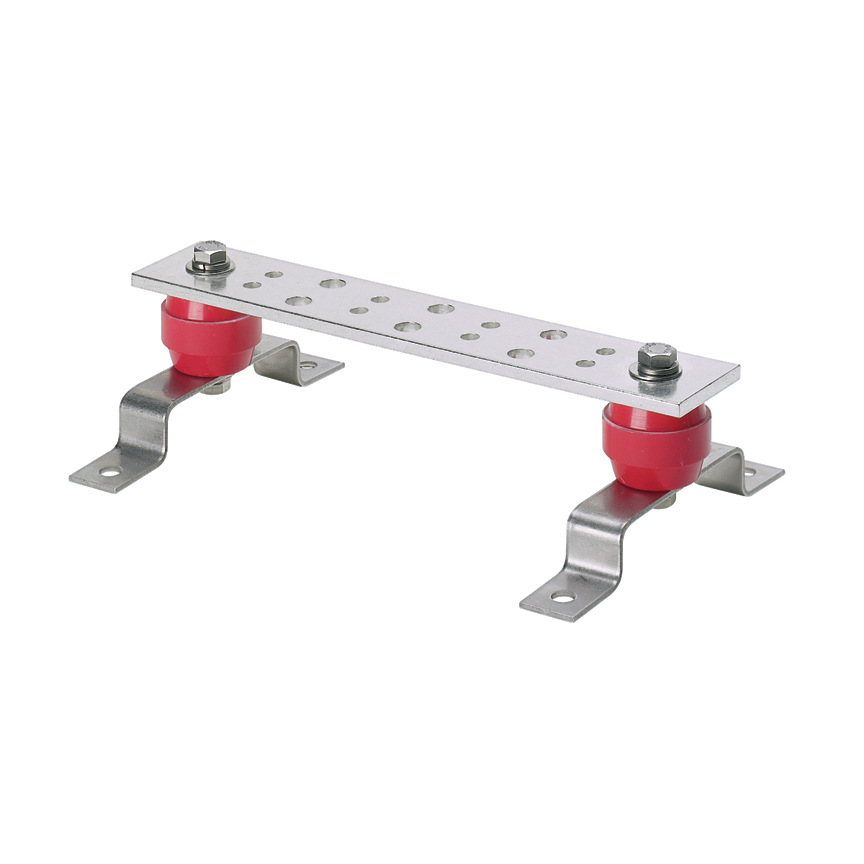

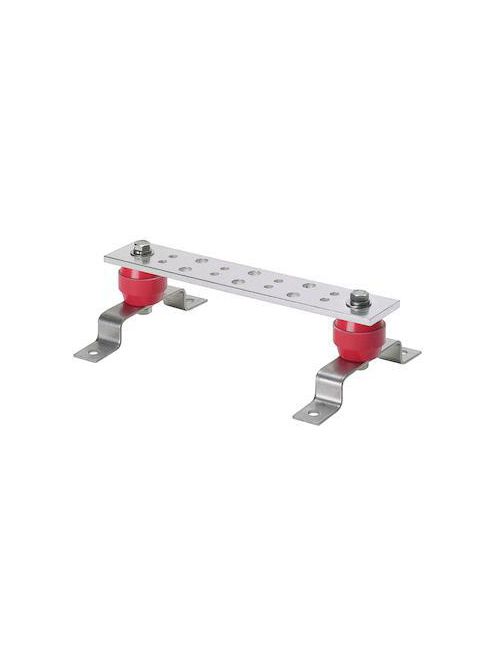

Item Long Description The GB2B0304TPI-1 Grounding Busbar meets BICSI and J-STD-607-A requirements for network systems grounding applications. Made of high conductivity copper and tin-plated to inhibit corrosion, comes pre-assembled with brackets and insulators attached for a quick installation. The insulators provide 600 V of insulation and use of Panduit self-laminating laser/ink jet labels to identify busbars.
GTiN 00074983659265
Length 10 in
Finish Tin-Plated
Width 2 in
Size 10 IN
Type Telecommunications Grounding Busbars
Material Copper
Height 2.75 in
Country of Origin US
Pkg Qty 1
Family Brand Name Panduit
Construction Flat
Sub Brand StructuredGround
CA Prop65 Warning No
Applications NA
