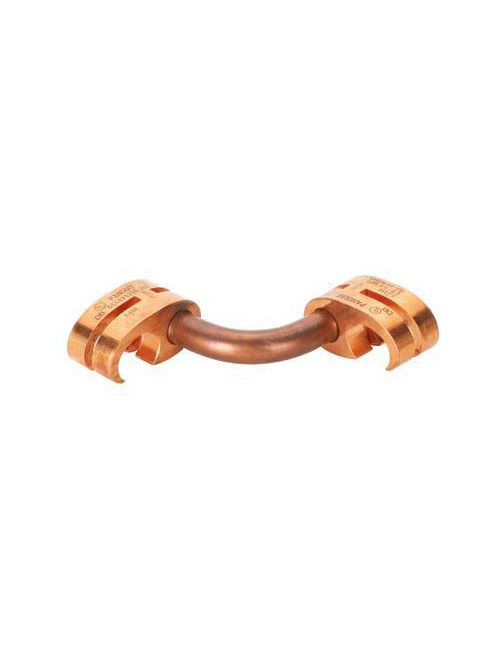

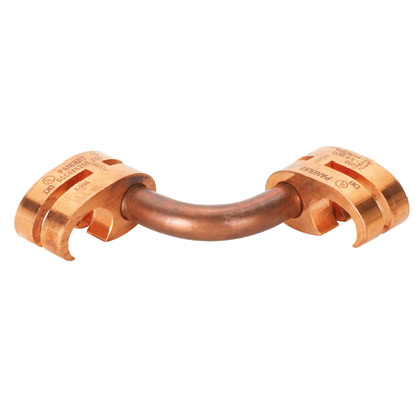

PAN GCC6X6250-250 Panduit GCC6X6250
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$99.08/ea
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # GCC6X6250-250
North Coast Part # 933432

Specifications

  • Product Segment: IEI
  • Sub Brand: StructuredGround™
  • Connector Type: Cross Connector
  • Overall Length (mm): 26.9
  • Overall Length (In.): 1.06
  • Overall Width (mm): 25.4
  • Material: High Conductivity Copper
  • Overall Width (In.): 1
  • Overall Height (In.): 2.12
  • Overall Height (mm): 53.3
  • Maximum Copper Conductor Size (kcmil): 250
  • Minimum Copper Conductor Size (AWG SOL): 2
  • Maximum Ground Rod Size (In.): 5/8
  • Maximum Ground Rod Size (mm): 15.87
  • Minimum Ground Rod Size (mm): 12.7
  • Minimum Ground Rod Size (In.): 1/2
  • Maximum Rebar Size (In.): 1/2
  • Maximum Rebar Size (mm): 12.7
  • Maximum Rebar Size (AWG): 4
  • Minimum Rebar Size (mm): 9.52
  • Minimum Rebar Size (AWG): 3
  • Minimum Rebar Size (In.): 3/8
  • Panduit Die Index Number: PG25
  • Color Code: Black
  • Standards Met: IEEE Std 837™– 2002 UL 467 Listed and CSA 22.2 Certified
  • Application: Utility/Ground Grid
  • Product Type: Cross Connector

Packaging Details

  • UPC: 07498300948
  • GTIN Package: 00074983009480
  • Standard Package Volume Ft3: 0.0417
  • Standard Package Weight Pounds: 1.0000
  • Std Package Height In: 1
  • Std Package Height MM: 25.4
  • Std Package Length In: 9
  • Std Package Length MM: 228.6
  • Std Package Width In: 8
  • Std Package Width MM: 203.2
  • Std. Pkg. UOM: Piece
  • UOM EA PK: EA
  • Std. Pkg. Qty.: 1
  • Standard Carton Volume Ft3: 0.0417
  • Standard Carton Weight Pounds: 0.0000
  • Std Carton Length MM: 228.6
  • Std Ctn Qty: 0
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: MX
  • RoHS Compliant: Compliant
  • EAN: 00074983009480
  • REACH Status: False
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Hazardous Material Flag: N
  • Min Order Qty: 1
  • Pallet Quantity: 0
  • Pallet Volume: 0.000000
  • Pallet Weight: 0.0000

Overview

UPC 07498300948
Item Long Description The GCC6X6250-250 Compression Connector Tap provides high-strength and premium electrical properties. It is suitable for use with solid and stranded copper Code conductors. Used for tapping conductor to conductor and conductor to ground rod and rebar applications. Use with copper clad, solid copper and stainless steel ground rod types. Meets UL486A-486B up to for 35kV for power applications temp rated 90C. Meets cULus Listed to UL 467 for direct burial in earth and concrete.
GTiN 00074983009480
Width 26.9 mm
Color Black
Type Cross Connector
Material Copper
Number of Holes 0
Height 53.8 mm
Country of Origin MX
Pkg Qty 1
Family Brand Name Panduit
Overall Length 25.4 mm
Color Coding Black
Sub Brand SturcturedGround
