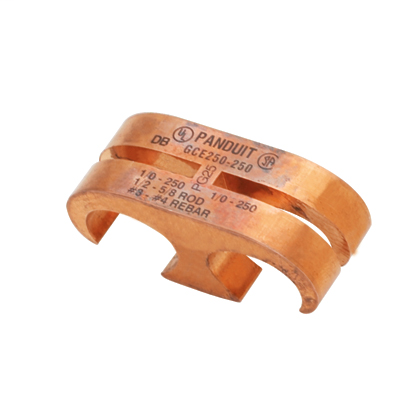

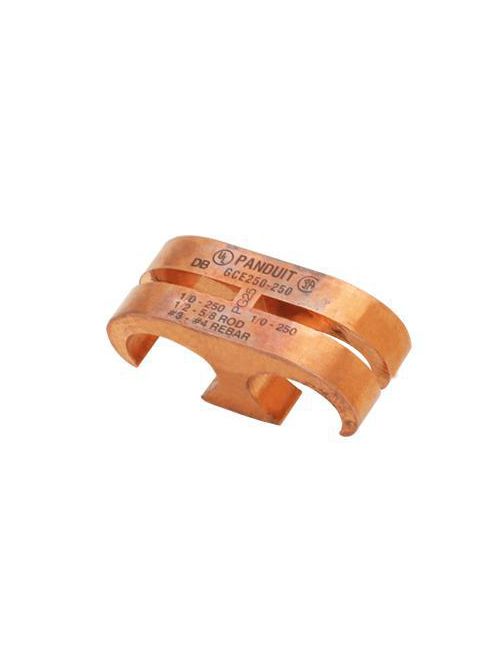

Panduit GCE250-250 1/0 STR  250 MCM E Style Ground Connector
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$36.60/ea
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # GCE250-250
North Coast Part # 933433

Specifications

  • Product Segment: IEI
  • Sub Brand: StructuredGround™
  • Connector Type: E-Style Connector
  • Overall Length (In.): 1
  • Overall Length (mm): 25.4
  • Overall Width (mm): 27.4
  • Material: High Conductivity Copper
  • Overall Width (In.): 1.08
  • Overall Height (In.): 2.66
  • Overall Height (mm): 67.5
  • Maximum Copper Conductor Size (kcmil): 250
  • Maximum Copper Conductor Size (AWG STR): 250
  • Minimum Copper Conductor Size (AWG STR): 1/0
  • Maximum Ground Rod Size (In.): 5/8
  • Maximum Ground Rod Size (mm): 15.87
  • Minimum Ground Rod Size (In.): 1/2
  • Minimum Ground Rod Size (mm): 12.7
  • Maximum Rebar Size (In.): 1/2
  • Maximum Rebar Size (mm): 12.7
  • Minimum Rebar Size (In.): 3/8
  • Minimum Rebar Size (mm): 9.52
  • Panduit Die Index Number: PG25
  • Color Code: Black
  • Standards Met: IEEE Std 837-2002, cULus listed, UL467, CSA 22.2
  • Application: Utility/Ground Grid
  • Product Type: E-Tap Grounding Connectors

Packaging Details

  • UPC: 07498300956
  • GTIN Package: 00074983009565
  • Standard Package Volume Ft3: 0.0181
  • Standard Package Weight Pounds: 0.3500
  • Std Package Height In: 2.2
  • Std Package Height MM: 55.88
  • Std Package Length In: 5.25
  • Std Package Length MM: 133.35
  • Std Package Width In: 4.8
  • Std Package Width MM: 121.92
  • Std. Pkg. UOM: Piece
  • UOM EA PK: EA
  • Std. Pkg. Qty.: 1
  • Standard Carton Volume Ft3: 0.0181
  • Standard Carton Weight Pounds: 0.0000
  • Std Carton Length MM: 133.35
  • Std Ctn Qty: 0
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: MX
  • RoHS Compliant: Compliant
  • EAN: 00074983009565
  • REACH Status: False
  • California Pro65 Cancer: No
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Lead Content Indicator: N
  • Restricted Use of Hazardous Substances: N
  • Hazardous Material Flag: N
  • Min Order Qty: 1

Overview

UPC 07498300956
GTiN 00074983009565
Width 1.08 in
Color Black
Type E-Tap Grounding Connectors
Material Copper
Number of Holes 0
Height 2.66 in
Country of Origin MX
Pkg Qty 1
Family Brand Name Panduit
Carton Qty 0
Overall Length 1 in
Color Coding Black
Sub Brand StructuredGround
CA Prop65 Warning No
Conductor Size 1/0 AWG - 250 MCM
Blade Dimensions 1 in L x 1.08 in W x 2.66 in H
