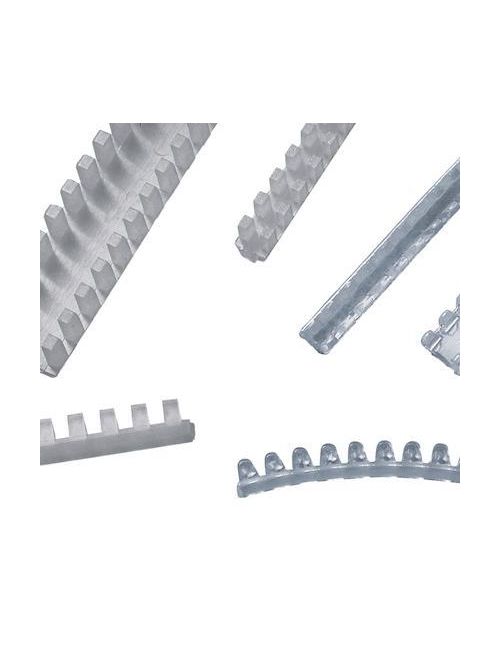

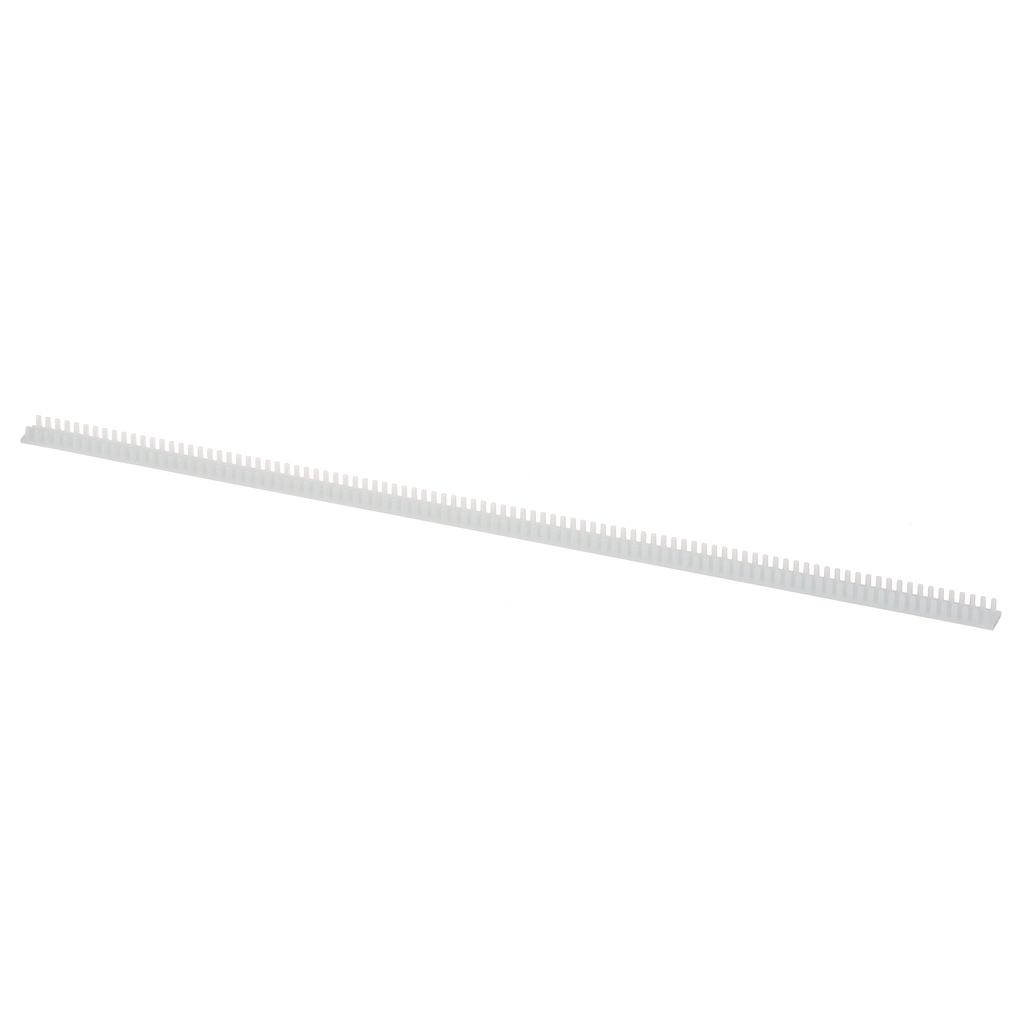

Panduit GE255-L Nylon Natural Slotted Grommet Edging Strip
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$282.52/c (100 ea)
Usually ships within 6 to 10 Days
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # GE255-L
North Coast Part # 426063

Specifications

  • Product Segment: IEI
  • Product Type: Grommet Edging
  • Note: Complies to National Aerospace Standard NAMS21266 (Formerly Military Standard MS21266)
  • Color: Natural
  • Flammability Rating: UL94V-2
  • Material: Nylon 6.6
  • Maximum Compatible Panel Thickness (mm): 6.5
  • Maximum Compatible Panel Thickness (In.): 0.255
  • Maximum Operating Temperature (°F): 149
  • Maximum Operating Temperature (°C): 65
  • Minimum Compatible Panel Thickness (In.): 0.192
  • Minimum Compatible Panel Thickness (mm): 4.9
  • Minimum Operating Temperature (°F): -40
  • Minimum Operating Temperature (°C): -40
  • Overall Height (mm): 6.1
  • Overall Height (In.): 0.24
  • Overall Width (mm): 9.8
  • Overall Width (In.): 0.39
  • Overall Length (ft.): 1.06
  • Overall Length (m): 0.3
  • Resistance Properties: Abrasion Protection
  • Standards Met: RoHS Compliant; NAMS21266 (formerly Military Standard MS21266)
  • Application: To Protect and Prevent Wires and Cables from Chafing Against Sharp Edges of Panel Walls and Knockouts.

Packaging Details

  • UPC: 07498360138
  • GTIN Package: 00074983601387
  • Standard Package Volume Ft3: 0.0743
  • Standard Package Weight Pounds: 1.1000
  • Std Package Height In: 1.3
  • Std Package Height MM: 33.02
  • Std Package Length In: 14.2
  • Std Package Length MM: 360.68
  • Std Package Width In: 5.75
  • Std Package Width MM: 146.05
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 50
  • GTIN Carton: 50074983601382
  • Standard Carton Volume Ft3: 0.0743
  • Standard Carton Weight Pounds: 11.0000
  • Std Carton Height In: 9.35
  • Std Carton Height MM: 237.49
  • Std Carton Length In: 14.4
  • Std Carton Length MM: 360.68
  • Std Carton Width In: 9
  • Std Carton Width MM: 228.6
  • Std Ctn Qty: 500
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: CR
  • RoHS Compliant: Compliant
  • EAN: 00074983601387
  • REACH Status: False
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Hazardous Material Flag: N
  • Min Order Qty: 50

Overview

UPC 07498360138
Item Long Description The GE255-L National Aerospace Standard Slotted Grommet Edging protects and prevents wires and cables from chafing against sharp edges of panel walls and knockouts. Nylon material. Designed for 0.192" - 0.255" (4.9 mm - 6.5 mm) thick panels. 12.75" (323.9 mm) long. Color Natural. 50 per package.
GTiN 00074983601387
Width 0.39 in
Size 0.385 IN
Color Natural
Type Grommet Edging
Material Nylon
Height 0.24 in
Country of Origin Costa Rica
Pkg Qty 50
Family Brand Name Panduit
Max Operating Temperature 149 degrees F
Overall Length 1.06 ft
Min Operating Temperature -40 degrees F
