PAN GEE134N-C Grom Edg Slit,.21"x.1

Specifications

• UNSPSC: 39131603
• Product Segment: IEI
• Product Type: Slotted Grommet Edging
• Color: Natural
• Flammability Rating: UL94V-2
• Material: Nylon 6.6
• Maximum Compatible Panel Thickness (mm): 3.6
• Maximum Compatible Panel Thickness (In.): 0.14
• Maximum Operating Temperature (°F): 149
• Maximum Operating Temperature (°C): 65
• Minimum Compatible Panel Thickness (In.): 0.13
• Minimum Compatible Panel Thickness (mm): 3.2
• Minimum Operating Temperature (°C): -40
• Minimum Operating Temperature (°F): -40
• Overall Height (mm): 3.6
• Overall Height (In.): 0.14
• Overall Width (mm): 5.3
• Overall Width (In.): 0.21
• Overall Length (m): 30.5
• Overall Length (ft.): 100
• Resistance Properties: Abrasion Protection
• Standards Met: RoHS Compliant

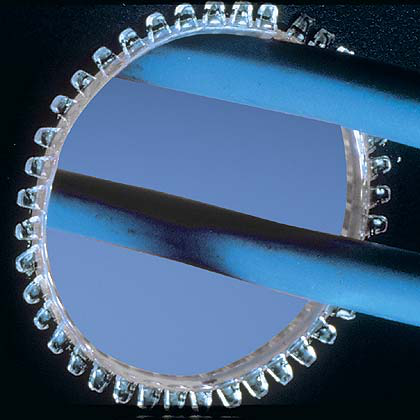

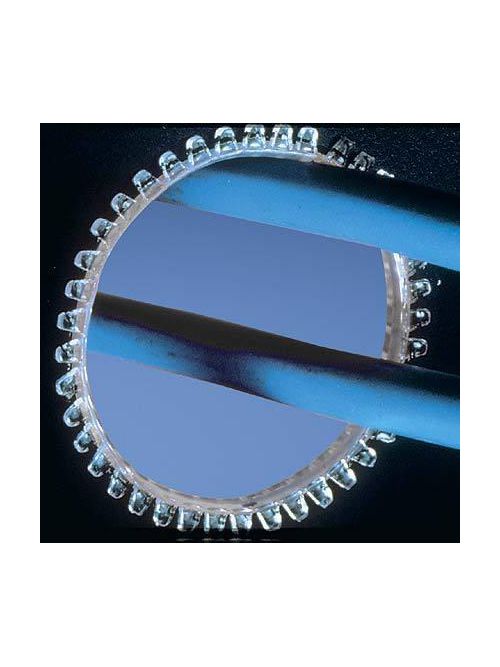

• Application: To Protect and Prevent Wires and Cables from Chafing Against Sharp Edges of Panel Walls and Knockouts.

Packaging Details

• UPC: 07498360200
• GTIN Package: 00074983602001
• Standard Package Volume Ft3: 0.1269
• Standard Package Weight Pounds: 0.9000
• Std Package Height In: 3
• Std Package Height MM: 76.2
• Std Package Length In: 8.5
• Std Package Length MM: 215.9
• Std Package Width In: 8.5
• Std Package Width MM: 215.9
• Std. Pkg. UOM: Roll
• UOM EA PK: EA
• Std. Pkg. Qty.: 1
• Standard Carton Volume Ft3: 0.1269
• Standard Carton Weight Pounds: 0.0000
• Std Carton Length MM: 215.9
• Std Ctn Qty: 0
• Min. Order UOM: Roll
• Country of Origin 2Digit: JP
• RoHS Compliant: Compliant
• EAN: 00074983602001
• REACH Status: False
• Buy American Compliant: Y
• ARRA Compliant: Y
• Mercury Content Indicator: No
• Hazardous Material Flag: N
• Min Order Qty: 1
• Pallet Quantity: 0
• Pallet Volume: 0.000000
• Pallet Weight: 0.0000
