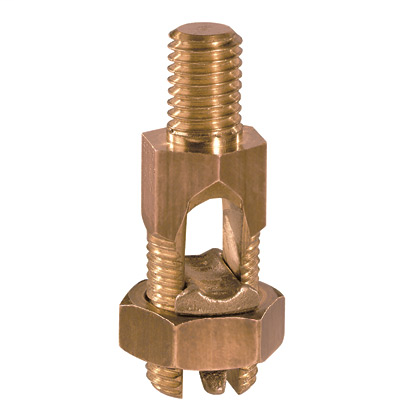

PAN GSP2-10-4-C Service Post,#10SOL
Product image thumbnail 0
Product image thumbnail 1
$2,469.45/c (100 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # GSP2-10-4-C
North Coast Part # 1340415

Specifications

  • UNSPSC: 39121408
  • Product Segment: IEI
  • Sub Brand: StructuredGround
  • Material: High Copper Content Hard Drawn Rod
  • Overall Length (mm): 33
  • Overall Length (In.): 1.3
  • Stud Length (In.): 0.83
  • Stud Length (mm): 21
  • Standards Met: cULus Listed - 467, DB Rated
  • Product Type: Grounding Connectors - Service Post, Male Stud
  • Keywords: Complement component for earthing and lightning protection, cover, lightning protection

Packaging Details

  • UPC: 61305600892
  • GTIN Package: 00613056008922
  • Standard Package Volume Ft3: 0.1755
  • Standard Package Weight Pounds: 10.6000
  • Std Package Height In: 4.6
  • Std Package Height MM: 116.84
  • Std Package Length In: 10.3
  • Std Package Length MM: 261.62
  • Std Package Width In: 6.4
  • Std Package Width MM: 162.56
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 100
  • Standard Carton Volume Ft3: 0.1755
  • Standard Carton Weight Pounds: 0.0000
  • Std Carton Length MM: 261.62
  • Std Ctn Qty: 0
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: BR
  • RoHS Compliant: RoHS directive is not applicable
  • EAN: 00613056008922
  • REACH Status: False
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Hazardous Material Flag: N
  • Min Order Qty: 1

Categories

Overview

UPC 61305600892
Item Long Description Bronze, service post connector, ,#10SOL-#4STR, male, two cable, type GSP2.
GTiN 00613056008922
Type Grounding Connectors - Service Post, Male Stud
Material High Copper Content Hard Drawn Rod
Applications Male Stud, For grounding one copper code conductor to steel structures, busbars, or transformers or for tapping busbar with a hex nut and washer
Country of Origin BR
Pkg Qty 100
Family Brand Name Panduit
Overall Length 1.3 in
Sub Brand StructuredGround
UNSPSC 39121408
