PAN GUBC500-6 Panduit GUBC500-6 Uni
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$298.91/ea
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # GUBC500-6
North Coast Part # 933435

Specifications

  • Product Segment: IEI
  • Sub Brand: StructuredGround™
  • Overall Length (In.): 3.15
  • Overall Length (mm): 80
  • Material: Copper
  • Overall Width (mm): 54
  • Overall Width (In.): 2.13
  • Overall Height (In.): 2.5
  • Overall Height (mm): 63.5
  • Stud Hole Spacing (In.): 0.5
  • Stud Hole Spacing (mm): 12.7
  • Standards Met: Meets - IEEE 837-2002, Meets IEEE 837-2014 for up to 250 kcmil, UL 467 & DB rated, CSA 22.2, complies with vibration tests per MIL-STD-202G (METHOD 201A).
  • Application: Utility/Ground Grid
  • Product Type: Beam Grounding Clamp
  • Keywords: Protection cover, Cover, Lightning protection

Packaging Details

  • UPC: 07498300961
  • GTIN Package: 00074983009619
  • Standard Package Volume Ft3: 0.0203
  • Standard Package Weight Pounds: 3.4800
  • Std Package Height In: 2.6
  • Std Package Height MM: 66.04
  • Std Package Length In: 4.3
  • Std Package Length MM: 109.22
  • Std Package Width In: 3.15
  • Std Package Width MM: 80.01
  • Std. Pkg. UOM: Piece
  • UOM EA PK: EA
  • Std. Pkg. Qty.: 1
  • Standard Carton Volume Ft3: 0.0203
  • Standard Carton Weight Pounds: 0.0000
  • Std Carton Length MM: 109.22
  • Std Ctn Qty: 0
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: MX
  • RoHS Compliant: Compliant
  • EAN: 00074983009619
  • REACH Status: False
  • California Pro65 Cancer: No
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Lead Content Indicator: N
  • Restricted Use of Hazardous Substances: N
  • Hazardous Material Flag: N
  • Min Order Qty: 1

Overview

UPC 07498300961

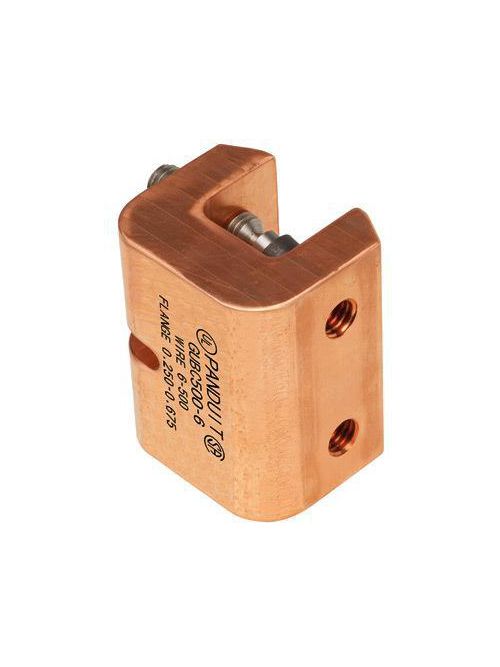

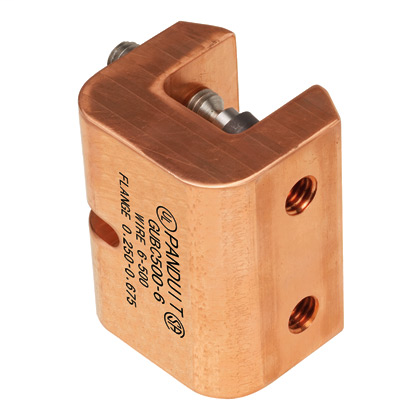

Item Long Description The GUBC500-6 Universal beam grounding clamp fits on a wide range of standard (angled) and wide flange (parallel) structural steel beams providing a mounting pad suitable for a two-hole compression lug. Install quickly and easily with standard 1/4" key hex wrench tooling.
GTiN 00074983009619
Width 2.13 in
Type Beam Grounding Clamp
Height 2.5 in
Country of Origin MX
Pkg Qty 1
Family Brand Name Panduit
Overall Length 3.15 in
Sub Brand SturcturedGround
CA Prop65 Warning No
