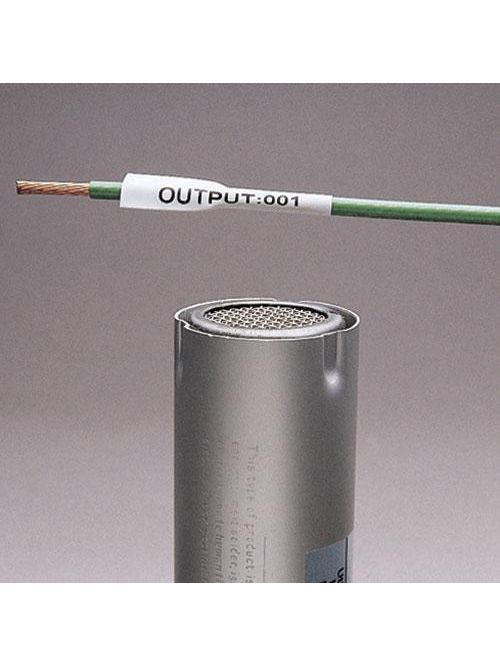

Panduit H000X034H1C 8 Foot x 0.34 Inch 18 to 12 AWG White Polyolefin Heat Shrink Label

Specifications

• Product Segment: IEI
• Product Type: Heat Shrink Wire/Cable Label
• Note: For use with LS8E and LS8EQ printers
• Color: White
• Compatible Wire Gauge (AWG): 18-12
• Material: Polyolefin
• Resistance Properties: Military Grade
• Standards Met: MIL-M-81531 and MIL-STD-202G Method 215K, Solution A, C, and D. UL Standard 224 for flammability.
• Sub Brand: P1™
• Minimum Cable Diameter (In.): 0.06
• Minimum Cable Diameter (mm): 1.5
• Maximum Cable Diameter (In.): 0.19
• Maximum Cable Diameter (mm): 4.8
• Label Height (In.): 0.34
• Label Height (mm): 8.6
• Roll Length (ft.): 8
• Roll Length (m): 2.4
• Minimum Operating Temperature (°C): -55
• Minimum Operating Temperature (°F): -67
• Maximum Operating Temperature (°F): 275
• Maximum Operating Temperature (°C): 135

Packaging Details

• UPC: 07498366369
• GTIN Package: 00074983663699
• Standard Package Volume Ft3: 0.0931
• Standard Package Weight Pounds: 0.5400
• Std Package Height In: 2.05
• Std Package Height MM: 52.07
• Std Package Length In: 4.35
• Std Package Length MM: 110.49
• Std Package Width In: 2.85
• Std Package Width MM: 72.39
• Std. Pkg. UOM: Piece
• UOM EA PK: EA
• Std. Pkg. Qty.: 1
• GTIN Carton: 50074983663694
• Standard Carton Volume Ft3: 0.0931
• Standard Carton Weight Pounds: 5.4000
• Std Carton Height In: 5.85
• Std Carton Height MM: 148.59
• Std Carton Length In: 10.5
• Std Carton Length MM: 110.49
• Std Carton Width In: 6.05
• Std Carton Width MM: 153.67
• Std Ctn Qty: 10
• Min. Order UOM: Piece
• Country of Origin 2Digit: CR
• RoHS Compliant: Compliant
• EAN: 00074983663699
• REACH Status: False
• California Pro65 Cancer: No
• Buy American Compliant: Y
• ARRA Compliant: Y
• Mercury Content Indicator: No
• Lead Content Indicator: N
• Restricted Use of Hazardous Substances: N
• Hazardous Material Flag: N
• Min Order Qty: 10
