PAN H100X064H1T Panduit H100X064H1T
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$714.26/ea
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # H100X064H1T
North Coast Part # 821390

Specifications

  • Product Segment: IEI
  • Product Type: Heat-Shrink Label
  • Color: White
  • Compatible Wire Gauge (AWG): 12-6
  • Diameter (mm): 9.7
  • Diameter (In.): 0.38
  • Material: Polyolefin
  • Flammability Rating: VW-1
  • Number of Labels: 1000
  • Number of Labels per Row: 2
  • Number of Sides: 1
  • Maximum Operating Temperature (°C): 135
  • Maximum Operating Temperature (°F): 275
  • Minimum Operating Temperature (°F): -67
  • Minimum Operating Temperature (°C): -55
  • Overall Height (In.): 0.64
  • Overall Height (mm): 16.3
  • Overall Width (mm): 25.4
  • Overall Width (In.): 1
  • Resistance Properties: Military Grade
  • Standards Met: Meets UL Standard 224 for flammability and AMS-DTL-23053/5C (Class 1 and Class 3). Meets SAE-AS81531, MIL-STD-883F Method 2015.13, Solutions A, B, and D, and D202F, and MIL-STD-202G Method 215K, Solutions A, C, and D when printed with resin or hybrid thermal transfer ribbons. RoHS Compliant.
  • Sub Brand: Pan-Code®

Packaging Details

  • UPC: 07498352259
  • GTIN Package: 00074983522590
  • Standard Package Volume Ft3: 0.1927
  • Standard Package Weight Pounds: 2.3500
  • Std Package Height In: 8.5
  • Std Package Height MM: 215.9
  • Std Package Length In: 8.65
  • Std Package Length MM: 219.71
  • Std Package Width In: 5.25
  • Std Package Width MM: 133.35
  • Std. Pkg. UOM: Roll
  • UOM EA PK: EA
  • Std. Pkg. Qty.: 1
  • Standard Carton Volume Ft3: 0.1927
  • Standard Carton Weight Pounds: 0.0000
  • Std Carton Length MM: 219.71
  • Std Ctn Qty: 0
  • Min. Order UOM: Roll
  • Country of Origin 2Digit: US
  • RoHS Compliant: Compliant
  • EAN: 00074983522590
  • REACH Status: False
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Hazardous Material Flag: N
  • Min Order Qty: 1

Categories

Overview

UPC 07498352259

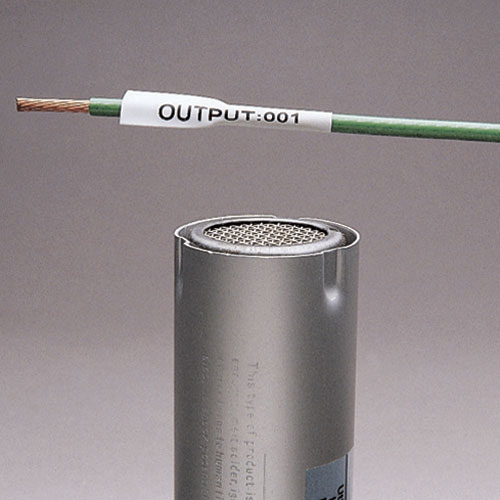

Item Long Description The H100X064H1T Military-Grade Polyolefin Heat-Shrink Label is a single-sided printable. It offers crisp, clear legends with superior readability for quick and easy label production. The heat-shrink sleeve is designed to provide a clear, reliable, and durable way to identify wires and cables. Designed for use with Panduit TDP printers. Shrink ratio 3:1. 1" x 0.64" (25.4 mm x 16.3 mm). Color White. 1000 labels per roll.
GTiN 00074983522590
Length 16.3 mm
Width 1 in
Size 1.00 x 0.64 IN
Color White
Type Heat-Shrink Label
Diameter 9.5 mm
Material Super-Tack Polyester
Height 0.64 in
Country of Origin US
Pkg Qty 1
Family Brand Name Panduit
Max Operating Temperature 275 degrees F
Overall Length 0 in
Min Operating Temperature -67 degrees F
Sub Brand Pan-Code
