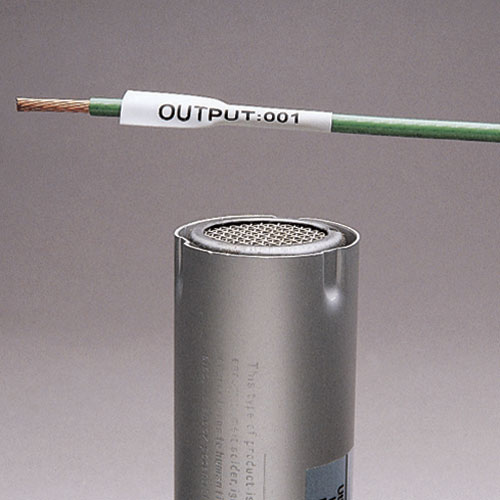

PAN H200X025H1T TT,Heat Shrink,2"x.

Specifications

• Product Segment: IEI
• Product Type: Heat-Shrink Label
• Color: White
• Compatible Wire Gauge (AWG): 22-18
• Diameter (In.): 0.13
• Diameter (mm): 3.3
• Material: Polyolefin
• Flammability Rating: VW-1
• Number of Labels: 500
• Number of Labels per Row: 1
• Number of Sides: 1
• Maximum Operating Temperature (°C): 135
• Maximum Operating Temperature (°F): 275
• Minimum Operating Temperature (°F): -67
• Minimum Operating Temperature (°C): -55
• Overall Height (mm): 6.4
• Overall Height (In.): 0.25
• Overall Width (mm): 50.8
• Overall Width (In.): 2
• Resistance Properties: Military Grade
• Standards Met: Meets UL Standard 224 for flammability and AMS-DTL-23053/5C (Class 1 and Class 3). Meets SAE-AS81531, MIL-STD-883F Method 2015.13, Solutions A, B, and D, and D202F, and MIL-STD-202G Method 215K, Solutions A, C, and D when printed with resin or hybrid thermal transfer ribbons. RoHS Compliant.
• Sub Brand: Pan-Code®

Packaging Details

• UPC: 07498352506
• GTIN Package: 00074983525065
• Standard Package Volume Ft3: 0.1239
• Standard Package Weight Pounds: 2.3500
• Std Package Height In: 5.05
• Std Package Height MM: 128.27
• Std Package Length In: 6.55
• Std Package Length MM: 166.37
• Std Package Width In: 6.5
• Std Package Width MM: 165.1
• Std. Pkg. UOM: Roll
• UOM EA PK: EA
• Std. Pkg. Qty.: 1
• Standard Carton Volume Ft3: 0.1239
• Standard Carton Weight Pounds: 0.0000
• Std Carton Length MM: 166.37
• Std Ctn Qty: 0
• Min. Order UOM: Roll
• Country of Origin 2Digit: US
• RoHS Compliant: Compliant
• EAN: 00074983525065
• REACH Status: False
• Buy American Compliant: Y
• ARRA Compliant: Y
• Mercury Content Indicator: No
• Hazardous Material Flag: N
• Min Order Qty: 1
