PAN HCME06A12-M130 Panduit HCME06A1
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$134.27/m (1000 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Order in multiples of 1000 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # HCME06A12-M130
North Coast Part # 1346828

Specifications

  • Product Segment: IEI
  • Application: Vertical and Horizontal Loading Configurations with Integral “Spring” Holds Wire Bundles Tightly
  • Product Type: Nylon Edge Clip
  • Body Material: Acetal
  • Color: Black
  • Environment: Outdoor
  • Maximum Bundle Diameter (mm): 9
  • Maximum Bundle Diameter (In.): 0.35
  • Maximum Compatible Panel Thickness (In.): 0.04
  • Maximum Compatible Panel Thickness (mm): 1.2
  • Mount Method: Clip onto Edge
  • Mounting Hole Diameter (In.): 0.43
  • Mounting Hole Diameter (mm): 11
  • Overall Height (mm): 18
  • Overall Height (In.): 0.7
  • Overall Length (In.): 0.72
  • Overall Length (mm): 18.3
  • Overall Width (mm): 14
  • Overall Width (In.): 0.55
  • Resistance Properties: Weather Resistant
  • Standards Met: RoHS Complaint

Packaging Details

  • UPC: 07498373556
  • GTIN Package: 00074983735563
  • Standard Package Volume Ft3: 0.2593
  • Standard Package Weight Pounds: 0.2000
  • Std Package Height In: 2
  • Std Package Height MM: 50.8
  • Std Package Length In: 16
  • Std Package Length MM: 406.4
  • Std Package Width In: 14
  • Std Package Width MM: 355.6
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 1000
  • Standard Carton Volume Ft3: 0.2593
  • Standard Carton Weight Pounds: 0.0000
  • Std Carton Length MM: 406.4
  • Std Ctn Qty: 0
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: DE
  • RoHS Compliant: Compliant
  • EAN: 00074983735563
  • REACH Status: False
  • California Pro65 Cancer: No
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Hazardous Material Flag: N
  • Min Order Qty: 5,000
  • Pallet Quantity: 0
  • Pallet Volume: 0.000000
  • Pallet Weight: 0.0000

Overview

UPC 07498373556

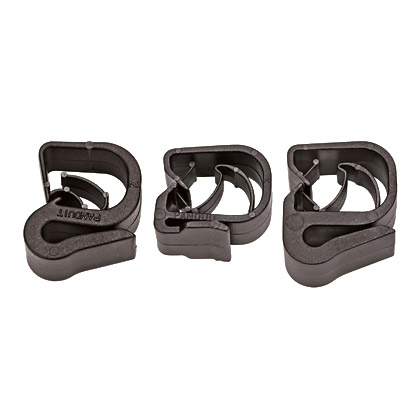

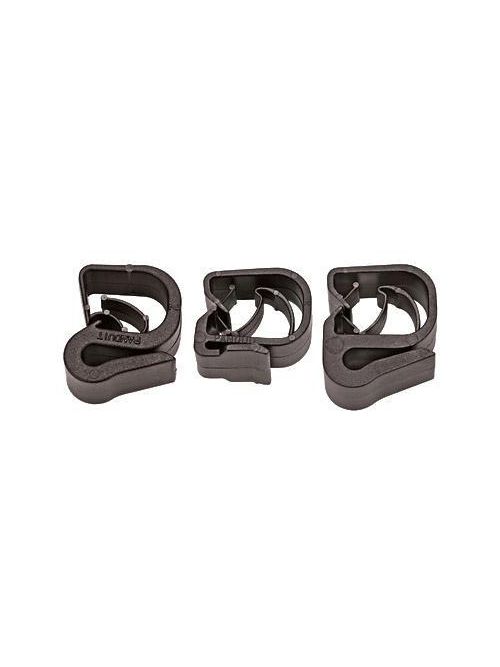

Item Long Description Panduit HCME06A12-M130 Weather Resistant Harness Edge Clips area equipped with an integral spring that holds wire bundles tightly and a wing design that provides added stability. Accommodates bundles of 0.24 0.47 (5.9mm-12.5mm) in diameter and are for use in outdoor environments. Made of Acetal Heat Stabilized Nylon, are black in color and come in packages of 1000.
GTiN 00074983735563
Width 0.55 in
Color Black
Type Nylon Edge Clip
Material Acetal Heat Stabilized
Applications Indoor
Height 0.7 in
Country of Origin DE
Pkg Qty 1000
Family Brand Name Panduit
Overall Length 0.72 in
Sub Brand Harness Clip Edge Mount
CA Prop65 Warning No
Mounting Type Clip Onto Edge
