PAN HSEC1.0-X Heat Shrink Thick Adh

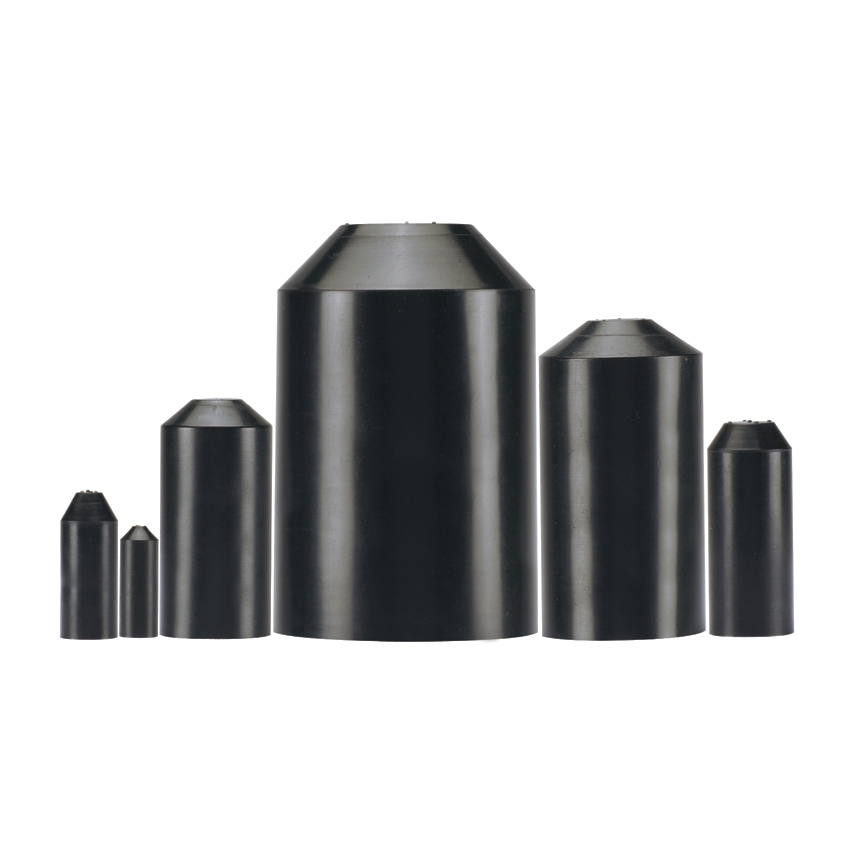

Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$9.40/ea
Usually ships within 6 to 10 Days
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # HSEC1.0-X
North Coast Part # 678669

Specifications

  • UNSPSC: 39121723
  • Product Segment: IEI
  • Product Type: Heat Shrink End Cap
  • Application: Wet Applications. Applications Include Insulating and Protecting Wires and Cables
  • Color: Black
  • Flammability Rating: HSECFR = Flame retardant
  • Material: Crosslinked Polyolefin
  • Shrink Ratio: 2.5:1
  • Standards Met: RoHS Compliant
  • Maximum Copper Conductor Size (kcmil): 211.6
  • Maximum Copper Conductor Size (AWG): 36617
  • Minimum Copper Conductor Size (AWG): 36526
  • Minimum Copper Conductor Size (kcmil): 105.53
  • Maximum Operating Temperature (°C): 125
  • Maximum Operating Temperature (°F): 257
  • Minimum Operating Temperature (°F): -40
  • Minimum Operating Temperature (°C): -40
  • Maximum Recovered Inside Diameter (mm): 11.4
  • Maximum Recovered Inside Diameter (In.): 0.45
  • Minimum Expanded Inside Diameter (mm): 29.2
  • Minimum Expanded Inside Diameter (In.): 1.15
  • Nominal Recovered Wall Thickness (mm): 2.8
  • Nominal Recovered Wall Thickness (In.): 0.11
  • Overall Length (In.): 2.95
  • Overall Length (mm): 74.9

Packaging Details

  • UPC: 07498391331
  • GTIN Package: 00074983913312
  • Standard Package Volume Ft3: 0.0705
  • Standard Package Weight Pounds: 0.3150
  • Std Package Height In: 3.15
  • Std Package Height MM: 80.01
  • Std Package Length In: 8.1
  • Std Package Length MM: 205.74
  • Std Package Width In: 7.75
  • Std Package Width MM: 196.85
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 10
  • GTIN Carton: 50074983913317
  • Standard Carton Volume Ft3: 0.0705
  • Standard Carton Weight Pounds: 3.1500
  • Std Carton Height In: 9.7
  • Std Carton Height MM: 246.38
  • Std Carton Length In: 14.55
  • Std Carton Length MM: 205.74
  • Std Carton Width In: 9.3
  • Std Carton Width MM: 236.22
  • Std Ctn Qty: 100
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: IN
  • RoHS Compliant: Compliant
  • EAN: 00074983913312
  • REACH Status: False
  • California Pro65 Cancer: No
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Lead Content Indicator: N
  • Restricted Use of Hazardous Substances: N
  • Hazardous Material Flag: N
  • Min Order Qty: 10
  • Pallet Quantity: 6,000
  • Pallet Volume: 42.304688
  • Pallet Weight: 189.0000

Overview

GTiN 00074983913312
Color Black
Type Heat Shrink End Cap
Thickness 0.11 IN
Material Polyolefin
Shrink Ratio 2.5:1
Country of Origin IN
Pkg Qty 10
Family Brand Name Panduit
Outside Diameter 1.15 in
Max Operating Temperature 257 degrees F
Overall Length 2.95 in
Inside Diameter 0.450 IN
Min Operating Temperature -40 degrees F
CA Prop65 Warning No
Product UPC 07498391331
UNSPSC 39121723
