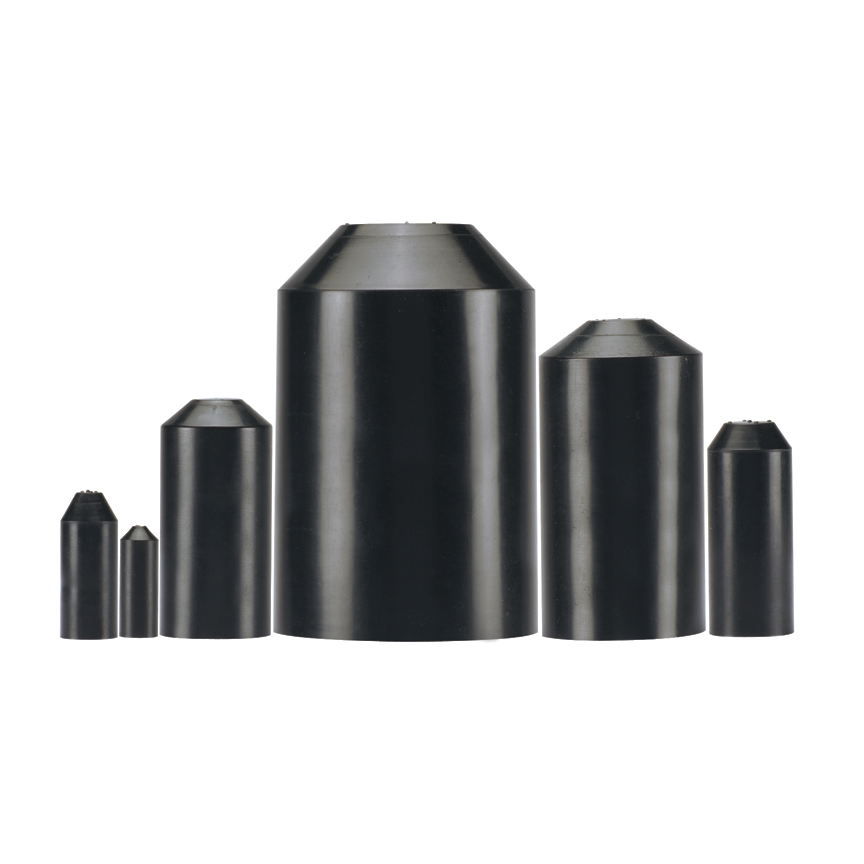

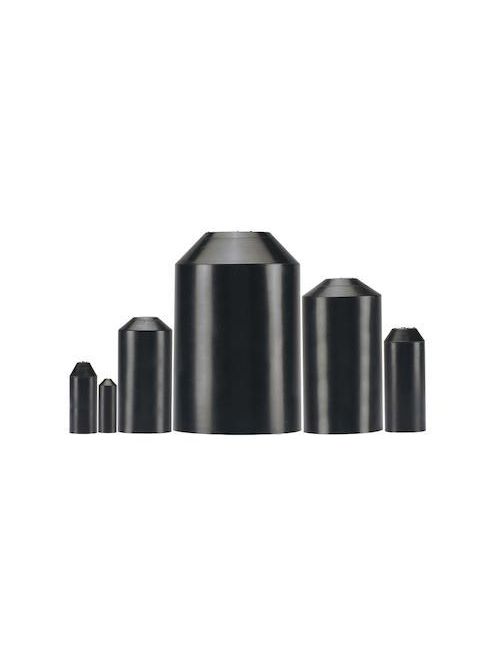

Panduit HSEC4.0-2 4.1 Inch Thick Adhesive Heat Shrink End Cap
$25.22/ea
Usually ships within 6 to 10 Days
Adding...
Order in multiples of 2 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # HSEC4.0-2
North Coast Part # 678671

Specifications

  • UNSPSC: 39121723
  • Product Segment: IEI
  • Application: Wet Applications. Applications Include Insulating and Protecting Wires and Cables
  • Color: Black
  • Flammability Rating: HSECFR = Flame retardant
  • Material: Crosslinked Polyolefin
  • Shrink Ratio: 2.5:1
  • Standards Met: RoHS Compliant
  • Maximum Copper Conductor Size (AWG): 13.7/0
  • Maximum Copper Conductor Size (kcmil): 2000
  • Minimum Copper Conductor Size (AWG): 13.7/0
  • Minimum Copper Conductor Size (kcmil): 2000
  • Maximum Operating Temperature (°F): 257
  • Maximum Operating Temperature (°C): 125
  • Minimum Operating Temperature (°C): -40
  • Minimum Operating Temperature (°F): -40
  • Maximum Recovered Inside Diameter (mm): 45.2
  • Maximum Recovered Inside Diameter (In.): 1.78
  • Minimum Expanded Inside Diameter (In.): 3.92
  • Minimum Expanded Inside Diameter (mm): 99.6
  • Nominal Recovered Wall Thickness (In.): 0.15
  • Nominal Recovered Wall Thickness (mm): 3.8
  • Overall Length (In.): 6.3
  • Overall Length (mm): 160

Packaging Details

  • UPC: 07498340699
  • GTIN Package: 00074983406999
  • Standard Package Volume Ft3: 0.2640
  • Standard Package Weight Pounds: 0.7200
  • Std Package Height In: 14
  • Std Package Height MM: 355.6
  • Std Package Length In: 14
  • Std Package Length MM: 355.6
  • Std Package Width In: 1.5
  • Std Package Width MM: 38.1
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 2
  • GTIN Carton: 50074983406994
  • Standard Carton Volume Ft3: 0.2640
  • Standard Carton Weight Pounds: 3.6000
  • Std Carton Height In: 10.91
  • Std Carton Height MM: 277.114
  • Std Carton Length In: 14.46
  • Std Carton Length MM: 355.6
  • Std Carton Width In: 14.46
  • Std Carton Width MM: 367.284
  • Std Ctn Qty: 10
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: IN
  • RoHS Compliant: Compliant
  • EAN: 00074983406999
  • NLD HS Code: 3917400099000000000000
  • USA HS Code: 3926909985000000000000
  • USA HS Code 10digit: 3926909985
  • ECCN Commodity Code: EAR99
  • REACH Status: False
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Hazardous Material Flag: N
  • Min Order Qty: 2

Overview

UPC 07498340699
GTiN 00074983406999
Color Black
Type Heat Shrink End Cap
Thickness 0.15 IN
Material Crosslinked Polyolefin
Shrink Ratio 2.5:1
Country of Origin IN
Pkg Qty 2
Family Brand Name Panduit
Carton Qty 10
Outside Diameter 4.14 in
Max Operating Temperature 257 degrees F
Overall Length 6.3 in
Inside Diameter 1.78 IN
Min Operating Temperature -40 degrees F
