Panduit HST0.8-6-XY .8 Inch (20.3mm) Thick Wall Adhesive Lined Heat Shrink Tubing
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$8.82/ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # HST0.8-6-XY
North Coast Part # 604712

Specifications

  • Product Segment: IEI
  • Note: HST0.8-6-XY replaces HST0.8-6-X
  • Product Type: Heat Shrink
  • Adhesive Lined: Yes
  • Color: Black
  • Material: Adhesive Lined Cross-Linked Polyolefin
  • Maximum Operating Temperature (°C): 110
  • Maximum Operating Temperature (°F): 230
  • Minimum Operating Temperature (°F): -67
  • Minimum Operating Temperature (°C): -55
  • Nominal Diameter (mm): 19.1
  • Nominal Diameter (In.): 0.75
  • Sub Brand: Wet-Shrink™
  • Nominal Recovered Wall Thickness (In.): 0.09
  • Nominal Recovered Wall Thickness (mm): 2.3
  • Overall Length (In.): 6
  • Overall Length (ft.): 0.5
  • Overall Length (m): 0.152
  • Overall Length (mm): 152.4
  • Resistance Properties: Outer wall is flame retardant; Suitable for wet locations; Suitable for outdoor, direct sunlight applications
  • Standards Met: UL224 VW-1; UL/UR: E342365; UL Listed: E173379; CSA: 244528; Mil Spec: AMS-DTL-23053/15
  • Shrink Ratio: 3:1
  • Shrink Temperature (°C): 120
  • Shrink Temperature (°F): 248
  • Maximum Recovered Inside Diameter (mm): 5.6
  • Maximum Recovered Inside Diameter (In.): 0.22
  • Minimum Expanded Inside Diameter (mm): 19.1
  • Minimum Expanded Inside Diameter (In.): 0.75
  • Application: For Wet Locations; Insulating and protecting wires and cables; Suitable for direct burial

Packaging Details

  • UPC: 07498310725
  • GTIN Package: 00074983107254
  • Standard Package Volume Ft3: 0.0705
  • Standard Package Weight Pounds: 0.3770
  • Std Package Height In: 2.2
  • Std Package Height MM: 55.88
  • Std Package Length In: 8
  • Std Package Length MM: 203.2
  • Std Package Width In: 7.65
  • Std Package Width MM: 194.31
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 10
  • GTIN Carton: 50074983107259
  • Standard Carton Volume Ft3: 0.0705
  • Standard Carton Weight Pounds: 3.7700
  • Std Carton Height In: 9.75
  • Std Carton Height MM: 247.65
  • Std Carton Length In: 14.3
  • Std Carton Length MM: 203.2
  • Std Carton Width In: 9.15
  • Std Carton Width MM: 232.41
  • Std Ctn Qty: 100
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: CA
  • RoHS Compliant: Compliant
  • EAN: 00074983107254
  • REACH Status: False
  • California Pro65 Cancer: No
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Lead Content Indicator: N
  • Restricted Use of Hazardous Substances: N
  • Hazardous Material Flag: N
  • Min Order Qty: 10

Overview

UPC 07498310725

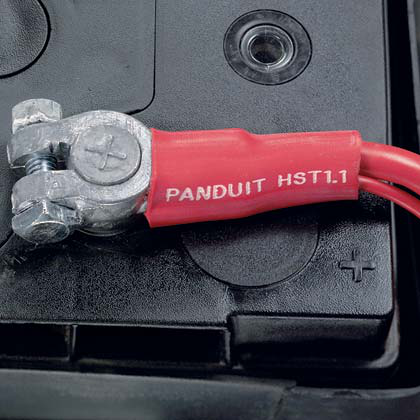

Item Long Description The HST0.8-6-XY Thick Wall Heat Shrink features an adhesive lined inner wall that seals and provides excellent protection against moisture. Applications include insulating and protecting wires/cables in outdoor, wet locations. Thick wall for direct burial. Voltage rating: UL 486D Listed for 600 V 90C continuous use. Shrink ratio: 3:1. Temperature range: -67F to 230F (-55C to 110C). Cross-linked Polyolefin. 0.75" (19.1 mm) dia. 6.0" (152.4 mm) length. Color Black. 10 per package.
GTiN 00074983107254
Color Black
Type Heat Shrink
Thickness 2.3 mm
Shrink Ratio 3:1
Country of Origin CA
Pkg Qty 10
Family Brand Name Panduit
Outside Diameter 19.1 mm
Max Operating Temperature 230 degrees F
Overall Length 0.49 ft
Inside Diameter 5.6 mm
Min Operating Temperature -67 degrees F
Sub Brand Wet-Shrink
CA Prop65 Warning No
Material Highly Flame Retardant Adhesive Lined Cross-Linked Polyolefin
