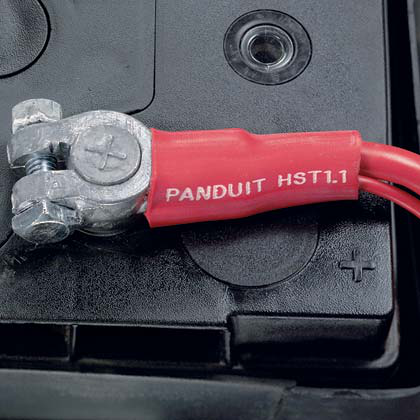

PAN HST1.1-6-XY HeatShrinkThickAdh,
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$12.40/ea
Usually ships within 6 to 10 Days
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # HST1.1-6-XY
North Coast Part # 599428

Specifications

  • UNSPSC: 39121723
  • Product Segment: IEI
  • Product Type: Heat Shrink
  • Note: HST1.1-6-XY replaces HST1.1-6-X
  • Color: Black
  • Material: Highly Flame Retardant Adhesive Lined Cross-Linked Polyolefin
  • Maximum Operating Temperature (°C): 110
  • Maximum Operating Temperature (°F): 230
  • Minimum Operating Temperature (°F): -67
  • Minimum Operating Temperature (°C): -55
  • Nominal Recovered Wall Thickness (mm): 3
  • Sub Brand: Wet-Shrink
  • Nominal Recovered Wall Thickness (In.): 0.12
  • Overall Length (In.): 6
  • Overall Length (ft.): 0.49
  • Overall Length (m): 0.2
  • Overall Length (mm): 152.4
  • Shrink Ratio: 3:1
  • Shrink Temperature (°F): 248
  • Shrink Temperature (°C): 120
  • Maximum Recovered Inside Diameter (In.): 0.39
  • Maximum Recovered Inside Diameter (mm): 9.5
  • Minimum Expanded Inside Diameter (mm): 27.9
  • Minimum Expanded Inside Diameter (In.): 1.1

Packaging Details

  • UPC: 07498310733
  • GTIN Package: 00074983107339
  • Standard Package Volume Ft3: 0.1320
  • Standard Package Weight Pounds: 0.7000
  • Std Package Height In: 3.9
  • Std Package Height MM: 99.06
  • Std Package Length In: 11.9
  • Std Package Length MM: 302.26
  • Std Package Width In: 8.2
  • Std Package Width MM: 208.28
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 10
  • GTIN Carton: 50074983107334
  • Standard Carton Volume Ft3: 0.1320
  • Standard Carton Weight Pounds: 7.0000
  • Std Carton Height In: 11.15
  • Std Carton Height MM: 283.21
  • Std Carton Length In: 14.55
  • Std Carton Length MM: 302.26
  • Std Carton Width In: 14.45
  • Std Carton Width MM: 367.03
  • Std Ctn Qty: 100
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: CA
  • RoHS Compliant: Compliant
  • EAN: 00074983107339
  • REACH Status: False
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Hazardous Material Flag: N
  • Min Order Qty: 10
  • Pallet Quantity: 3,600
  • Pallet Volume: 47.524778
  • Pallet Weight: 252.0000

Overview

UPC 07498310733
Item Long Description Thick wall adhesive lined, 1.1" (27.9mm) diameter, 6.0" (152.4mm) length, adhesive lined black cross-linked polyolefin, 10 pc. package quantity.
GTiN 00074983107339
Color Black
Type Heat Shrink
Thickness 0.12 IN
Shrink Ratio 3:1
Country of Origin CA
Pkg Qty 10
Family Brand Name Panduit
Outside Diameter 1.1 in
Max Operating Temperature 230 degrees F
Overall Length 0.49 ft
Inside Diameter 0.375 IN
Min Operating Temperature -67 degrees F
Sub Brand Wet-Shrink
Material Highly Flame Retardant Adhesive Lined Cross-Linked Polyolefin
UNSPSC 39121723
