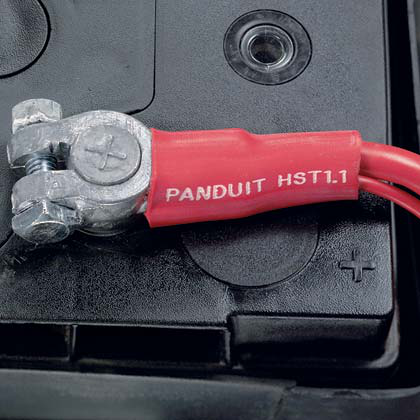

Panduit HST2.0-48-2Y 2 Inch (50.8 mm) Diameter Heat Shrink Tubing
$79.68/ea
Adding...
Order in multiples of 2 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # HST2.0-48-2Y
North Coast Part # 549796

Specifications

  • Product Segment: IEI
  • Note: HST2.0-48-2Y replaces HST2.0-48-2
  • Product Type: Heat Shrink
  • Adhesive Lined: Yes
  • Color: Black
  • Material: Adhesive Lined Cross-Linked Polyolefin
  • Maximum Operating Temperature (°F): 230
  • Maximum Operating Temperature (°C): 110
  • Minimum Operating Temperature (°C): -55
  • Minimum Operating Temperature (°F): -67
  • Nominal Diameter (In.): 2
  • Nominal Diameter (mm): 50.8
  • Sub Brand: Wet-Shrink™
  • Nominal Recovered Wall Thickness (mm): 4.1
  • Nominal Recovered Wall Thickness (In.): 0.16
  • Overall Length (In.): 48
  • Overall Length (ft.): 4
  • Overall Length (m): 1.22
  • Overall Length (mm): 1219.2
  • Resistance Properties: Outer wall is flame retardant; Suitable for wet locations; Suitable for outdoor, direct sunlight applications
  • Standards Met: UL224 VW-1; UL/UR: E342365; UL Listed: E173379; CSA: 244528; Mil Spec: AMS-DTL-23053/15
  • Shrink Ratio: 3:1
  • Shrink Temperature (°F): 248
  • Shrink Temperature (°C): 120
  • Maximum Recovered Inside Diameter (mm): 16.9
  • Maximum Recovered Inside Diameter (In.): 0.67
  • Minimum Expanded Inside Diameter (mm): 50.8
  • Minimum Expanded Inside Diameter (In.): 2
  • Application: For Wet Locations; Insulating and protecting wires and cables; Suitable for direct burial

Packaging Details

  • UPC: 07498310743
  • GTIN Package: 00074983107438
  • Standard Package Volume Ft3: 0.4658
  • Standard Package Weight Pounds: 2.7500
  • Std Package Height In: 2
  • Std Package Height MM: 50.8
  • Std Package Length In: 48.5
  • Std Package Length MM: 1231.9
  • Std Package Width In: 5.5
  • Std Package Width MM: 139.7
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 2
  • GTIN Carton: 50074983107433
  • Standard Carton Volume Ft3: 0.4658
  • Standard Carton Weight Pounds: 11.0000
  • Std Carton Height In: 8
  • Std Carton Height MM: 203.2
  • Std Carton Length In: 50.9
  • Std Carton Length MM: 1231.9
  • Std Carton Width In: 8
  • Std Carton Width MM: 203.2
  • Std Ctn Qty: 8
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: CA
  • RoHS Compliant: Compliant
  • EAN: 00074983107438
  • REACH Status: False
  • California Pro65 Cancer: No
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Lead Content Indicator: N
  • Restricted Use of Hazardous Substances: N
  • Hazardous Material Flag: N
  • Min Order Qty: 2

Categories

Overview

UPC 07498310743
GTiN 00074983107438
Color Black
Type Flame Retardant
Thickness 4.1 mm
Shrink Ratio 3:1
Country of Origin CA
Pkg Qty 2
Family Brand Name Panduit
Carton Qty 8
Outside Diameter 50.8 mm
Max Operating Temperature 230 degrees F
Overall Length 4 ft
Inside Diameter 16.9 mm
Min Operating Temperature -67 degrees F
Sub Brand Wet-Shrink
CA Prop65 Warning No
Material Highly Flame Retardant Adhesive Lined Cross-Linked Polyolefin
Temperature Rating -55 to 110 C
