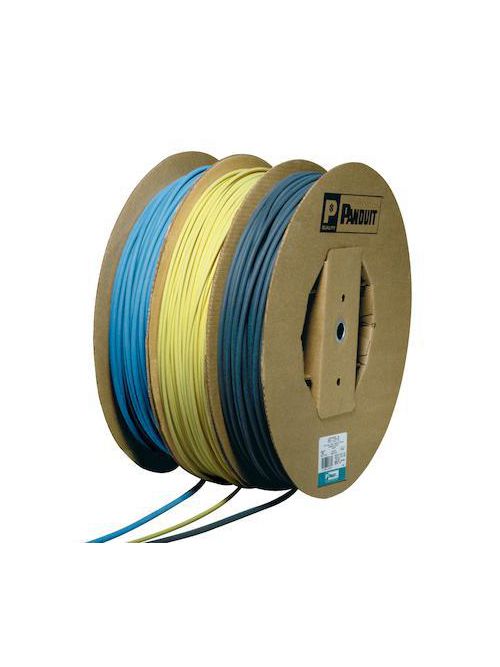

PAN HSTT25-D10 HeatShrinkThn,.25"Di

Specifications

• Type: DRY-SHRINK Thin Wall Heat Shrink
• Flammability Rating: —
• Style: 500 Ft. Reel
• Color: White
• Length (ft.): 500
• Application: For Dry Locations
• Brand Name: Panduit
• Sub Brand: Type HSTT
• Material: Flame retardant polyolefin cross-linked except clear
• Length (m): 152.4
• Order Multiple Quantity Each: 1
• Military Specification: AMS-DTL-23053/5 Class 1 (material performance only)
• Order Min Qty Each: 1

Packaging Details

• UNSPSC Piece Desription: EACH
• Std Carton Height MM: 340.36
• Std Carton Length MM: 548.64
• Sell Pkg Qty 1: 1
• Std Package Height MM: 170.18
• Sell Pack Packaging Description: CTN
• UNSPSC Carton UOM: CT
• Std Carton Width MM: 533.4
• Std Package Length: 21.6
• Ship Pack Packaging Description: CTN
• Std Package Width: 21
• GTIN Package: 00074983915521
• UNSPSC Piece UOM: EA
• Std Carton Height: 13.4
• GTIN Carton: 50074983915526
• Std Package Length MM: 548.64
• UNSPSC Package Description: PACKAGE
• Std Carton Length: 21.6
• Std Carton Width: 21
• Std Package Width MM: 533.4
• Std Package Height: 6.7
• UNSPSC Package UOM: PK
• UNSPSC Carton Description: CARTON
• Part Number Full UPC: 7498391552
• Minimum Order Quantity: 1
• Standard Package Quantity: 1
• Stanard Carton Quantity: 2
• Standard Package Weight: 4.7
• Standard Carton Weight: 9.4

Certifications & Approvals

• ARRA Compliant: N
• MSDS Indicator: Y
• CE Compliant: No
• FIFRA Indicator: N
• Buy American Compliant: N
• CE Marking: No
• RoHS Compliancy Status: Compliant
• CSA Certified: Yes
• Ozone Depleting Compounds: N
• ECCN Commodity Code: EAR99
• UL Recognized: Yes
• UL Listed: No

Additional Specifications

• Country of Origin Description: Korea Republic of
• Hazardous Material Flag: N
• Min. Expanded I.D. (In.): 0.25
• UNSPSC: 39121723
• Length Per Reel (ft.): 500
• Nominal Recovered Wall Thickness (mm): 0.6
• Unit Weight: 4.7
• Country of Origin 2Digit: KR
• Shelf Life: 1440
• Nominal Diameter / Size (mm): 6.4
• Master Pack Packaging Description: ROL
• UOM EA Pk: EA
• NMFC Rate: 70
• Shrink Ratio: 2:1
• Nominal Diameter (In.): 0.25
• Max. Recovered I.D. (mm): 3.2
• Model (Design): Thin-walled
• Master Pack Quantity: 2
• Min. Expanded I.D. (mm): 6.4
• Lowest Level UOM: FT
• Max. Recovered I.D. (In.): 0.12
• MSDS Doc Name: heat-shrinkable-tubing-msds.pdf
• Product Group Assignment: Abrasion Protection
• Gross Volume UOM: CU
• Nominal Diameter / Size: 0.250
• Unit Volume: 1.766999
• Nominal Recovered Wall Thickness (In.): 0.025
• Temperature Range: -67°F - 275°F (-55°C - 135°C)
• Length Per Reel (m): 152.4
