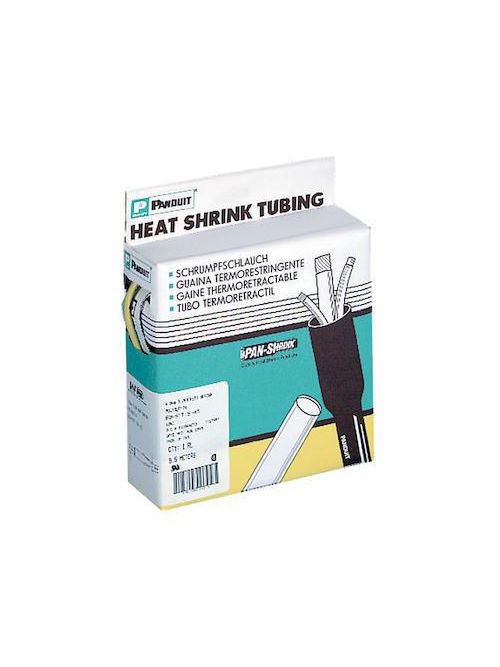

PAN HSTT50-QC HeatShrinkThn,.50"Dia

Specifications

• Type: DRY-SHRINK Thin Wall Heat Shrink
• Military Specification: AMS-DTL-23053/5 Class 2 (material performance only)
• Material: Polyolefin cross-linked
• Length (ft.): 25
• Order Multiple Quantity Each: 1
• Color: Clear
• Flammability Rating: —
• Length (m): 7.6
• Brand Name: Panduit
• Application: For Dry Locations
• Style: 25 Ft. Reel
• Order Min Qty Each: 1
• Sub Brand: Type HSTT

Documents

MSDS

Part Drawings

Selection Guides

Packaging Details

• UNSPSC Package UOM: PK
• UNSPSC Piece UOM: EA
• Std Carton Length MM: 345.44
• Std Carton Height: 9.9
• Std Carton Height MM: 251.46
• Std Package Width: 2.3
• Sell Pack Packaging Description: CTN
• Std Package Height: 6.7
• Sell Pkg Qty 1: 1
• Std Carton Width MM: 241.3
• UNSPSC Piece Desription: EACH
• GTIN Carton: 50074983905848
• Std Package Width MM: 58.42
• UNSPSC Package Description: PACKAGE
• Std Package Length: 6.6
• Std Carton Width: 9.5
• UNSPSC Carton Description: CARTON
• GTIN Package: 00074983905843
• Ship Pack Packaging Description: CTN
• Std Carton Length: 13.6
• Std Package Height MM: 170.18
• Std Package Length MM: 167.64
• UNSPSC Carton UOM: CT
• Part Number Full UPC: 7498390584
• Minimum Order Quantity: 1
• Standard Package Quantity: 1
• Stanard Carton Quantity: 10
• Standard Package Weight: 0.50539999999999996
• Standard Carton Weight: 5.0540000000000003

Certifications & Approvals

• RoHS Compliancy Status: Compliant
• Buy American Compliant: N
• CSA Certified: —
• Ozone Depleting Compounds: N
• ARRA Compliant: N
• MSDS Indicator: Y
• UL Listed: No
• ECCN Commodity Code: EAR99
• FIFRA Indicator: N
• CE Marking: No
• CE Compliant: No
• UL Recognized: No

Additional Specifications

• Min. Expanded I.D. (mm): 12.7
• NMFC Rate: 70
• Max. Recovered I.D. (In.): 0.25
• Unit Volume: .0615162
• Model (Design): Thin-walled
• UNSPSC: 39121723
• Min. Expanded I.D. (In.): 0.50
• Shrink Ratio: 2:1
• Shelf Life: 1440
• Lowest Level UOM: FT
• Nominal Recovered Wall Thickness (mm): 0.6
• Parts Available: N
• Nominal Diameter / Size (mm): 12.7
• Master Pack Quantity: 10
• UOM EA Pk: EA
• Unit Weight: .5054
• Master Pack Packaging Description: ROL
• Hazardous Material Flag: N
• Nominal Diameter / Size: 0.500
• Max. Recovered I.D. (mm): 6.4
• Country of Origin 2Digit: KR
• Length Per Reel (m): 7.6
• Nominal Diameter (In.): 0.5
• Nominal Recovered Wall Thickness (In.): 0.025
• Temperature Range: -67°F - 275°F (-55°C - 135°C)
• MSDS Doc Name: heat-shrinkable-tubing-msds.pdf
• Country of Origin Description: Korea Republic of
• Gross Volume UOM: CU
• Product Group Assignment: Abrasion Protection
