Panduit HSTT75-48-5 .75 Inch 19.0 mm Diameter Black Thin Wall Heat Shrink Tubing
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$7.15/ea
Usually ships within 6 to 10 Days
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # HSTT75-48-5
North Coast Part # 16494

Specifications

  • Product Segment: IEI
  • Product Type: Heat Shrink
  • Adhesive Lined: No
  • Color: Black
  • Material: Cross-Linked Polyolefin
  • Maximum Operating Temperature (°C): 135
  • Maximum Operating Temperature (°F): 275
  • Minimum Operating Temperature (°F): -67
  • Minimum Operating Temperature (°C): -55
  • Nominal Diameter (In.): 0.75
  • Nominal Diameter (mm): 19.1
  • Sub Brand: Dry-Shrink™
  • Nominal Recovered Wall Thickness (mm): 0.8
  • Nominal Recovered Wall Thickness (In.): 0.03
  • Overall Length (In.): 48
  • Overall Length (ft.): 4
  • Overall Length (mm): 1219.2
  • Overall Length (m): 1.22
  • Resistance Properties: Flame Retardant
  • Standards Met: UL: E122770; Mil Spec: AMS-DTL-23053/5 Class 1
  • Shrink Ratio: 2:1
  • Shrink Temperature (°F): 194
  • Shrink Temperature (°C): 90
  • Maximum Recovered Inside Diameter (mm): 9.5
  • Maximum Recovered Inside Diameter (In.): 0.375
  • Minimum Expanded Inside Diameter (In.): 0.75
  • Minimum Expanded Inside Diameter (mm): 19.1
  • Application: For Dry Locations; Insulating and protecting wires and cables

Packaging Details

  • UPC: 07498390594
  • GTIN Package: 00074983905942
  • Standard Package Volume Ft3: 0.1733
  • Standard Package Weight Pounds: 0.8650
  • Std Package Height In: 2.4
  • Std Package Height MM: 60.96
  • Std Package Length In: 49.4
  • Std Package Length MM: 1254.76
  • Std Package Width In: 2.6
  • Std Package Width MM: 66.04
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 5
  • Standard Carton Volume Ft3: 0.1733
  • Standard Carton Weight Pounds: 0.0000
  • Std Carton Length MM: 1254.76
  • Std Ctn Qty: 0
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: KR
  • RoHS Compliant: Compliant
  • EAN: 00074983905942
  • REACH Status: False
  • California Pro65 Cancer: No
  • Buy American Compliant: N
  • ARRA Compliant: N
  • Mercury Content Indicator: No
  • Lead Content Indicator: N
  • Restricted Use of Hazardous Substances: N
  • Hazardous Material Flag: N
  • Min Order Qty: 5

Overview

UPC 07498390594

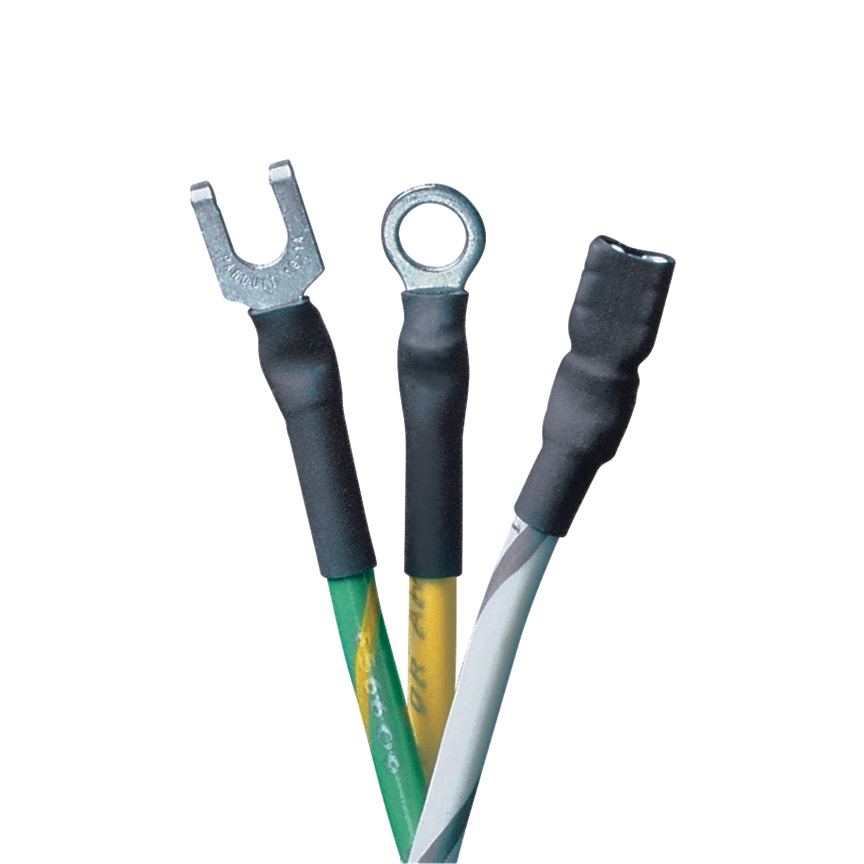

Item Long Description The HSTT75-48-5 Thin Wall Heat Shrink Tubing shrinks around wires, connectors, joints, and terminals when heated to protect against abrasion. Applications include insulating and protecting wires/cables in indoor, dry locations. Shrink ratio: 2:1. Temperature range: -67F to 275F (-55C to 135C). Flame retardant, cross-linked polyolefin. 0.75 Diameter x 4 Long (19.1 mm x 1.2 m). Color Black. 5 per package.
GTiN 00074983905942
Length 1.2 m
Color Black
Type Heat Shrink
Thickness 0.03 IN
Material Flame Retardant Polyolefin Cross-linked Except Clear
Shrink Ratio 2:1
Applications For Dry Locations
Country of Origin KR
Temperature Rating -55 to 135 C
Pkg Qty 5
Family Brand Name Panduit
Outside Diameter 0.75 in
Overall Length 4 ft
Inside Diameter 0.375 IN
Sub Brand Dry-Shrink
CA Prop65 Warning No
