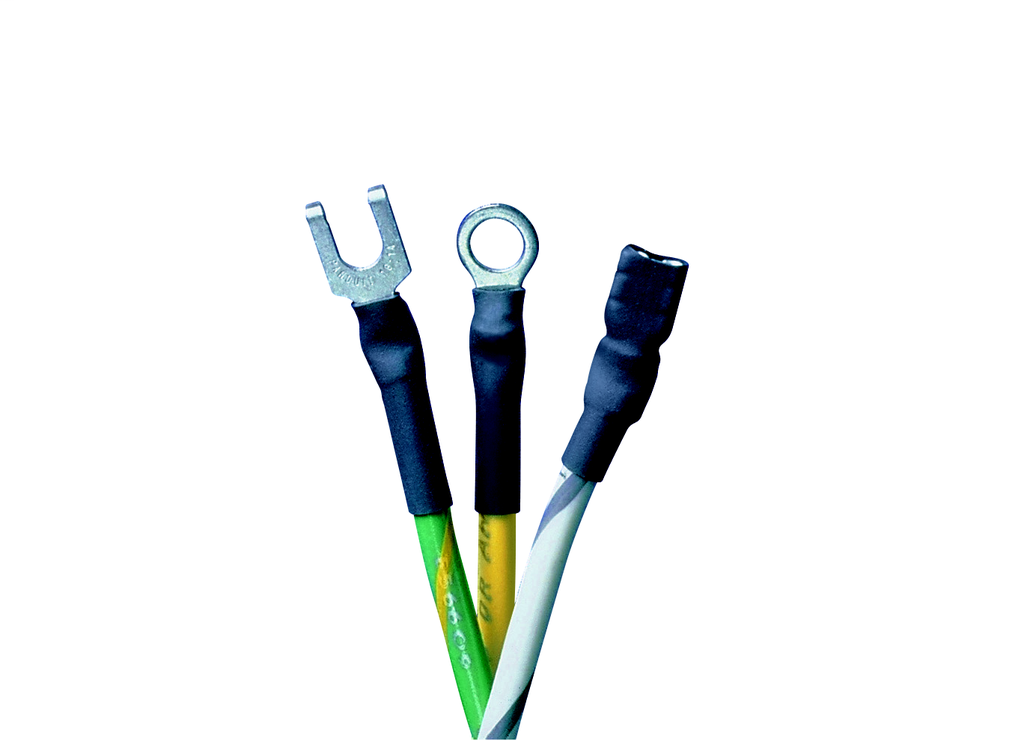

PAN HSTT75-48-CQ Heat Shrink Thin,.
$6.30/ea
Usually ships within 6 to 10 Days
Adding...
Order in multiples of 125 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # HSTT75-48-CQ
North Coast Part # 761561

Specifications

  • Flammability Rating: —
  • Brand Name: Panduit
  • Application: For Dry Locations
  • Color: Black
  • Length (ft.): 4
  • Type: DRY-SHRINK Thin Wall Heat Shrink
  • Length (m): 1.2
  • Order Multiple Quantity Each: 1
  • Material: Flame retardant polyolefin cross-linked except clear
  • Sub Brand: Type HSTT
  • Military Specification: AMS-DTL-23053/5 Class 1 (material performance only)
  • Style: 4 Ft. Pieces
  • Order Min Qty Each: 1

Packaging Details

  • Std Package Width: 10.4
  • Std Package Height MM: 264.16
  • Std Package Height: 10.4
  • Std Package Width MM: 264.16
  • Std Package Length: 50.1
  • Std Package Length MM: 1272.54
  • UNSPSC Package Description: PACKAGE
  • Ship Pack Packaging Description: CTN
  • UNSPSC Package UOM: PK
  • Sell Pkg Qty 1: 1
  • UNSPSC Piece UOM: EA
  • GTIN Package: 00074983757640
  • UNSPSC Piece Desription: EACH
  • Sell Pack Packaging Description: CTN
  • Part Number Full UPC: 7498375764
  • Minimum Order Quantity: 125
  • Standard Package Quantity: 125
  • Stanard Carton Quantity: 0
  • Standard Package Weight: 13
  • Standard Carton Weight: 0

Certifications & Approvals

  • CE Compliant: No
  • ARRA Compliant: Y
  • UL Recognized: Yes
  • Buy American Compliant: Y
  • RoHS Compliancy Status: Compliant
  • CE Marking: No
  • ECCN Commodity Code: EAR99
  • CSA Certified: Yes
  • UL Listed: No
  • MSDS Indicator: Y
  • FIFRA Indicator: N
  • Ozone Depleting Compounds: N

Additional Specifications

  • UNSPSC: 39121723
  • Hazardous Material Flag: N
  • Unit Weight: .104
  • Nominal Diameter / Size: 0.750
  • Lowest Level UOM: EA
  • Master Pack Packaging Description: BAG
  • Country of Origin 2Digit: KR
  • Country of Origin Description: Korea Republic of
  • Nominal Diameter / Size (mm): 19.1
  • Max. Recovered I.D. (In.): 0.37
  • Unit Volume: .0226852
  • Min. Expanded I.D. (mm): 19.1
  • Nominal Diameter (In.): 0.75
  • Master Pack Quantity: 1
  • Product Group Assignment: Abrasion Protection
  • Shelf Life: 1440
  • Min. Expanded I.D. (In.): 0.75
  • Max. Recovered I.D. (mm): 9.5
  • UOM EA Pk: PK
  • Gross Volume UOM: CU
  • Nominal Recovered Wall Thickness (In.): 0.030
  • NMFC Rate: 70
  • Model (Design): Thin-walled
  • Shrink Ratio: 2:1
  • Nominal Recovered Wall Thickness (mm): 0.8
  • MSDS Doc Name: heat-shrinkable-tubing-msds.pdf
  • Temperature Range: -67°F - 275°F (-55°C - 135°C)

Documents

Catalog Cut Sheets

MSDS

Part Drawings

Selection Guides

Overview

UPC 07498375764
GTiN 00074983757640
Length 4 ft
Color Black
Type Heat Shrink
Diameter 3 in
Thickness 0.8 mm
Material Flame Retardant Polyolefin Cross-Linked Except Clear
Shrink Ratio 2:1
Applications For Dry Locations
Family Brand Name Panduit
Buy American Compliant Yes
CE Compliant No
ARRA Compliant Yes
Hazmat Flag No
Outside Diameter 19.1 mm
Inside Diameter 9.5 mm
Sub Brand Dry-Shrink
