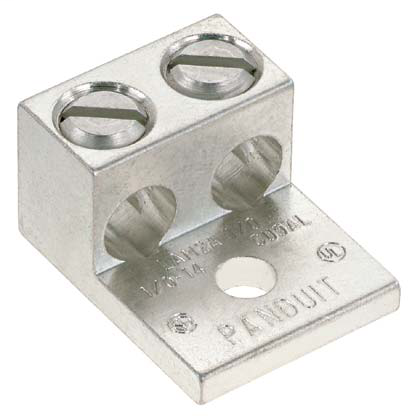

Panduit LAM2A350-12-6Y 1-Hole 2 Barrel Aluminum Mechanical Lug
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$2,074.01/c (100 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # LAM2A350-12-6Y
North Coast Part # 601294

Specifications

  • Product Segment: IEI
  • Note: LAM2A350-12-6Y replaces LAM2A350-12-6
  • Application: Stranded Aluminum or Copper Code Conductor
  • Product Type: Mechanical Connectors - Lugs
  • Base Material: Aluminum
  • Minimum Copper Conductor Size (AWG STR): 6
  • Minimum Aluminum Conductor Size (AWG): 6
  • Maximum Aluminum Conductor Size (kcmil): 350
  • Maximum Copper Conductor Size (kcmil): 350
  • Stud Hole Size (In.): 1/2
  • Stud Hole Size (mm): 12.7
  • Number of Holes: 1
  • Tongue Type: Straight Tongue
  • Tongue Angle: Straight
  • Tongue Length (mm): 44.4
  • Tongue Length (In.): 1.75
  • Tongue Thickness (mm): 7.1
  • Tongue Thickness (In.): 0.28
  • Tongue Width (In.): 1.73
  • Tongue Width (mm): 43.9
  • Overall Height (In.): 1.25
  • Overall Height (mm): 31.7
  • Overall Length (In.): 2.88
  • Overall Length (mm): 73.1
  • Overall Width (In.): 1.91
  • Overall Width (mm): 48.5
  • Barrel Type: Two Barrel
  • Barrel Length (mm): 28.7
  • Barrel Length (In.): 1.13
  • Finish/Coating: Tin-Plated
  • Standards Met: cULus Listed for use up to 600V & Temperature Rated to 90°C
  • UL Temperature Rating (°C): 90
  • Maximum Voltage (V): 600
  • Hex Size (In.): 5/16
  • Hex Size (mm): 7.9
  • Sub Brand: Pan-Lug™
  • Wrench Size (In.): 0.312
  • Wire Strip Length (mm): 28.7
  • Wire Strip Length (In.): 1.13

Packaging Details

  • UPC: 07498359269
  • GTIN Package: 00074983592692
  • Standard Package Volume Ft3: 0.0308
  • Standard Package Weight Pounds: 1.6650
  • Std Package Height In: 3.3
  • Std Package Height MM: 83.82
  • Std Package Length In: 5.75
  • Std Package Length MM: 146.05
  • Std Package Width In: 3.45
  • Std Package Width MM: 87.63
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 6
  • Standard Carton Volume Ft3: 0.0308
  • Standard Carton Weight Pounds: 0.0000
  • Std Carton Length MM: 146.05
  • Std Ctn Qty: 0
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: IN
  • RoHS Compliant: Compliant
  • EAN: 00074983592692
  • REACH Status: False
  • California Pro65 Cancer: No
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Lead Content Indicator: N
  • Restricted Use of Hazardous Substances: N
  • Hazardous Material Flag: N
  • Min Order Qty: 1

Categories

Overview

UPC 07498359269
GTiN 00074983592692
Type Mechanical Connectors - Lugs
Height 1.2 in
Country of Origin IN
Pkg Qty 6
Family Brand Name Panduit
Carton Qty 0
Overall Length 2.87 in
Sub Brand Type LAM
CA Prop65 Warning No
