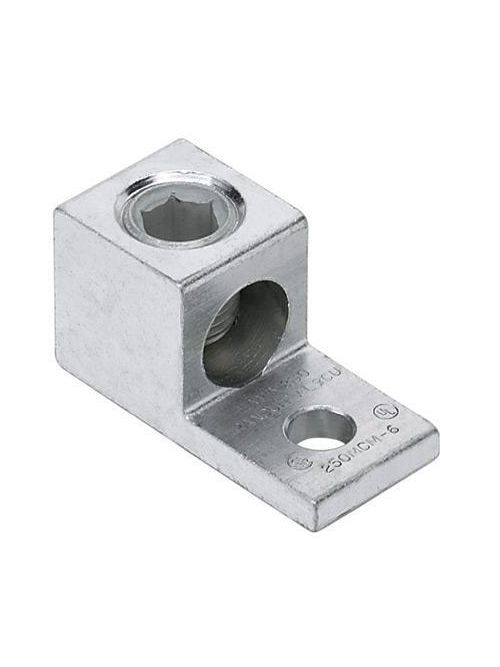

Panduit LAMA1/0-14-QY 1-Hole 1 Barrel Aluminum Mechanical Lug
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$299.72/c (100 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # LAMA1/0-14-QY
North Coast Part # 601295

Specifications

  • Product Segment: IEI
  • Application: Stranded Aluminum or Copper Code Conductor
  • Note: LAMA1/0-14-QY replaces LAMA1/0-14-Q
  • Product Type: Aluminum Mechanical Connectors, One Hole, Single Barrel - Lugs
  • Base Material: Aluminum
  • Minimum Aluminum Conductor Size (AWG): 14
  • Minimum Copper Conductor Size (AWG STR): 14
  • Maximum Copper Conductor Size (AWG STR): 1/0
  • Maximum Aluminum Conductor Size (AWG): 1/0
  • Stud Hole Size (In.): 1/4
  • Number of Holes: 1
  • Tongue Type: Straight Tongue
  • Tongue Angle: Straight
  • Tongue Length (mm): 21.3
  • Tongue Length (In.): 0.84
  • Tongue Thickness (In.): 0.19
  • Tongue Thickness (mm): 4.8
  • Tongue Width (In.): 0.62
  • Tongue Width (mm): 15.7
  • Overall Height (mm): 19.5
  • Overall Height (In.): 0.77
  • Overall Length (mm): 37.3
  • Overall Length (In.): 1.47
  • Overall Width (mm): 15.7
  • Overall Width (In.): 0.62
  • Barrel Type: Single Barrel
  • Barrel Length (In.): 0.63
  • Barrel Length (mm): 16
  • Finish/Coating: Tin-Plated
  • Standards Met: cULus Listed for use up to 600V & Temperature Rated to 90°C
  • UL Temperature Rating (°C): 90
  • Maximum Voltage (V): 600
  • Slotted Screw: Yes
  • Sub Brand: Pan-Lug™
  • Wire Strip Length (mm): 16
  • Wire Strip Length (In.): 0.63

Packaging Details

  • UPC: 07498359531
  • GTIN Package: 00074983595310
  • Standard Package Volume Ft3: 0.1680
  • Standard Package Weight Pounds: 0.9550
  • Std Package Height In: 3.35
  • Std Package Height MM: 85.09
  • Std Package Length In: 4.85
  • Std Package Length MM: 123.19
  • Std Package Width In: 3.35
  • Std Package Width MM: 85.09
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 25
  • Standard Carton Volume Ft3: 0.1680
  • Standard Carton Weight Pounds: 0.0000
  • Std Carton Length MM: 123.19
  • Std Ctn Qty: 0
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: IN
  • RoHS Compliant: Compliant
  • EAN: 00074983595310
  • REACH Status: False
  • California Pro65 Cancer: No
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Lead Content Indicator: N
  • Restricted Use of Hazardous Substances: N
  • Hazardous Material Flag: N
  • Min Order Qty: 1

Overview

UPC 07498359531
GTiN 00074983595310
Finish Tin Plated
Color Metallic
Type Single Barrel, Non-Insulated
Material Aluminum
Number of Conductors 1
Conductor Size 14-1/0 AWG
Height 0.8 in
Country of Origin IN
Tongue Type Straight
Bolt Size 6.35 mm
Temperature Rating 90 C
Pkg Qty 25
Family Brand Name Panduit
Conductor Type Aluminum and Copper
Carton Qty 0
Overall Length 1.47 in
Blade Dimensions 1.47 in L x 0.79 in H
Sub Brand Pan-Lug
CA Prop65 Warning No
Voltage 600 Volt
