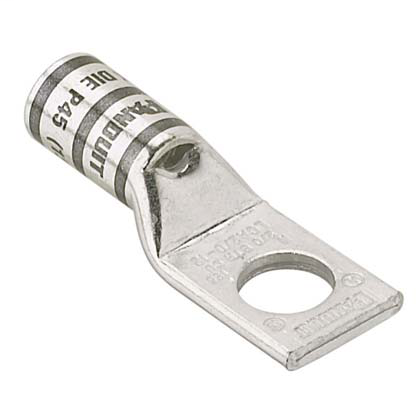

Panduit LCA1/0-38-X 1-Hole 1/0 AWG Copper Compression Lug

Specifications

• Product Segment: IEI
• Outer Diameter (In.): 0.52
• Outer Diameter (mm): 0.2
• Inside Diameter (mm): 9.9
• Inside Diameter (In.): 0.39
• Product Type: Tin-Plated Copper Compression Connectors - Lugs
• Lug Type: 1 Stud Hole Lug
• Base Material: Copper
• Sub Brand: Pan-Lug™
• Copper Code Conductor Size (AWG): 1/0
• Stud Hole Size (mm): 9.5
• Stud Hole Size (In.): 3/8
• Barrel Type: Standard Barrel with Inspection Window
• Barrel Length (In.): 0.94
• Barrel Length (mm): 23.9
• Tongue Type: Standard
• Tongue Width (In.): 0.76
• Tongue Width (mm): 19.3
• Tongue Angle: Straight
• Tongue Thickness (In.): 0.12
• Tongue Thickness (mm): 3
• Overall Length (In.): 2.08
• Overall Length (mm): 52.8
• Finish/Coating: Tin-Plated
• Standards Met: C22.2 No. 65-13, 486A-486B File #E52164
• UL Temperature Rating (°C): 90
• Maximum Voltage (kV): 35
• Color Code: Pink
• Panduit Die Index Number: P42
• T & B Die Index Number: 12
• Burndy Die Index Number: 12
• Wire Strip Length (mm): 25.4
• Wire Strip Length (In.): 1

Packaging Details

• UPC: 07498390026
• GTIN Package: 00074983900268
• Standard Package Volume Ft3: 0.0184
• Standard Package Weight Pounds: 0.7000
• Std Package Height In: 3.35
• Std Package Height MM: 85.09
• Std Package Length In: 4.7
• Std Package Length MM: 119.38
• Std Package Width In: 3.35
• Std Package Width MM: 85.09
• Std. Pkg. UOM: Piece
• UOM EA PK: PK
• Std. Pkg. Qty.: 10
• Standard Carton Volume Ft3: 0.0184
• Standard Carton Weight Pounds: 0.0000
• Std Carton Length MM: 119.38
• Std Ctn Qty: 0
• Min. Order UOM: Piece
• Country of Origin 2Digit: MX
• RoHS Compliant: Compliant
• EAN: 00074983900268
• REACH Status: False
• California Pro65 Cancer: No
• Buy American Compliant: Y
• ARRA Compliant: Y
• Mercury Content Indicator: No
• Lead Content Indicator: N
• Restricted Use of Hazardous Substances: N
• Hazardous Material Flag: N
• Min Order Qty: 1
