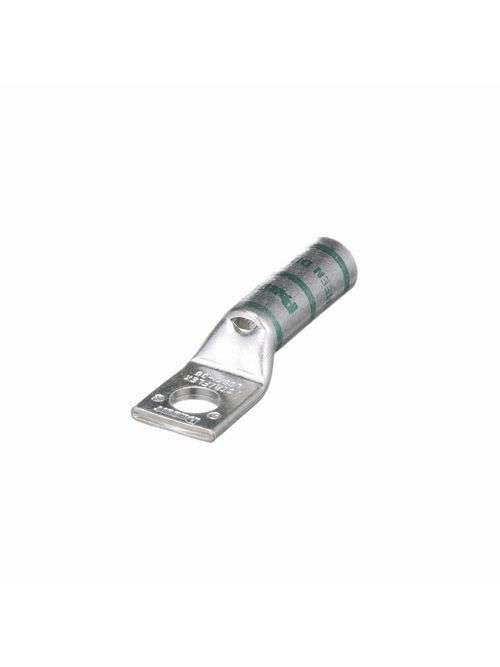

Panduit LCA1-56-E 1-Hole #1 AWG Copper Compression Lug

Specifications

• UNSPSC: 39121405
• Product Segment: IEI
• Copper Conductor Size (AWG): #1
• Copper Conductor Size (kcmil): 84
• Product Type: Tin-Plated Copper Compression Connectors - Lugs
• Sub Brand: Pan-Lug
• Stud Hole Size (mm): 7.9
• Stud Hole Size (In.): 42.491
• Barrel Type: Standard Barrel Length with Inspection Window
• Barrel Length (mm): 22.4
• Barrel Length (In.): 0.88
• Tongue Type: Standard
• Tongue Width (In.): 0.7
• Tongue Width (mm): 17.8
• Tongue Angle: Straight
• Tongue Thickness (In.): 0.11
• Tongue Thickness (mm): 2.8
• Overall Length (In.): 1.92
• Overall Length (mm): 48.8
• Standards Met: C22.2 No. 65-13, 486A-486B File #E52164
• Color Code: Green
• Panduit Die Index Number: P37
• Burndy Die Index Number: 11
• Wire Strip Length (mm): 23.8

Packaging Details

• UPC: 07498390020
• GTIN Package: 00074983900206
• Standard Package Volume Ft3: 0.0184
• Standard Package Weight Pounds: 0.9760
• Std Package Height In: 3.4
• Std Package Height MM: 86.36
• Std Package Length In: 4.6
• Std Package Length MM: 116.84
• Std Package Width In: 3.5
• Std Package Width MM: 88.9
• Std. Pkg. UOM: Piece
• UOM EA PK: PK
• Std. Pkg. Qty.: 20
• Standard Carton Volume Ft3: 0.0184
• Standard Carton Weight Pounds: 0.0000
• Std Carton Length MM: 116.84
• Std Ctn Qty: 0
• Min. Order UOM: Piece
• Country of Origin 2Digit: MX
• RoHS Compliant: Compliant
• EAN: 00074983900206
• REACH Status: False
• California Pro65 Cancer: No
• Buy American Compliant: Y
• ARRA Compliant: Y
• Mercury Content Indicator: No
• Lead Content Indicator: N
• Restricted Use of Hazardous Substances: N
• Hazardous Material Flag: N
• Min Order Qty: 1
• Pallet Quantity: 0
• Pallet Volume: 0.000000
• Pallet Weight: 0.0000
