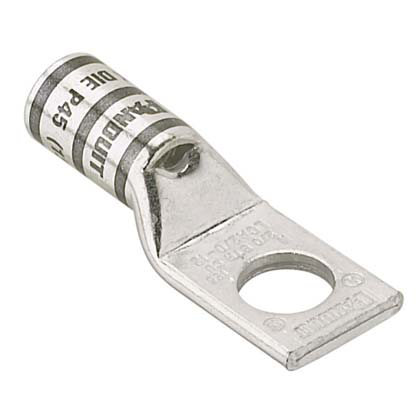

Panduit LCA2-38-Q 1-Hole #2 AWG Copper Compression Lug

Specifications

• Product Segment: IEI
• Outer Diameter (In.): 0.42
• Inside Diameter (mm): 7.87
• Outer Diameter (mm): 10.6
• Inside Diameter (In.): 0.31
• Product Type: Tin-Plated Copper Compression Connectors - Lugs
• Lug Type: 1 Stud Hole Lug
• Base Material: Copper
• Sub Brand: Pan-Lug™
• Copper Code Conductor Size (AWG): 2
• Stud Hole Size (In.): 3/8
• Stud Hole Size (mm): 9.5
• Barrel Type: Standard Barrel with Inspection Window
• Barrel Length (In.): 0.88
• Barrel Length (mm): 22.4
• Tongue Type: Standard
• Tongue Width (In.): 0.66
• Tongue Width (mm): 16.8
• Tongue Angle: Straight
• Tongue Thickness (In.): 0.1
• Tongue Thickness (mm): 2.5
• Overall Length (mm): 50
• Overall Length (In.): 1.97
• Finish/Coating: Tin-Plated
• Standards Met: C22.2 No. 65-13, 486A-486B File #E52164
• UL Temperature Rating (°C): 90
• Maximum Voltage (kV): 35
• Color Code: Brown
• Panduit Die Index Number: P33
• Burndy Die Index Number: 10
• T & B Die Index Number: 10
• Wire Strip Length (In.): 15/16
• Wire Strip Length (mm): 23.6

Packaging Details

• UPC: 07498390017
• GTIN Package: 00074983900176
• Standard Package Volume Ft3: 0.0328
• Standard Package Weight Pounds: 1.0100
• Std Package Height In: 3.35
• Std Package Height MM: 85.09
• Std Package Length In: 4.75
• Std Package Length MM: 120.65
• Std Package Width In: 3.35
• Std Package Width MM: 85.09
• Std. Pkg. UOM: Piece
• UOM EA PK: PK
• Std. Pkg. Qty.: 25
• Standard Carton Volume Ft3: 0.0328
• Standard Carton Weight Pounds: 0.0000
• Std Carton Length MM: 120.65
• Std Ctn Qty: 0
• Min. Order UOM: Piece
• Country of Origin 2Digit: MX
• RoHS Compliant: Compliant
• EAN: 00074983900176
• REACH Status: False
• California Pro65 Cancer: No
• Buy American Compliant: Y
• ARRA Compliant: Y
• Mercury Content Indicator: No
• Lead Content Indicator: N
• Restricted Use of Hazardous Substances: N
• Hazardous Material Flag: N
• Min Order Qty: 1
