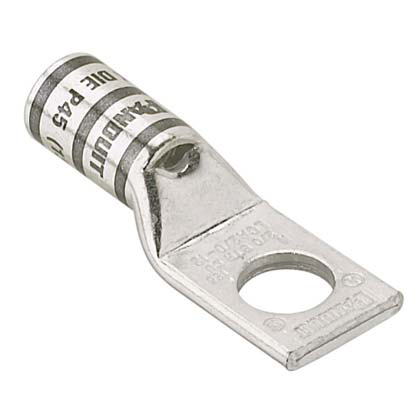

Panduit LCA2-56-Q 1-Hole #2 AWG Copper Compression Lug
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$791.73/c (100 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # LCA2-56-Q
North Coast Part # 601302

Specifications

  • Product Segment: IEI
  • Outer Diameter (mm): 10.6
  • Inside Diameter (In.): 0.31
  • Outer Diameter (In.): 0.42
  • Inside Diameter (mm): 7.87
  • Product Type: Tin-Plated Copper Compression Connectors - Lugs
  • Lug Type: 1 Stud Hole Lug
  • Base Material: Copper
  • Copper Code Conductor Size (AWG): 2
  • Sub Brand: Pan-Lug™
  • Stud Hole Size (In.): 5/16
  • Stud Hole Size (mm): 7.9
  • Barrel Type: Standard Barrel with Inspection Window
  • Barrel Length (mm): 22.4
  • Barrel Length (In.): 0.88
  • Tongue Type: Standard
  • Tongue Width (mm): 16.8
  • Tongue Width (In.): 0.66
  • Tongue Angle: Straight
  • Tongue Thickness (In.): 0.1
  • Tongue Thickness (mm): 2.5
  • Overall Length (mm): 48.3
  • Overall Length (In.): 1.9
  • Finish/Coating: Tin-Plated
  • Standards Met: C22.2 No. 65-13, 486A-486B File #E52164
  • UL Temperature Rating (°C): 90
  • Maximum Voltage (kV): 35
  • Color Code: Brown
  • Panduit Die Index Number: P33
  • T & B Die Index Number: 10
  • Burndy Die Index Number: 10
  • Wire Strip Length (mm): 23.6
  • Wire Strip Length (In.): 15/16

Packaging Details

  • UPC: 07498390016
  • GTIN Package: 00074983900169
  • Standard Package Volume Ft3: 0.0184
  • Standard Package Weight Pounds: 1.0100
  • Std Package Height In: 3.4
  • Std Package Height MM: 86.36
  • Std Package Length In: 4.7
  • Std Package Length MM: 119.38
  • Std Package Width In: 3.35
  • Std Package Width MM: 85.09
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 25
  • Standard Carton Volume Ft3: 0.0184
  • Standard Carton Weight Pounds: 0.0000
  • Std Carton Length MM: 119.38
  • Std Ctn Qty: 0
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: MX
  • RoHS Compliant: Compliant
  • EAN: 00074983900169
  • REACH Status: False
  • California Pro65 Cancer: No
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Lead Content Indicator: N
  • Restricted Use of Hazardous Substances: N
  • Hazardous Material Flag: N
  • Min Order Qty: 1
  • Pallet Quantity: 0
  • Pallet Volume: 0.000000
  • Pallet Weight: 0.0000

Categories

Overview

UPC 07498390016
Item Long Description The LCA2-56-Q Tin-Plated Copper Compression Lug, one-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90C.
GTiN 00074983900169
Size #2 AWG Code
Color Brown
Type Type LCA
Barrel Type Standard
Material Copper
Stud Size 0.3125 in
Number of Holes 1 Hole
Country of Origin MX
Angle Straight
Pkg Qty 25
Family Brand Name Panduit
Overall Length 1.9 in
Barrel Length 0.88 in
Color Coding Brown
Sub Brand Pan-Lug
CA Prop65 Warning No
Finish Tin Plated
Voltage 35000 Volt
